Trunk / Liftgate Latch: Service and Repair

LATCH

REMOVAL

1. Open decklid.

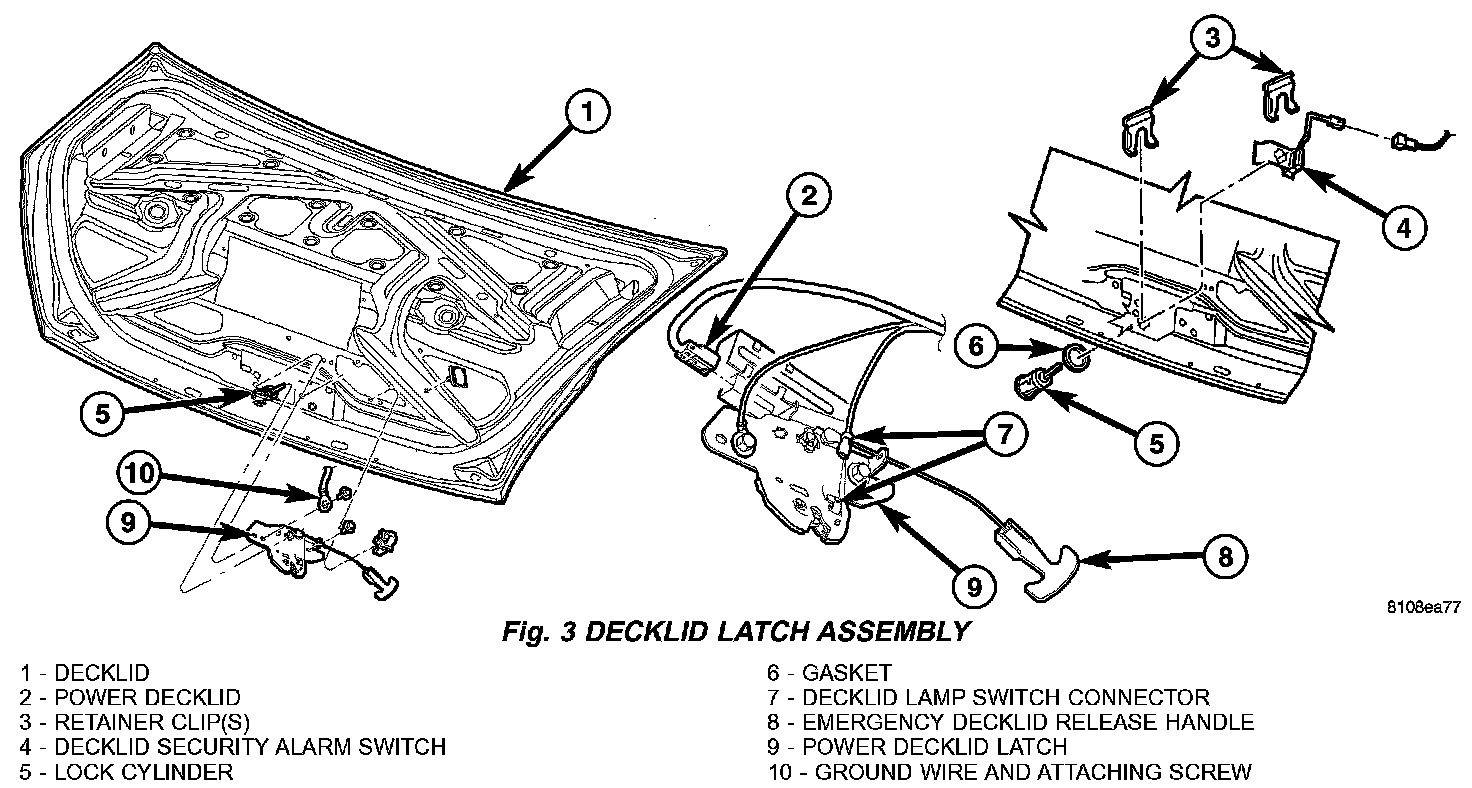

Fig. 3:

2. Remove bolts attaching decklid latch to decklid (Fig. 3).
3. Remove attaching latch from decklid.
4. Disconnect remote decklid latch release cable form decklid latch.
5. Disconnect decklid ajar switch connector from latch.
6. Remove latch from vehicle.

INSTALLATION

1. Place decklid latch into position (Fig. 3).
2. Connect remote decklid latch wire connector to decklid latch.
3. Connect decklid ajar and lamp switch connector to latch.
4. Install bolts attaching decklid latch to decklid lid.
5. Check decklid latch for proper alignment.
6. Close decklid.
