Front Bumper Cover / Fascia: Service and Repair

FRONT FASCIA

REMOVAL

1. Remove splash shield attaching screws.

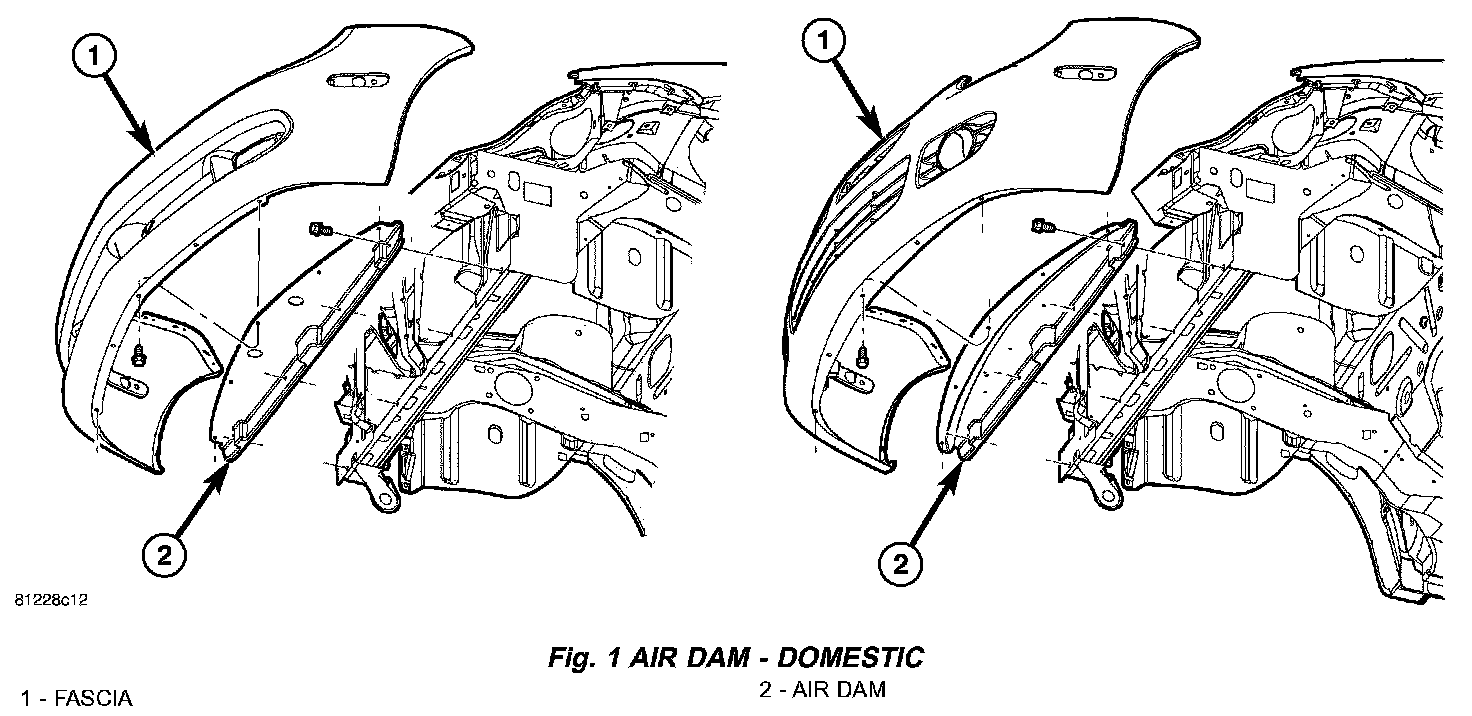

Fig. 1:

2. Remove fasteners attaching air dam to cross-member (Fig. 1).

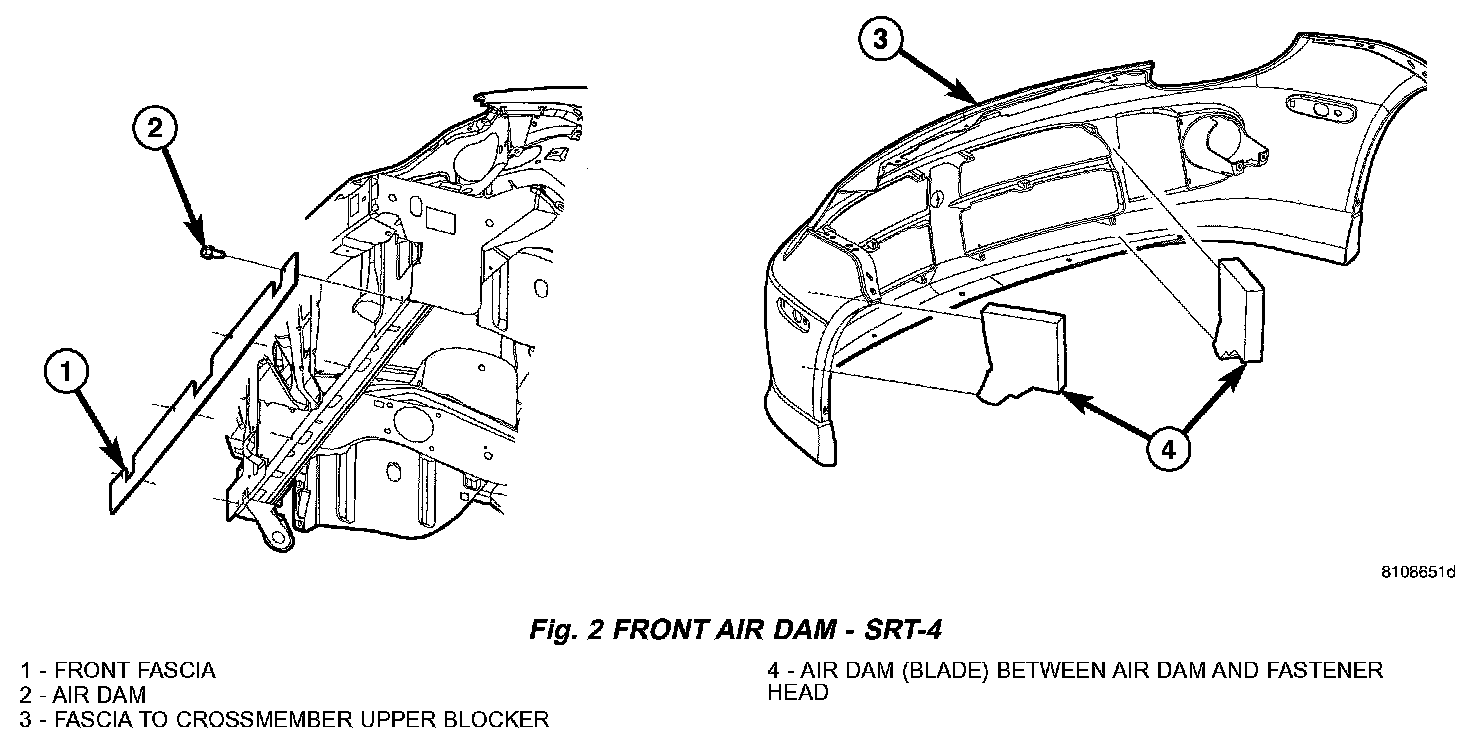

Fig. 2:

3. SRT-4 vehicle remove four attaching screws (Fig. 2).
4. Disconnect fog lamp wiring harness, if equipped.

Fig. 3:

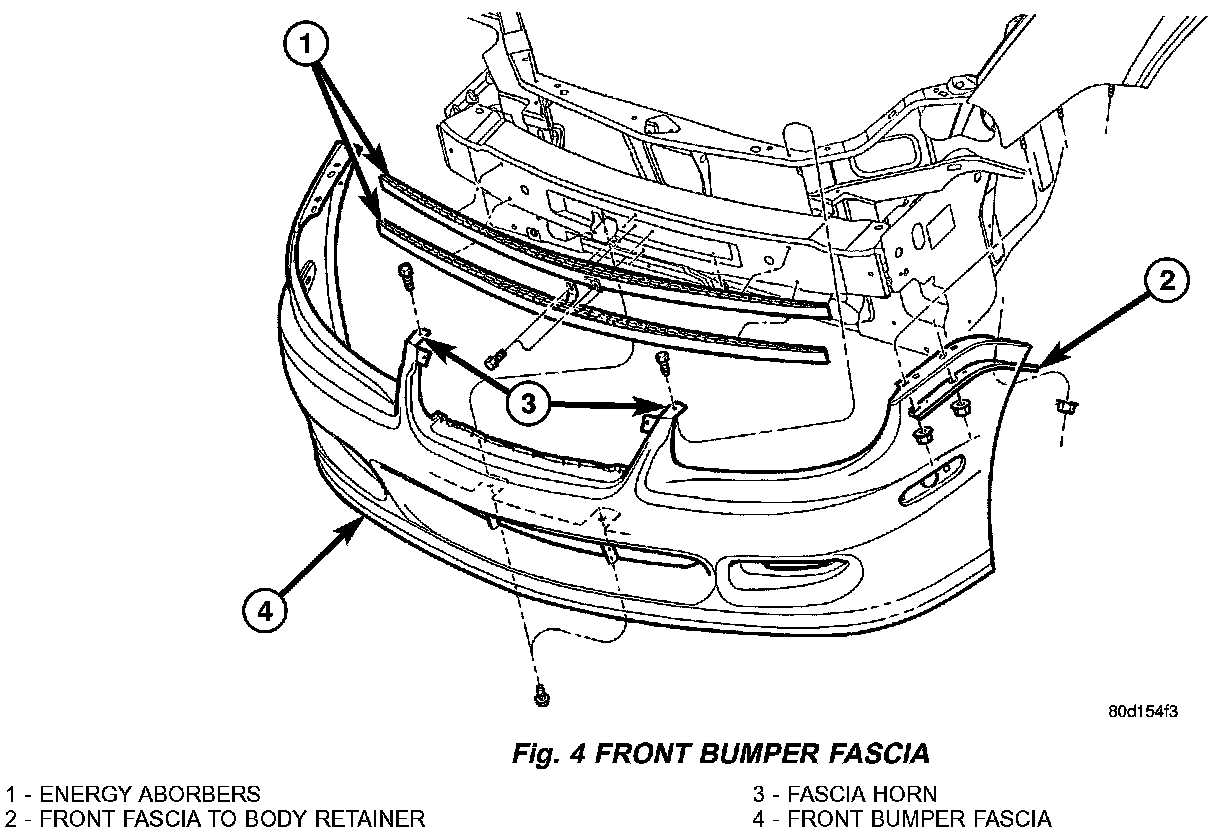

Fig. 4:

5. Remove nuts attaching front bumper fascia to bottom of fender flange. (Fig. 3), and (Fig. 4).
6. Remove fascia from vehicle.

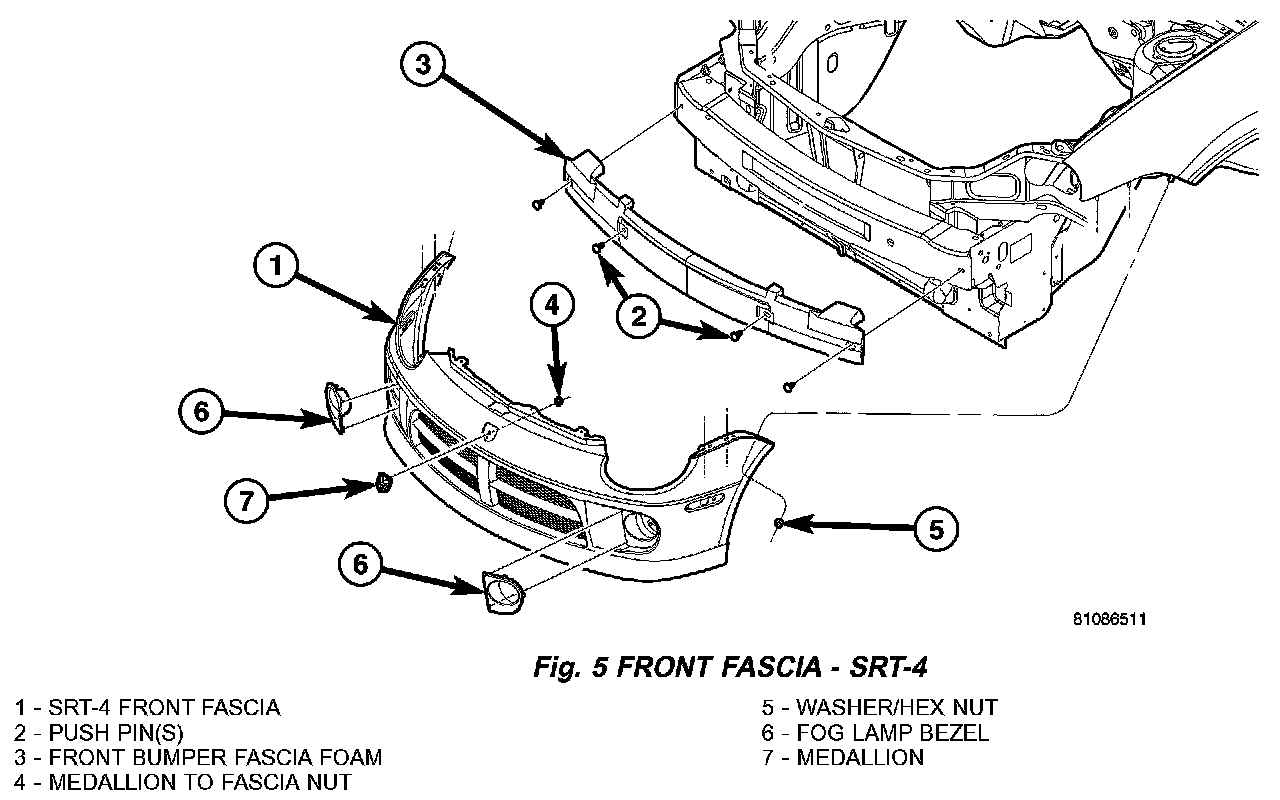

Fig. 5:

7. SRT-4 vehicle remove the fascia to crossmember upper blockers from the fascia (Fig. 5).

INSTALLATION

1. SRT-4 vehicle place into position the fascia to crossmember upper blockers to the fascia (Fig. 5).
2. Position fascia on vehicle , (Fig. 3) and (Fig. 4).
3. Install nuts attaching front bumper fascia to bottom of fender flange.
4. Attach fascia horns to radiator crossmember.
5. SRT-4 vehicle install air dam four attaching screws (Fig. 2).
6. Install air dam to crossmember fasteners (Fig. 1).
7. Install splash shield attaching screws.
8. Connect fog lamp wiring harness.
