Rear

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove Rear Seat Cushion.
3. Remove rear seat back.
4. Remove rear shelf panel.

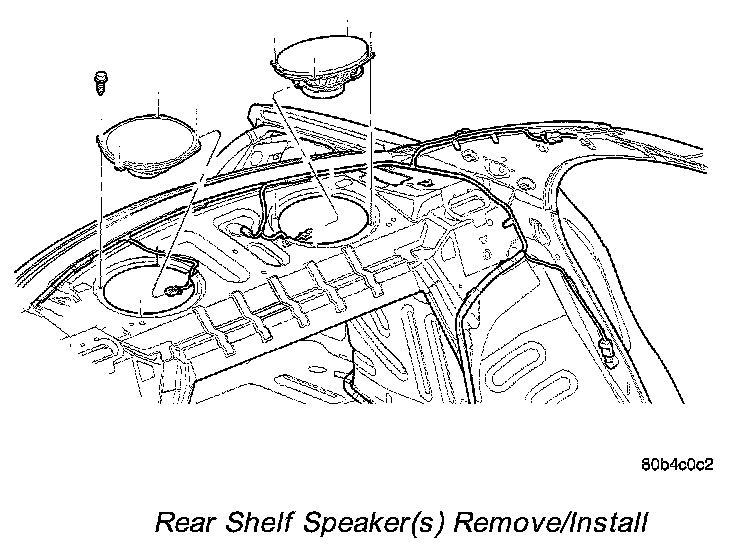

Rear Shelf Speaker(s) Remove/Install:

5. Remove four speaker retaining screws .
6. Remove speaker and disconnect wire connector.
7. Remove speaker (s) from vehicle.

INSTALLATION
1. Connect wire connector to the speaker.
2. Install speaker to the vehicle.
3. Install speaker retaining screws.
4. Install rear shelf panel.
5. Install seat back.
6. Install rear seat cushion.
7. Connect the battery negative cable.
