CD Changer: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (special tool #C-4755), gently pry out on CD changer bezel and remove.

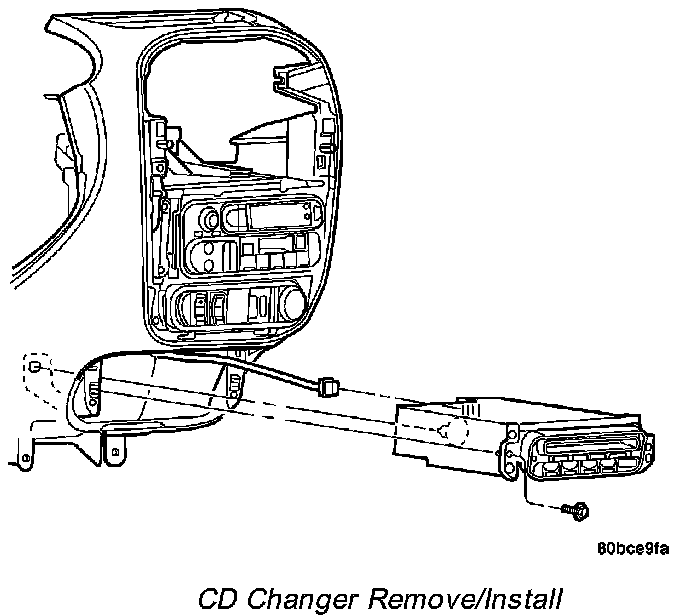

CD Changer Remove/Install:

3. Remove two retaining screws to CD changer.
4. Pull CD changer out of instrument panel and disconnect harness connector from rear of changer.

INSTALLATION
1. Connect harness connector to CD changer.
2. Install CD changer to vehicle.
3. Install retaining screws.
4. Install CD changer bezel.
5. Connect battery negative cable.
