P1105

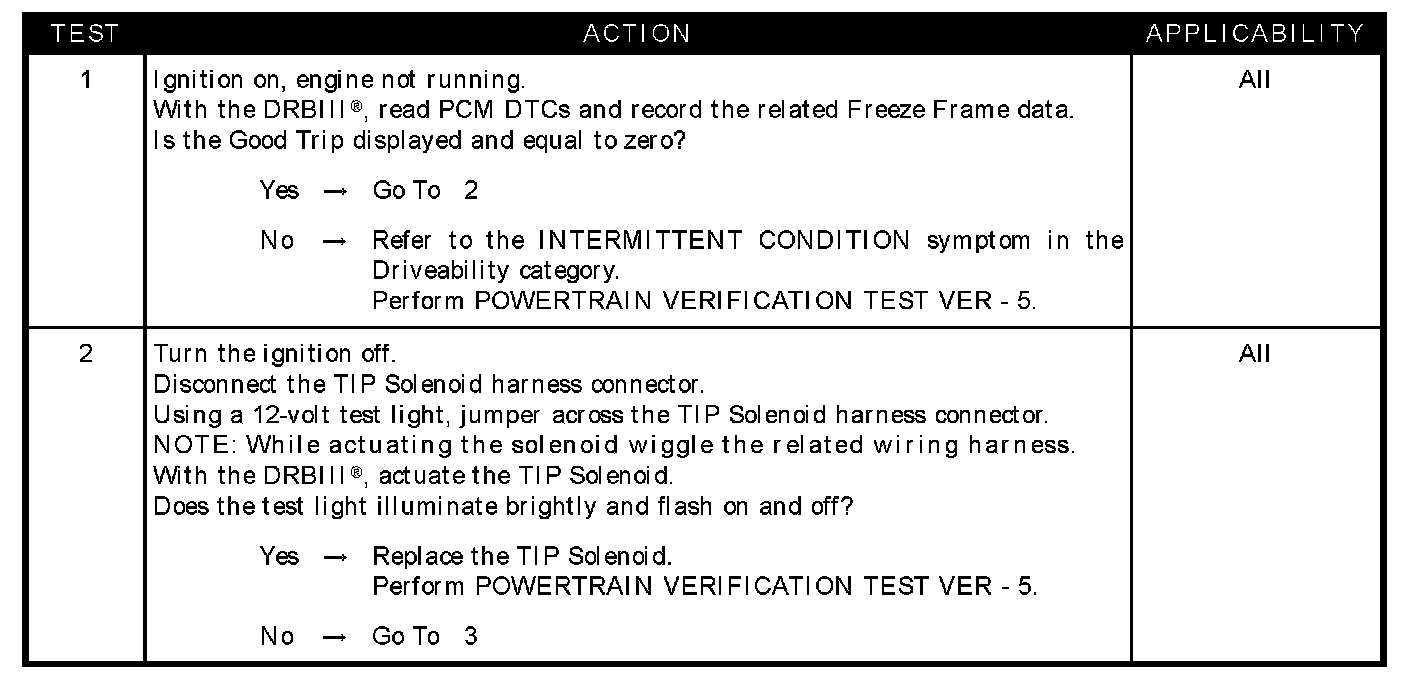

Test 1 - 2:

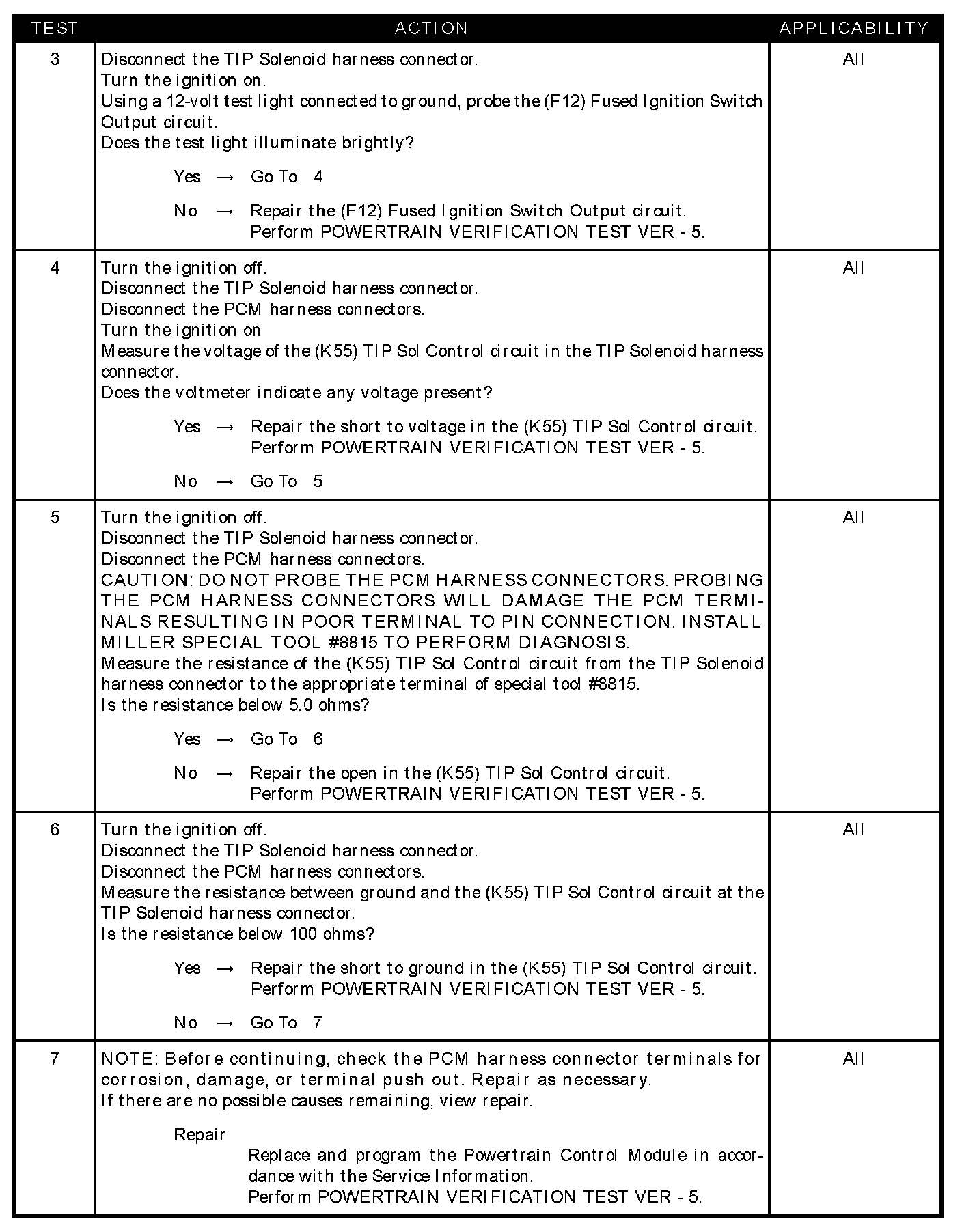

Test 3 - 7:

SYMPTOM
P1105-TIP SENSOR SOLENOID CIRCUIT

WHEN MONITORED
The ignition on or the engine running. Battery voltage greater than 10.4 volts or in turbo boost mode.

SET CONDITION
The PCM will set the DTC if the actual state of the solenoid does not match the intended state.

POSSIBLE CAUSES
- Good trip equal to zero
- Tip solenoid operation
- (F12) Fused ignition switch output circuit
- (K55) TIP SOL control circuit shorted to battery voltage
- (K55) TIP SOL control circuit open
- (K55) TIP SOL control circuit shorted to ground
- PCM
