P0833

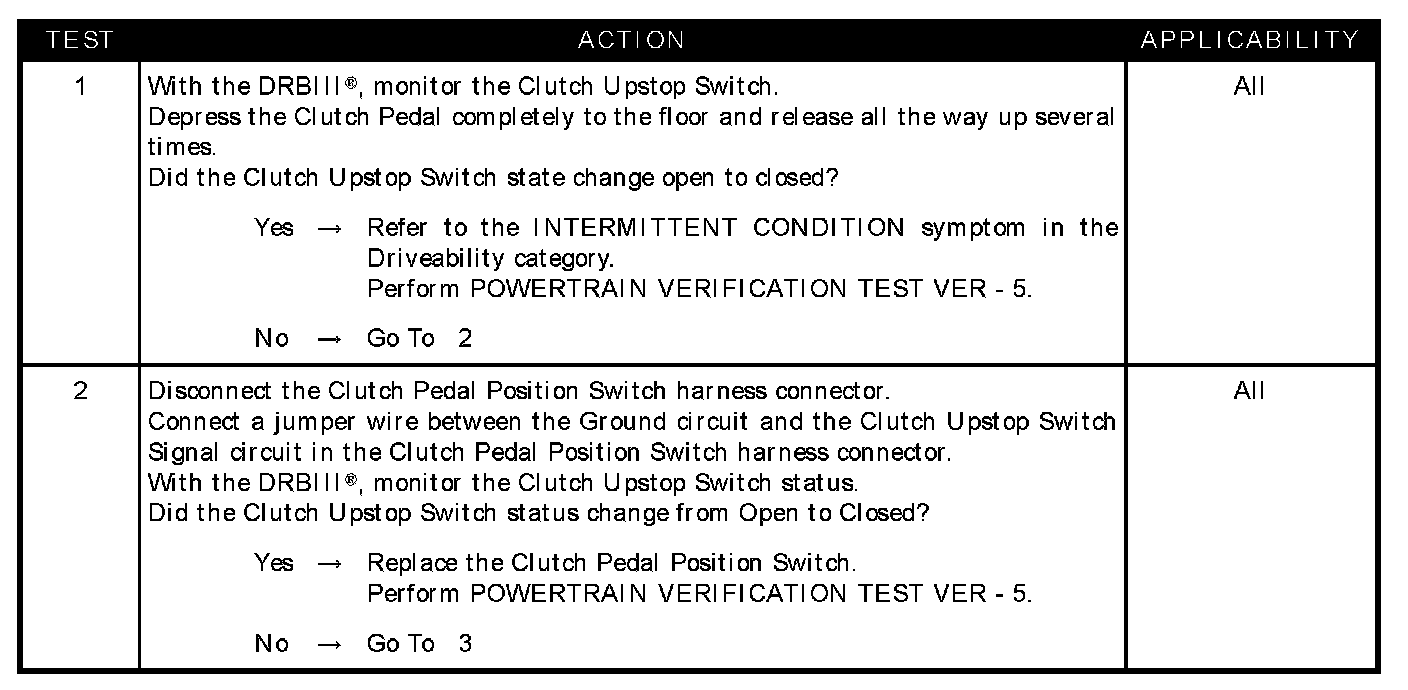

Test 1 - 2:

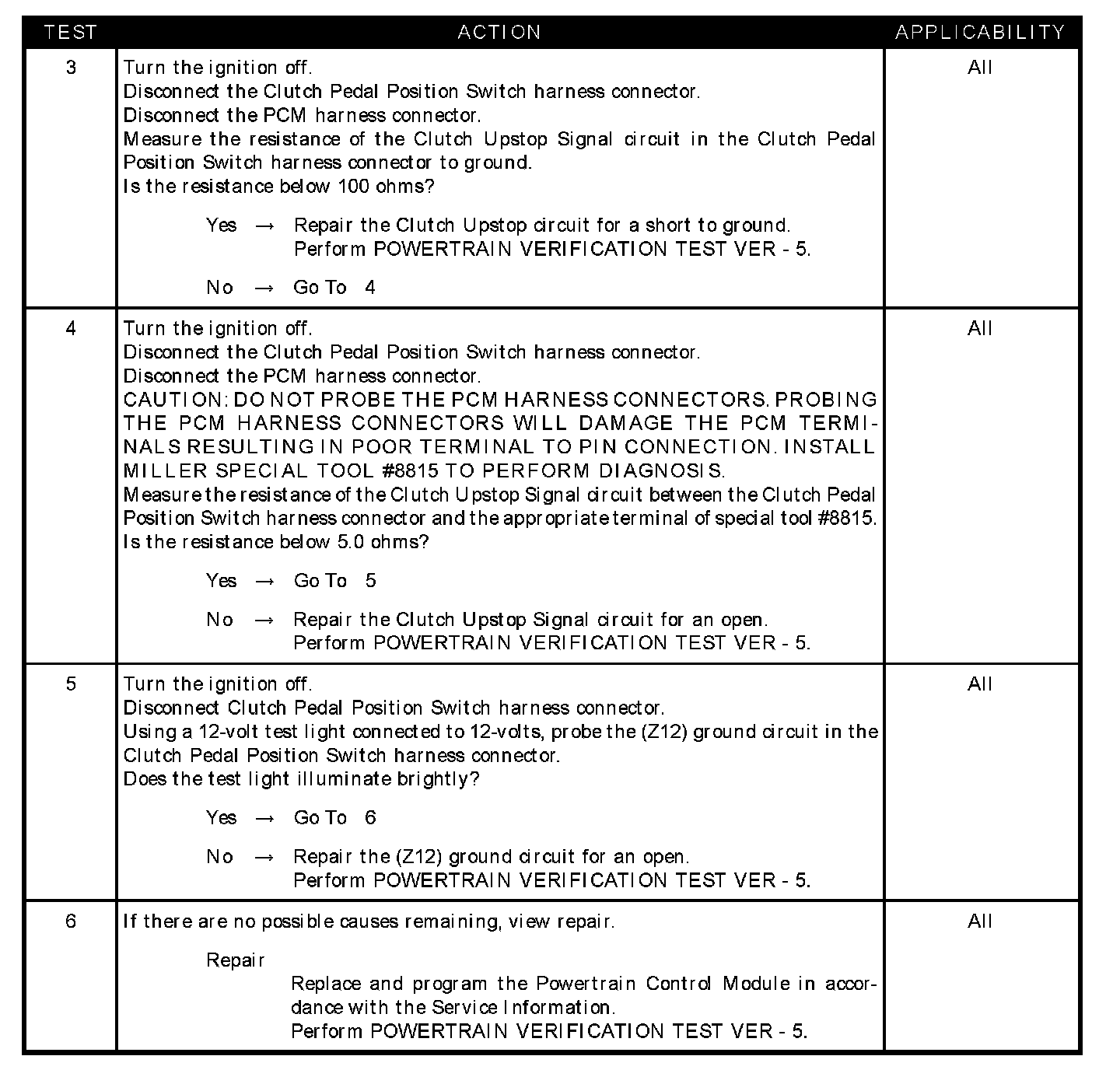

Test 3 - 6:

SYMPTOM
P0833-CLUTCH RELEASED SWITCH CIRCUIT

WHEN MONITORED
During crank or when engine speed is between 1500-2880 RPM and vehicle speed is greater than 25 MPH.

SET CONDITION
A short to ground is detected during start-up. An open circuit is detected when engine Speed is between 1500-2880 RPM, vehicle speed is >25 MPH, and delta throttle is >1.1 volts for 4 seconds. This cycle must repeat 5 times per trip for 2 trips.

POSSIBLE CAUSES
- Clutch pedal position switch operation
- Clutch pedal position switch
- Clutch upstop signal circuit open
- Clutch upstop signal circuit shorted to ground
- (Z12) Ground circuit
- PCM
