P0522

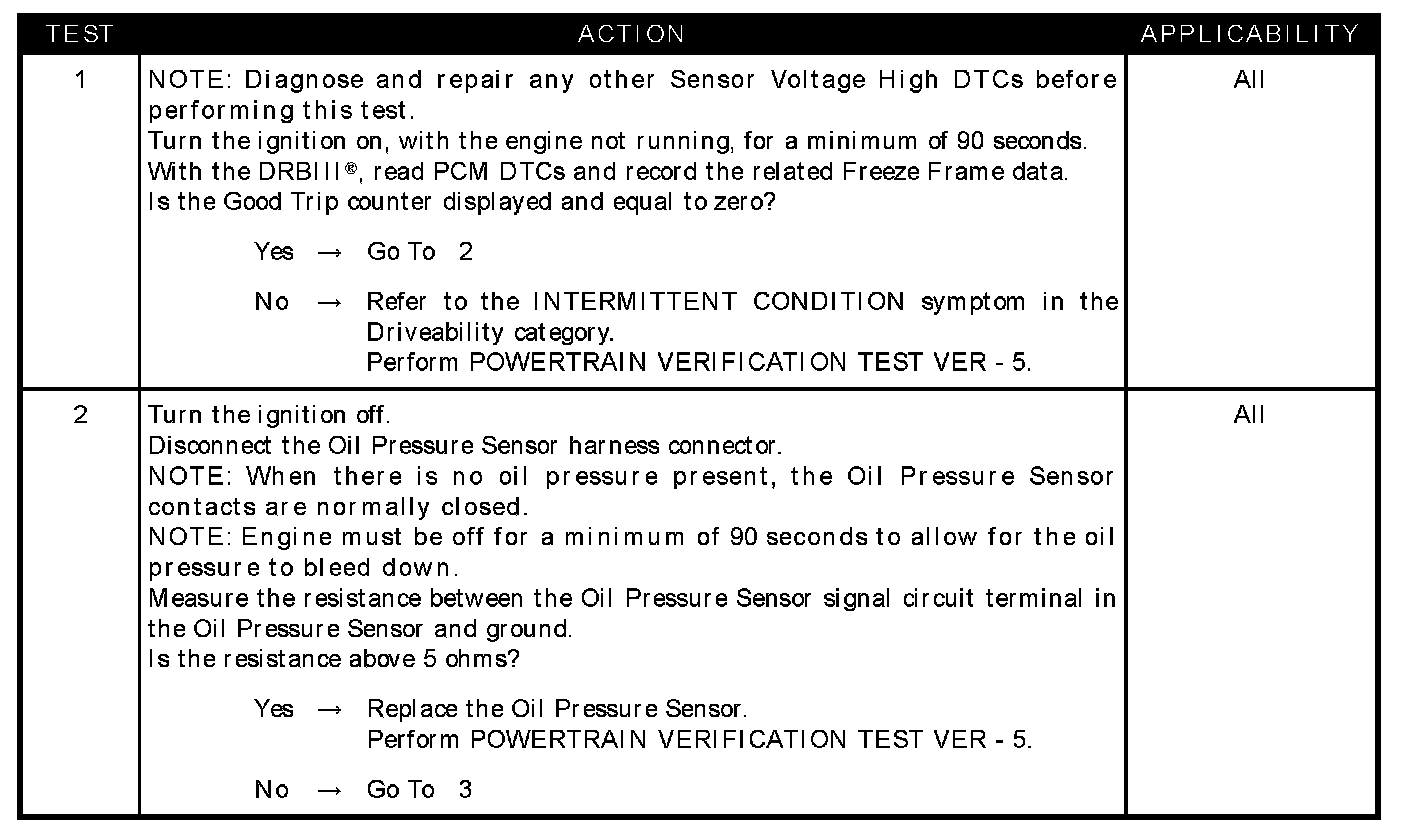

Test 1 - 2:

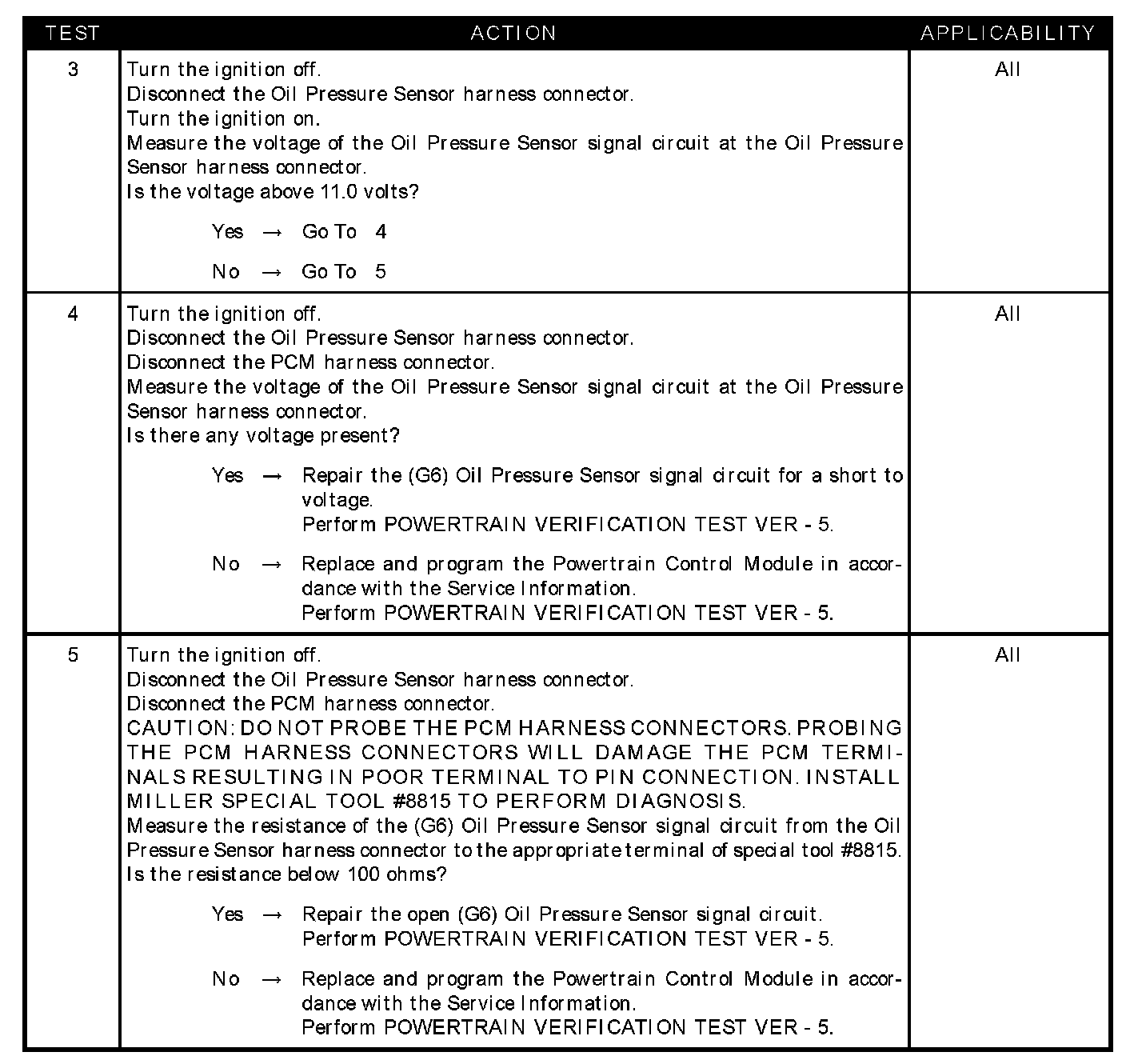

Test 3 - 5:

SYMPTOM
P0522-OIL PRESSURE SENSOR LOW

When Monitored
With the ignition key on and battery voltage above 10.4 volts.

Set Condition
The oil pressure sensor voltage at PCM goes below 0.1 volts for 0.5 of a second.

POSSIBLE CAUSES
- Good trip equal to zero
- Oil pressure sensor internal failure
- (G6) OPS signal circuit open
- (G6) OPS signal circuit shorted to voltage
- PCM
