P0517

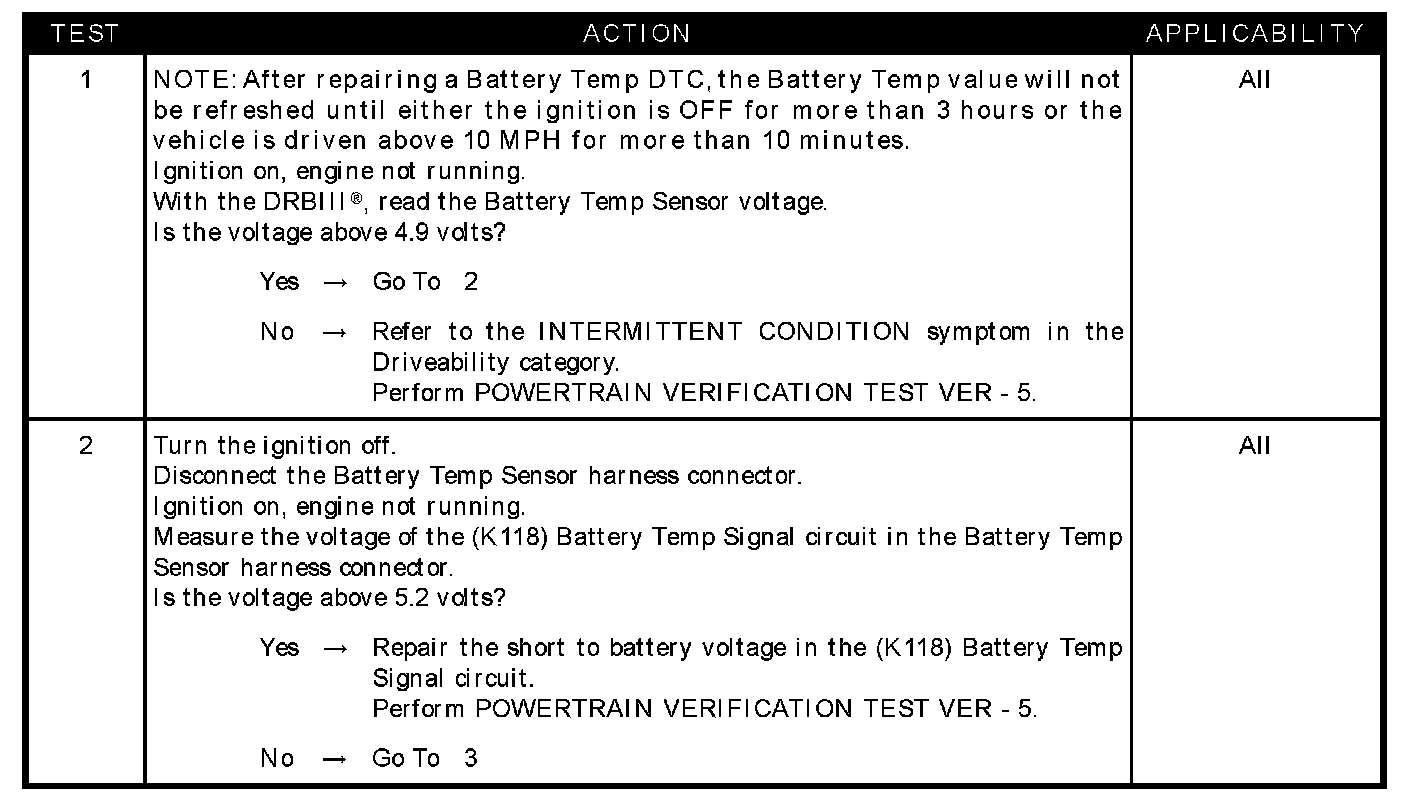

Test 1 - 2:

Test 3 - 6:

SYMPTOM
P0517-BATTERY TEMPERATURE SENSOR HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
Battery temperature voltage above 4.9 volts.

POSSIBLE CAUSES
- Battery temp voltage above 4.9 volts
- (K118) Battery temp signal circuit shorted to battery voltage
- Battery temp sensor internal failure
- (K118) Battery temp signal circuit open
- (K167) Sensor ground circuit open
- PCM
