P0516

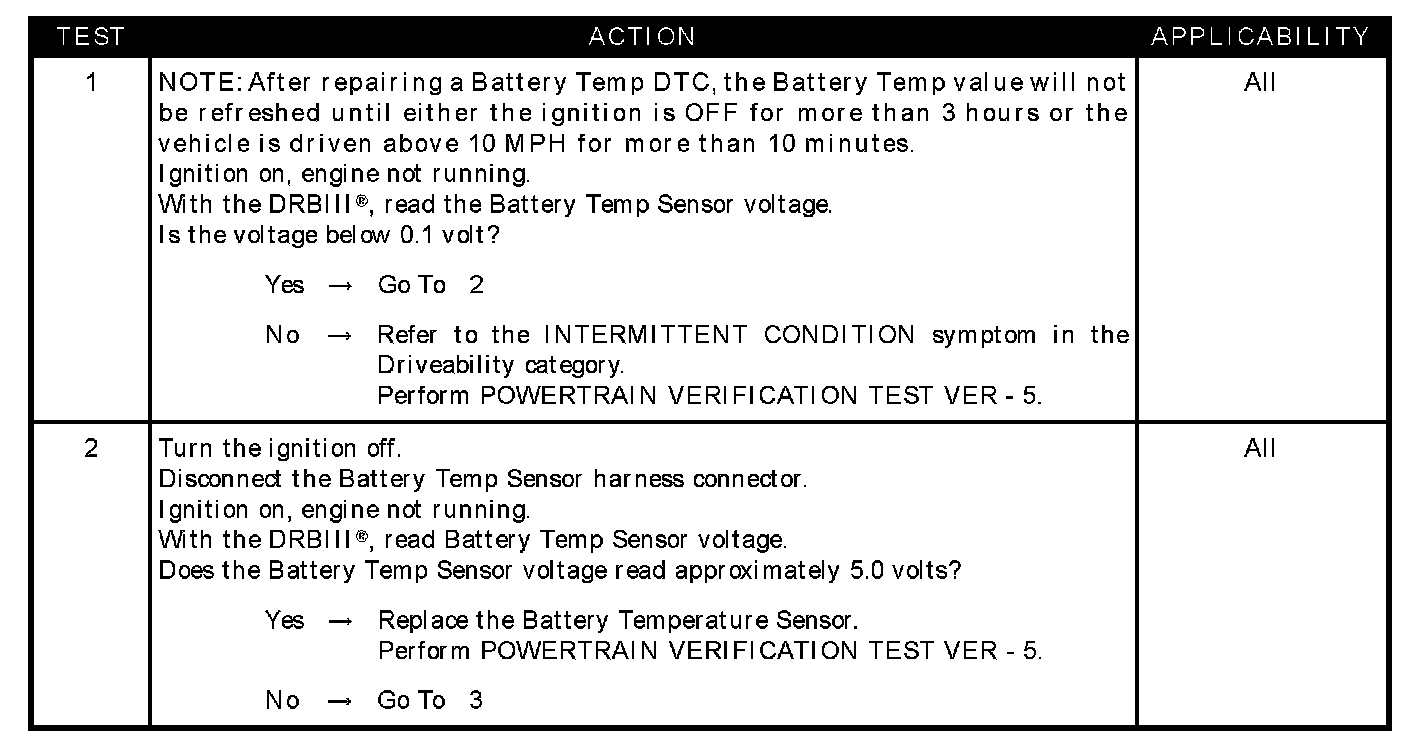

Test 1 - 2:

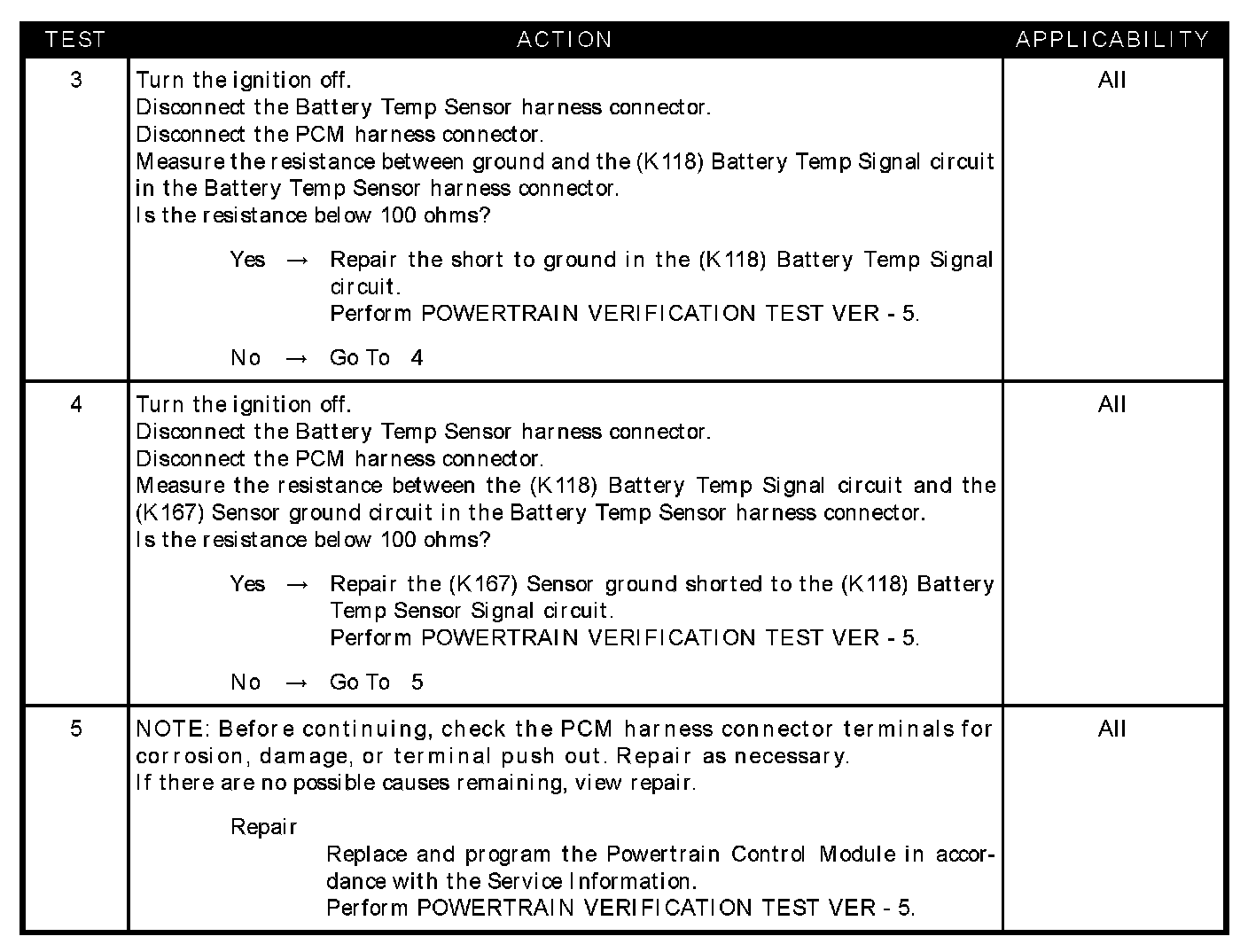

Test 3 - 5:

SYMPTOM
P0516-BATTERY TEMPERATURE SENSOR LOW

WHEN MONITORED
Ignition on.

SET CONDITION
Battery temperature sensor voltage below 0.1 of a volt.

POSSIBLE CAUSES
- Battery temp sensor voltage below 0.1 volts
- Battery temp sensor internal failure
- (K118) Battery temp signal shorted to ground
- (K118) Battery temp signal shorted to (K167) sensor ground circuit
- PCM
