P0243

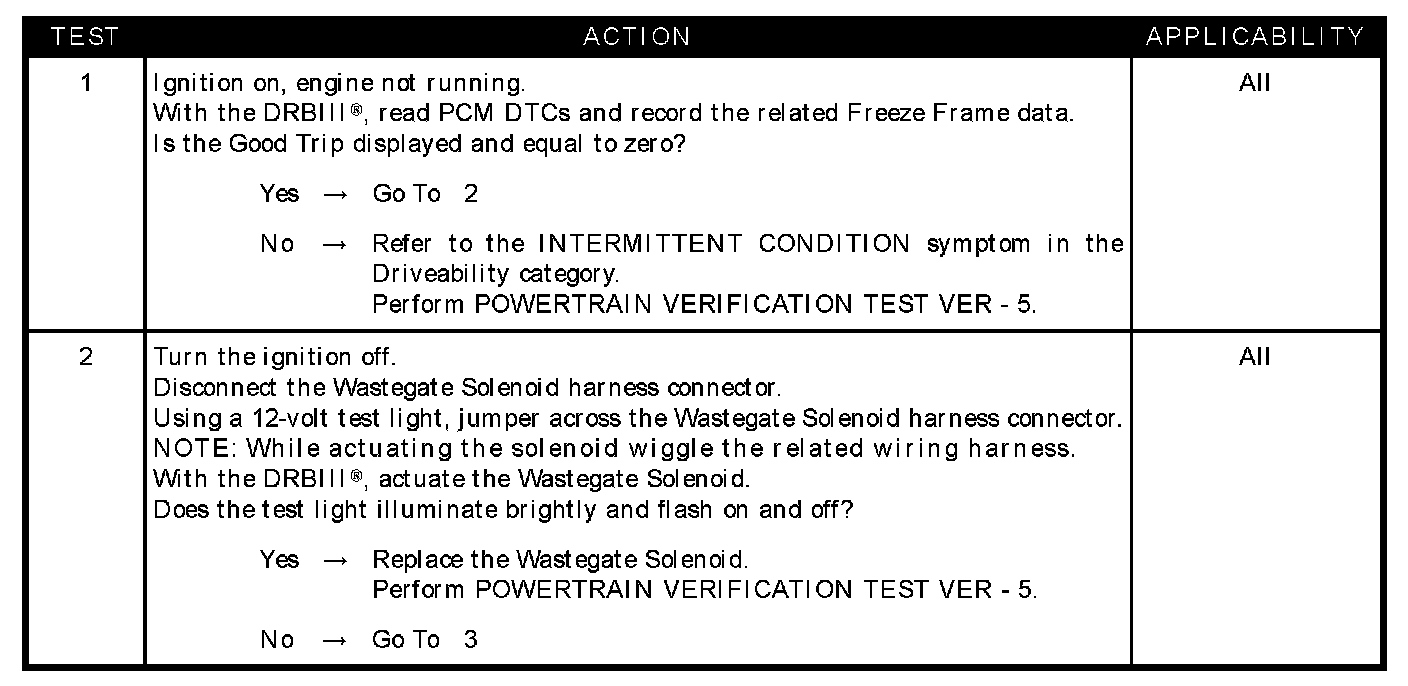

Test 1 - 2:

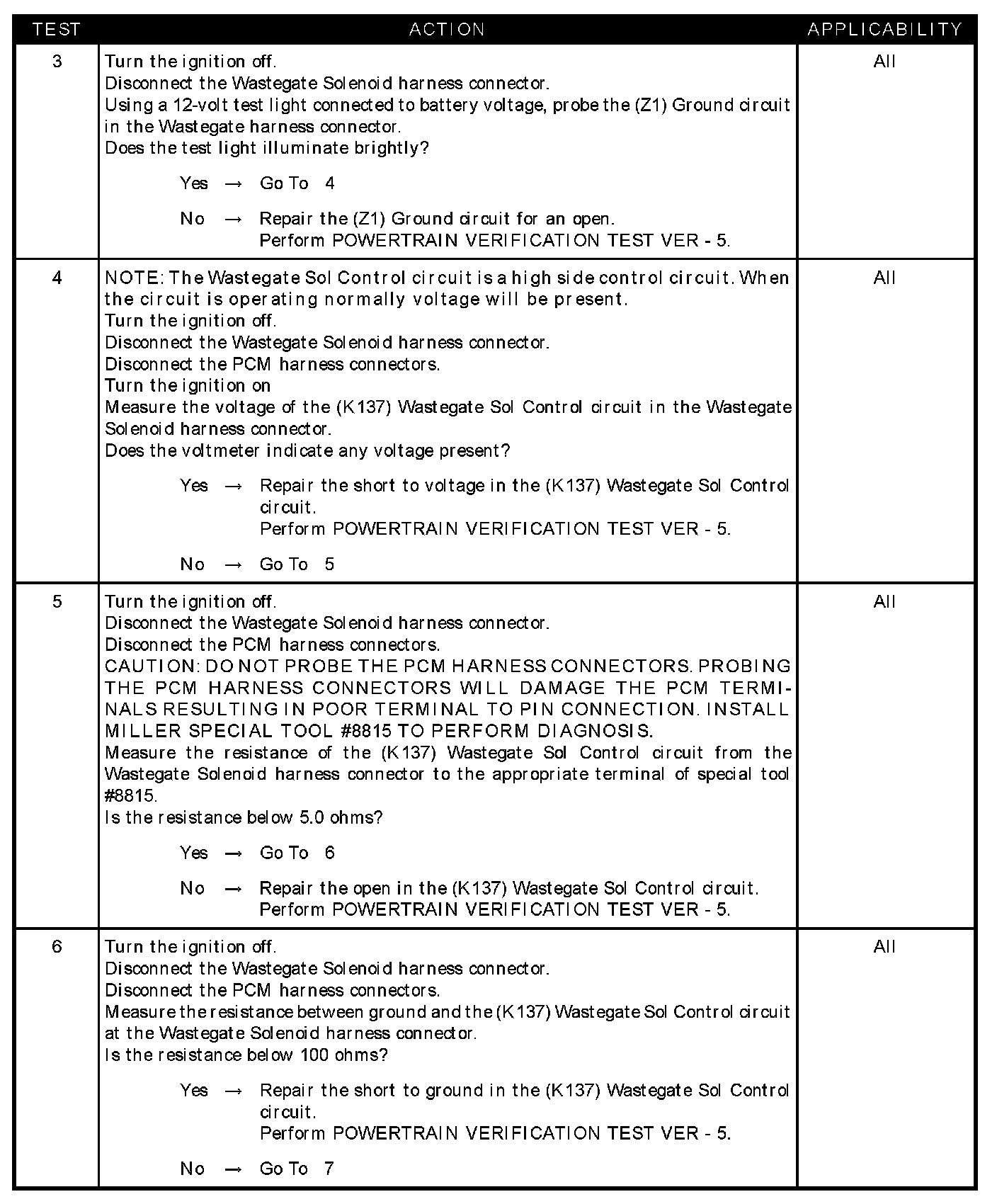

Test 3 - 6:

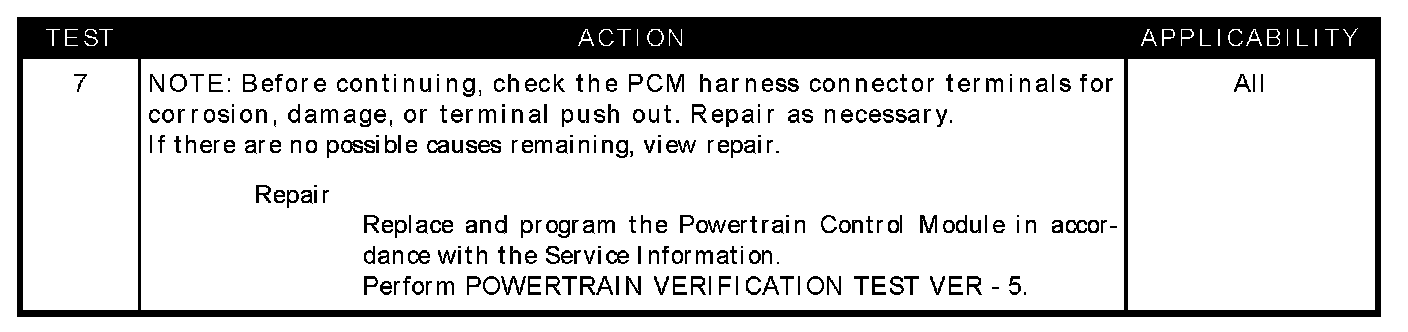

Test 7:

SYMPTOM
P0243-WASTEGATE SOLENOID CIRCUIT

WHEN MONITORED
The ignition on or engine running. Battery voltage greater than 10 volts.

SET CONDITION
The PCM will set the DTC if the actual state of the solenoid does not match the intended state.

POSSIBLE CAUSES
- Good trip equal to zero
- Wastegate solenoid operation
- (Z1) Wastegate solenoid ground circuit
- (K137) Waste SOL control circuit shorted to battery voltage
- (K137) Wastegate SOL control circuit open
- (K137) Wastegate SOL control circuit shorted to ground
- PCM
