P0033

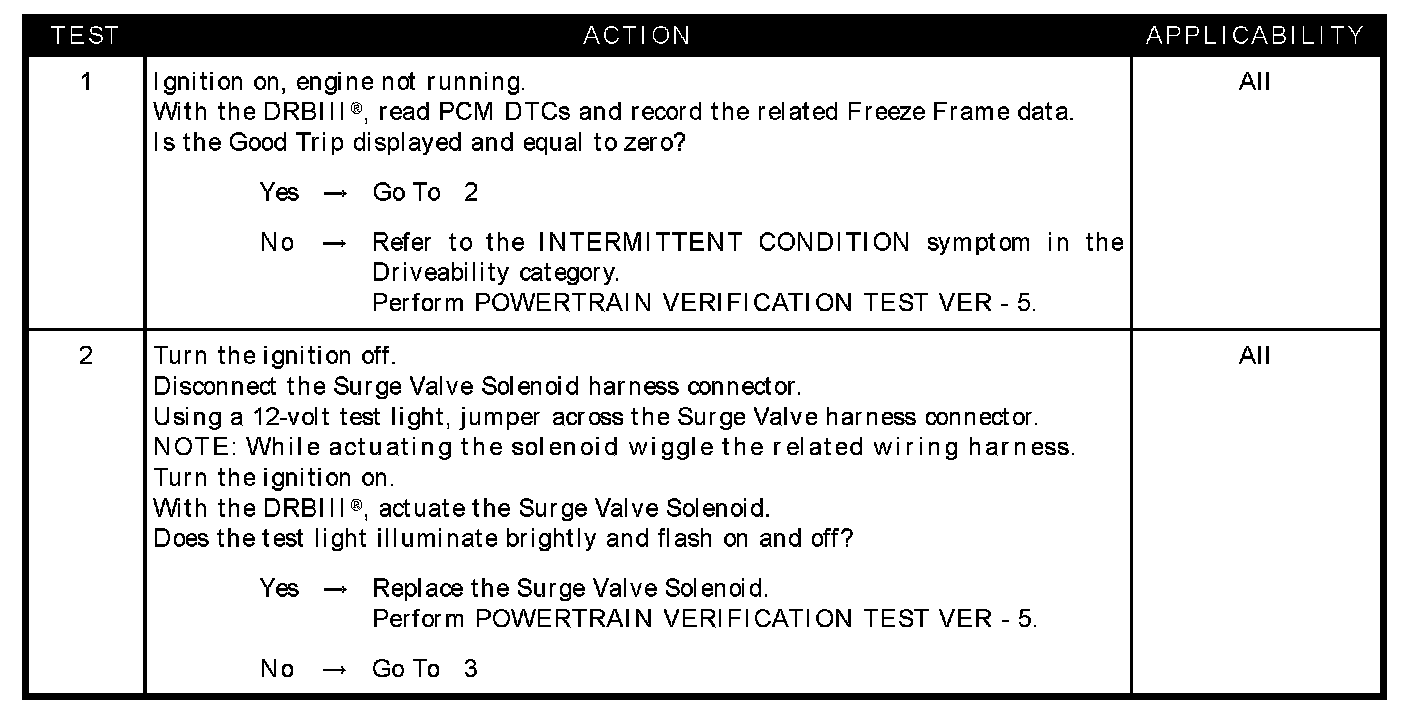

Test 1 - 2:

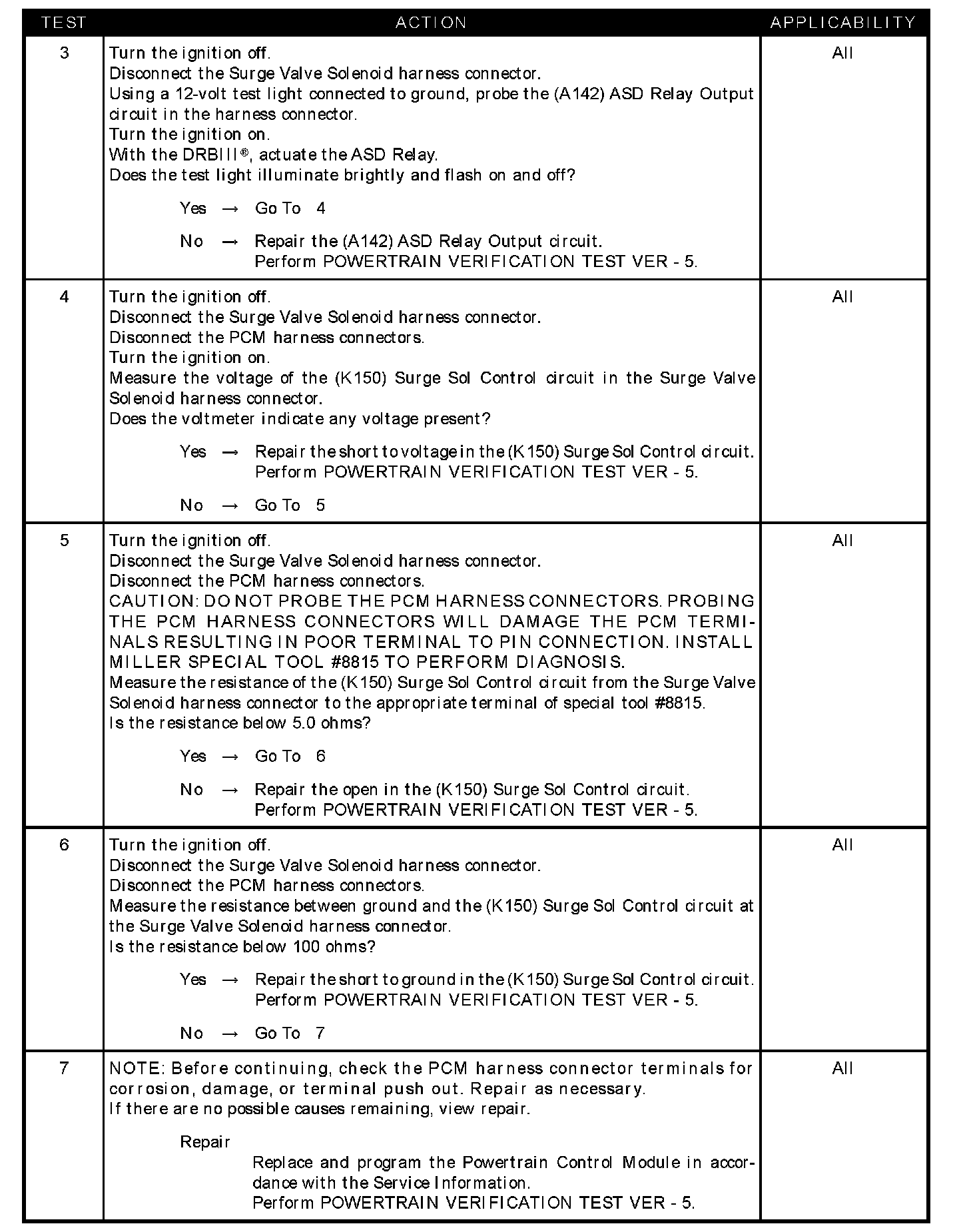

Test 3 - 7:

SYMPTOM
P0033-SURGE VALVE SOLENOID CIRCUIT

WHEN MONITORED
Ignition on or engine running. Battery voltage greater than 10 volts.

SET CONDITION
The PCM will set the DTC if the actual state of the solenoid does not match the intended state.

POSSIBLE CAUSES
- Good trip equal to zero
- Surge valve solenoid operation
- (A142) ASD relay output circuit
- (K150) surge SOL control circuit shorted to battery voltage
- (K150) surge SOL control circuit open
- (K150) surge SOL control circuit shorted to ground
- PCM
