Seat Squib Shorted to Ground

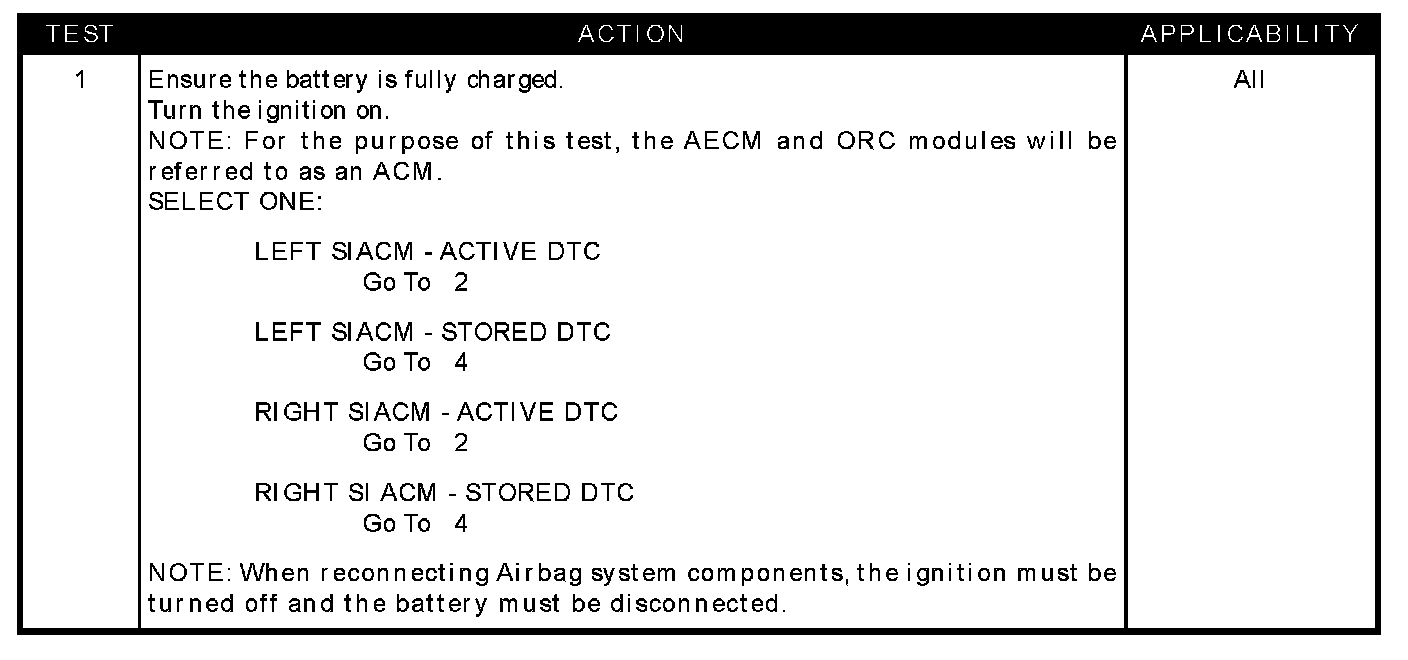

Test 1:

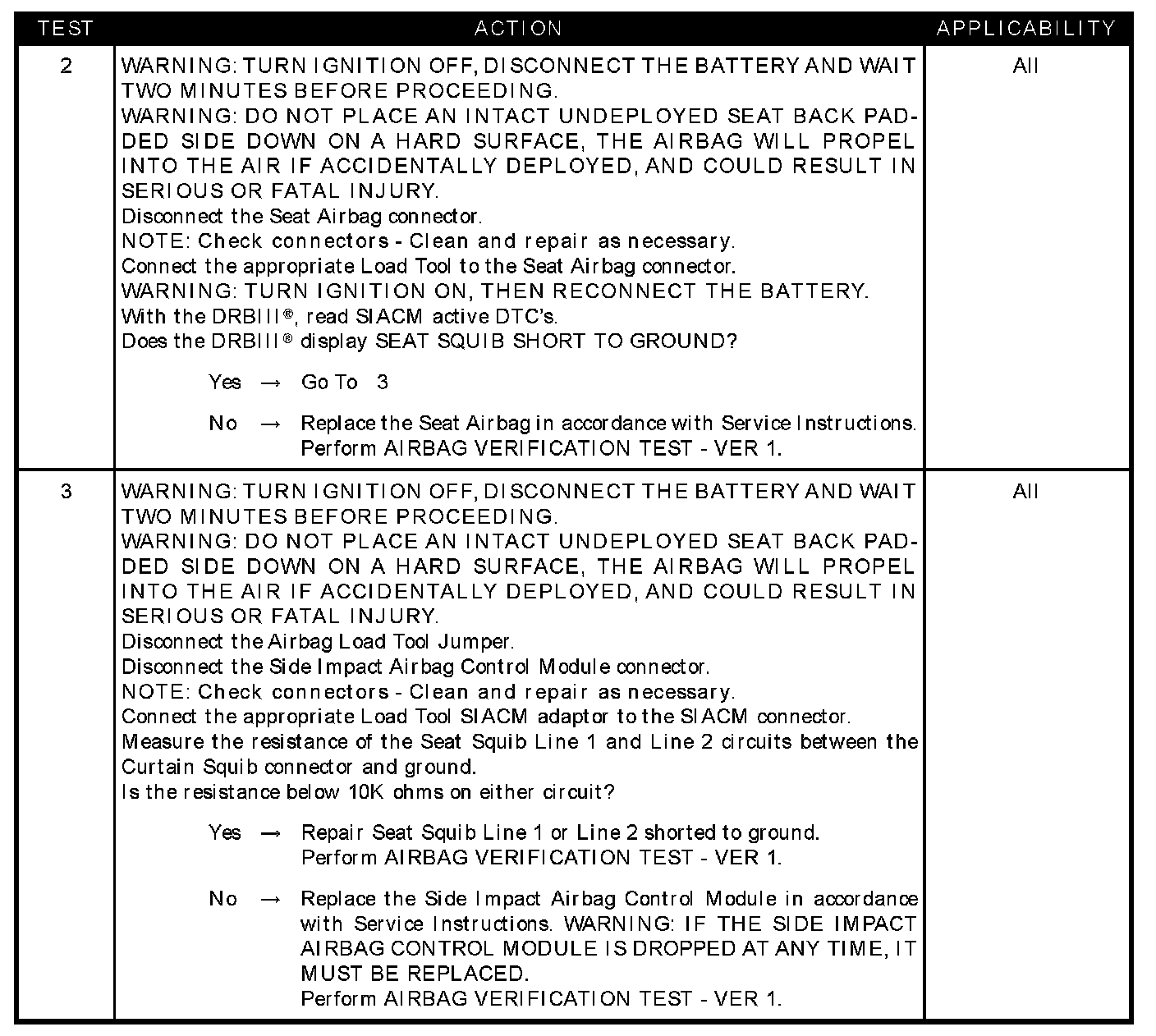

Test 2 - 3:

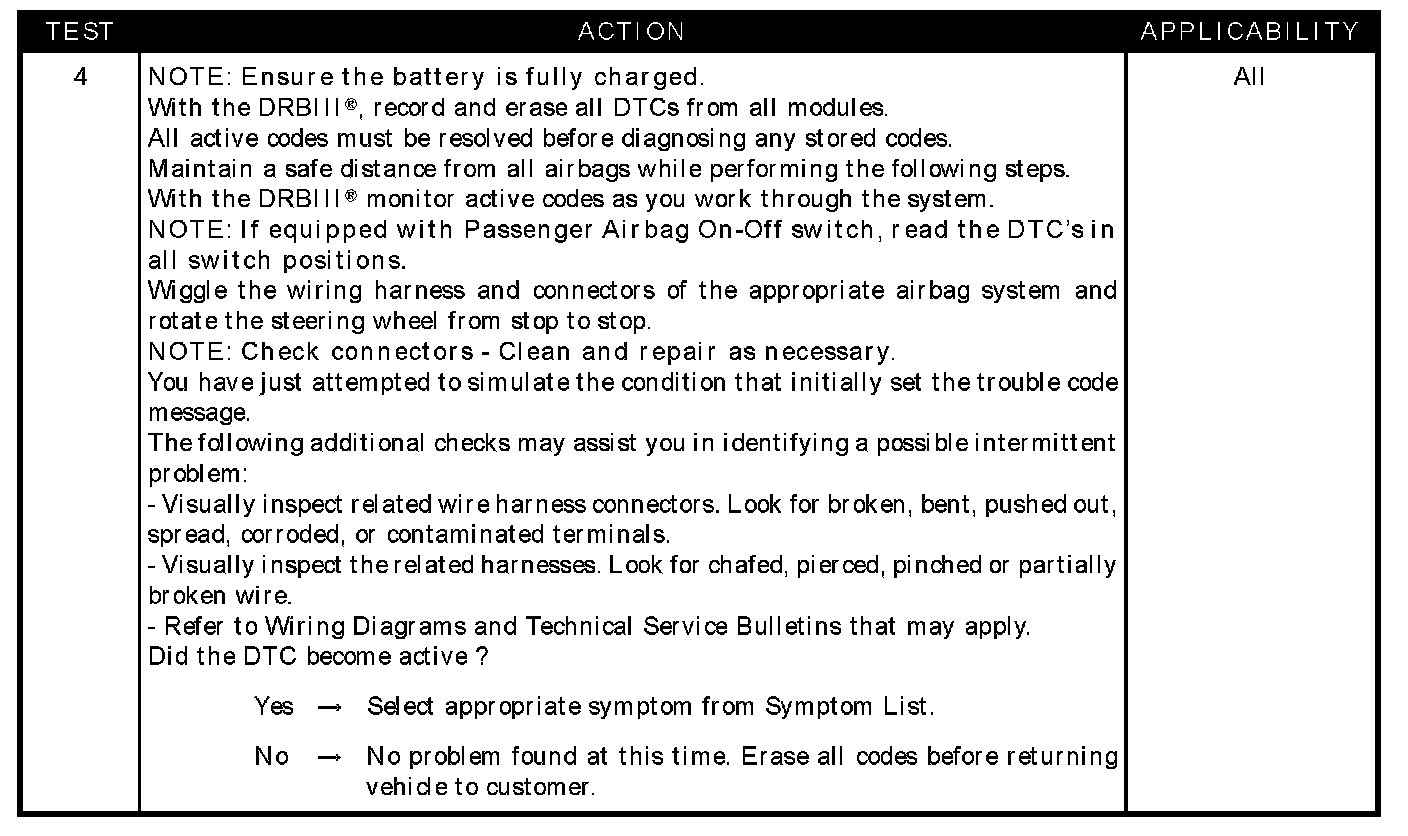

Test 4:

SYMPTOM
SEAT SQUIB SHORT TO GROUND

WHEN MONITORED
When the ignition is on, the SIACM monitors the resistance of the Seat Squib circuits.

SET CONDITION
When the SIACM detects a short to ground on the Seat Squib circuits.

POSSIBLE CAUSES
- Seat airbag short to ground
- Seat squib line 1 or line 2 shorted to ground
- SIACM, seat squib short to ground
- Stored code or intermittent condition
- Active code present
