Seat Squib Shorted to Battery

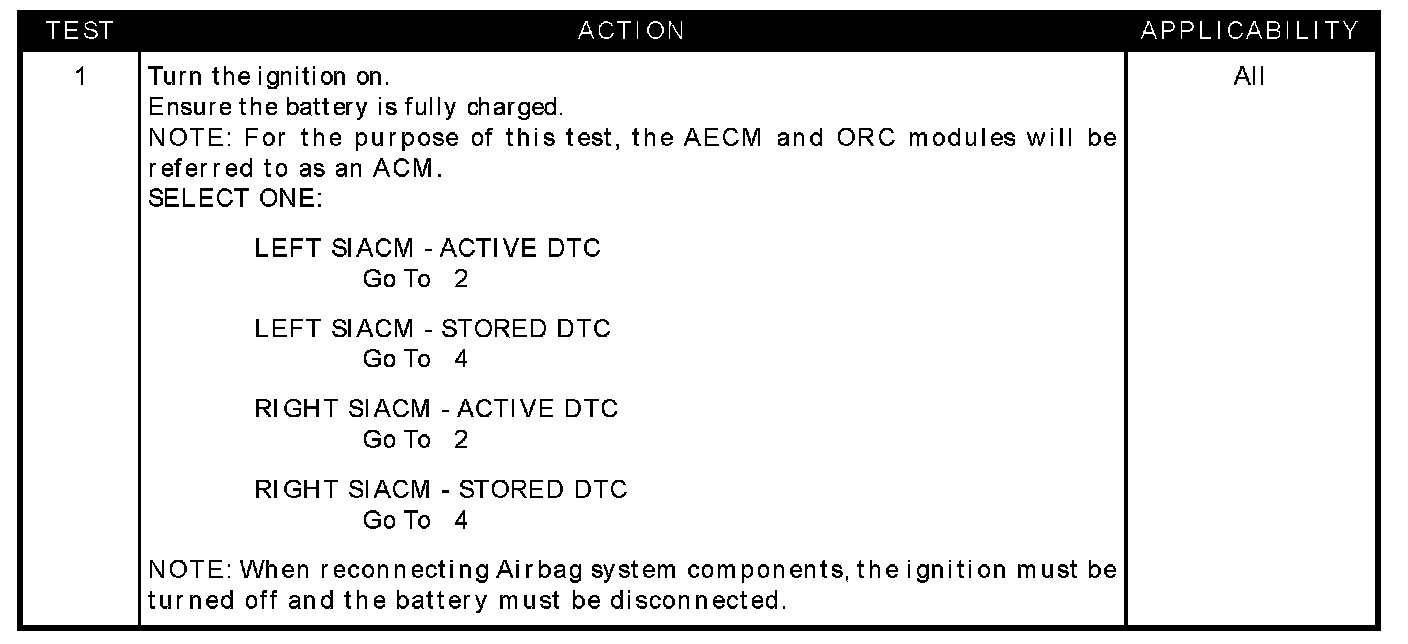

Test 1:

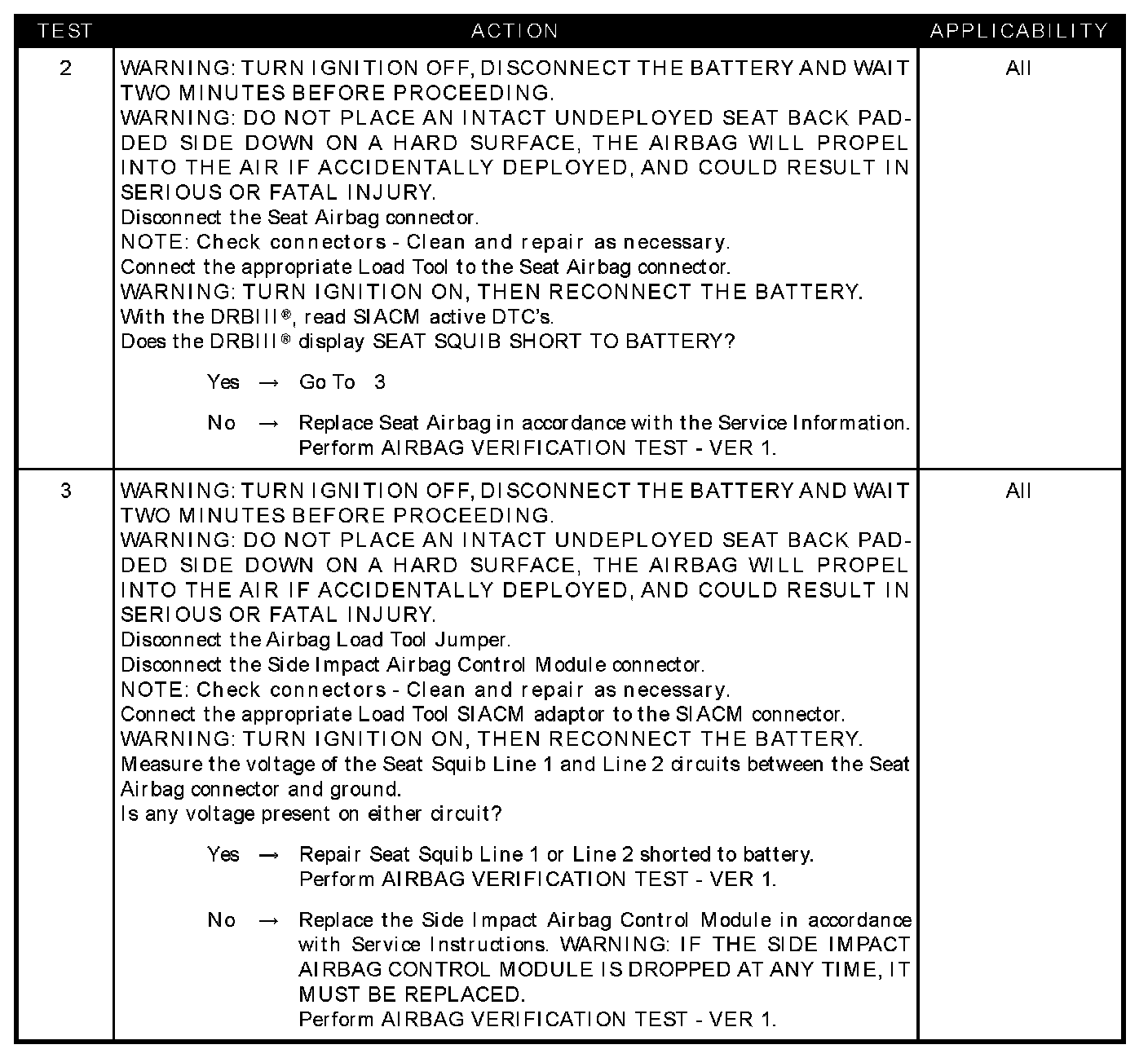

Test 2 - 3:

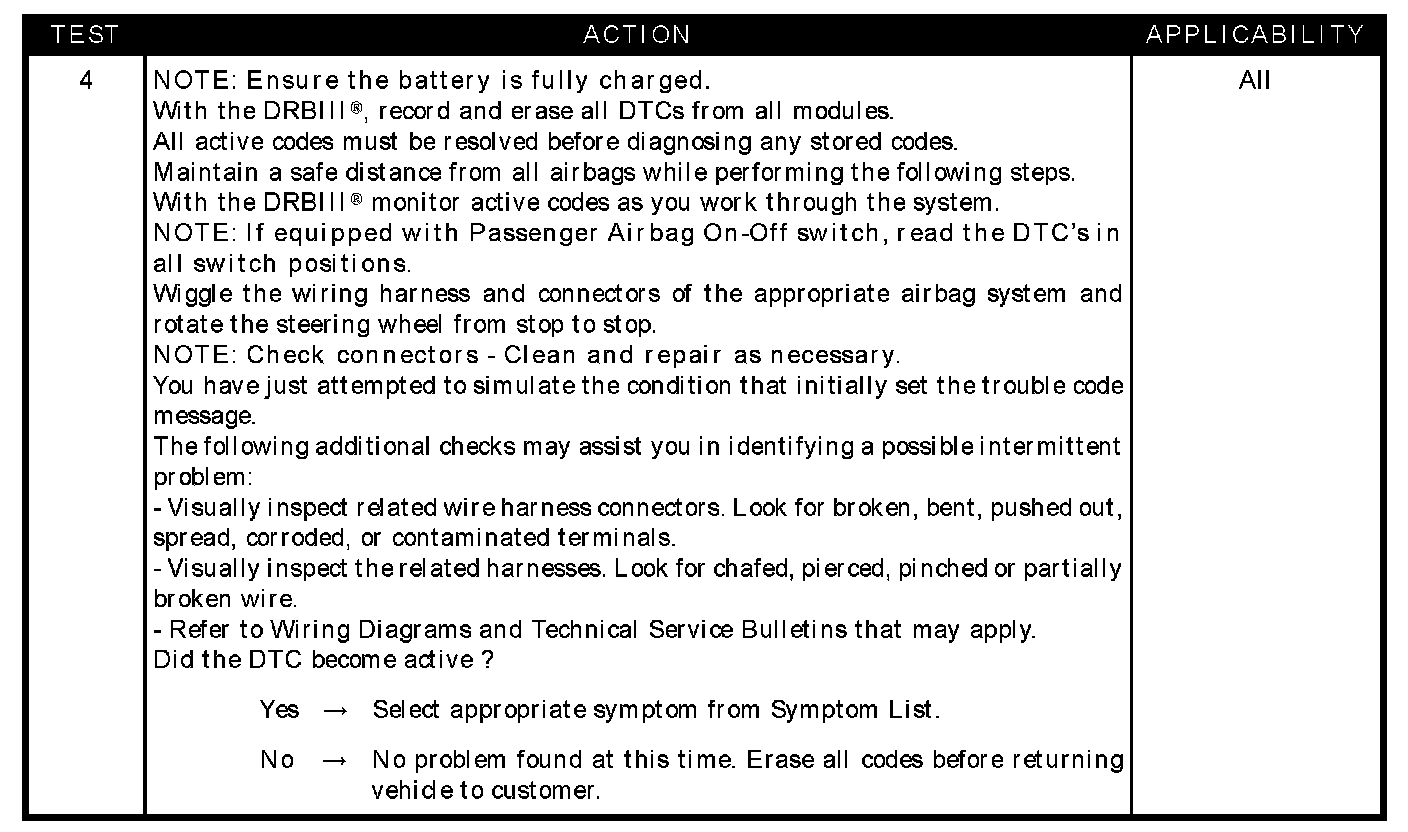

Test 4:

SYMPTOM
SEAT SQUIB SHORT TO BATTERY

WHEN MONITORED
When the ignition is on, the SIACM monitors the voltage of the Seat Squib circuits.

SET CONDITION
When the SIACM detects high voltage on the Seat Squib circuits.

POSSIBLE CAUSES
- Seat airbag short to battery
- Seat squib line 1 or line 2 shorted to battery
- SIACM, seat squib short to battery
- Stored code or intermittent condition
- Active code present
