Seat Squib Circuit Shorted

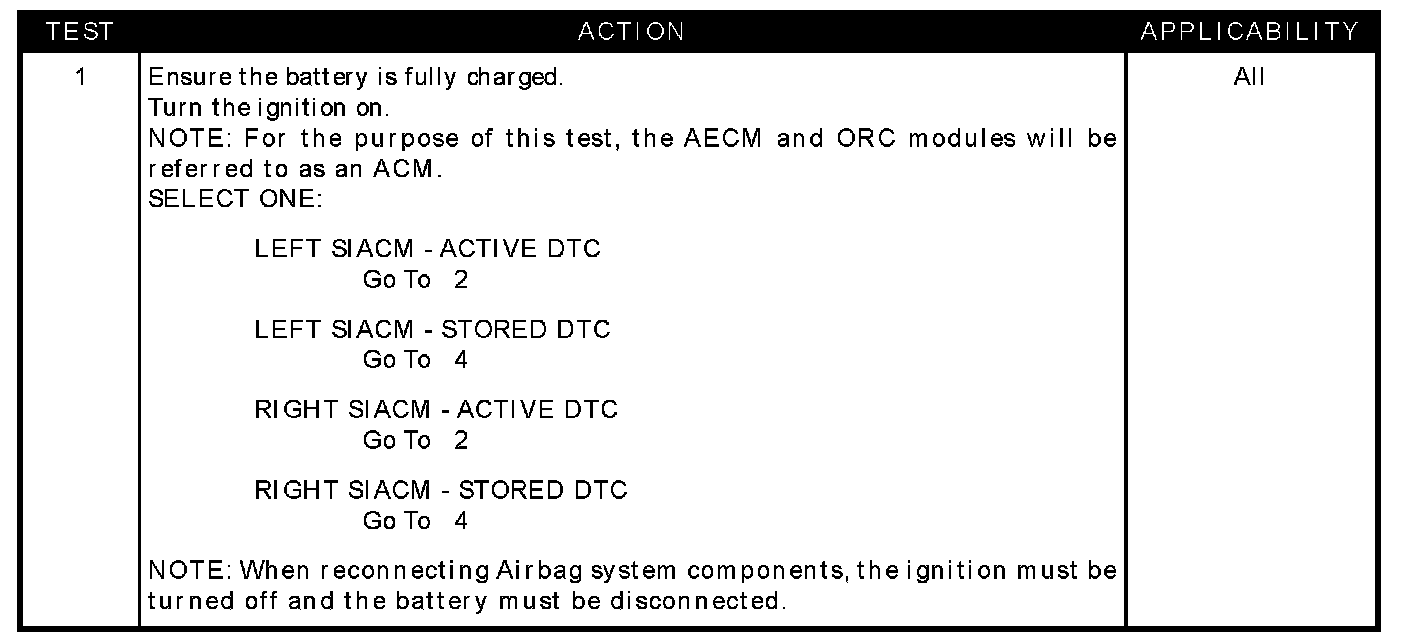

Test 1:

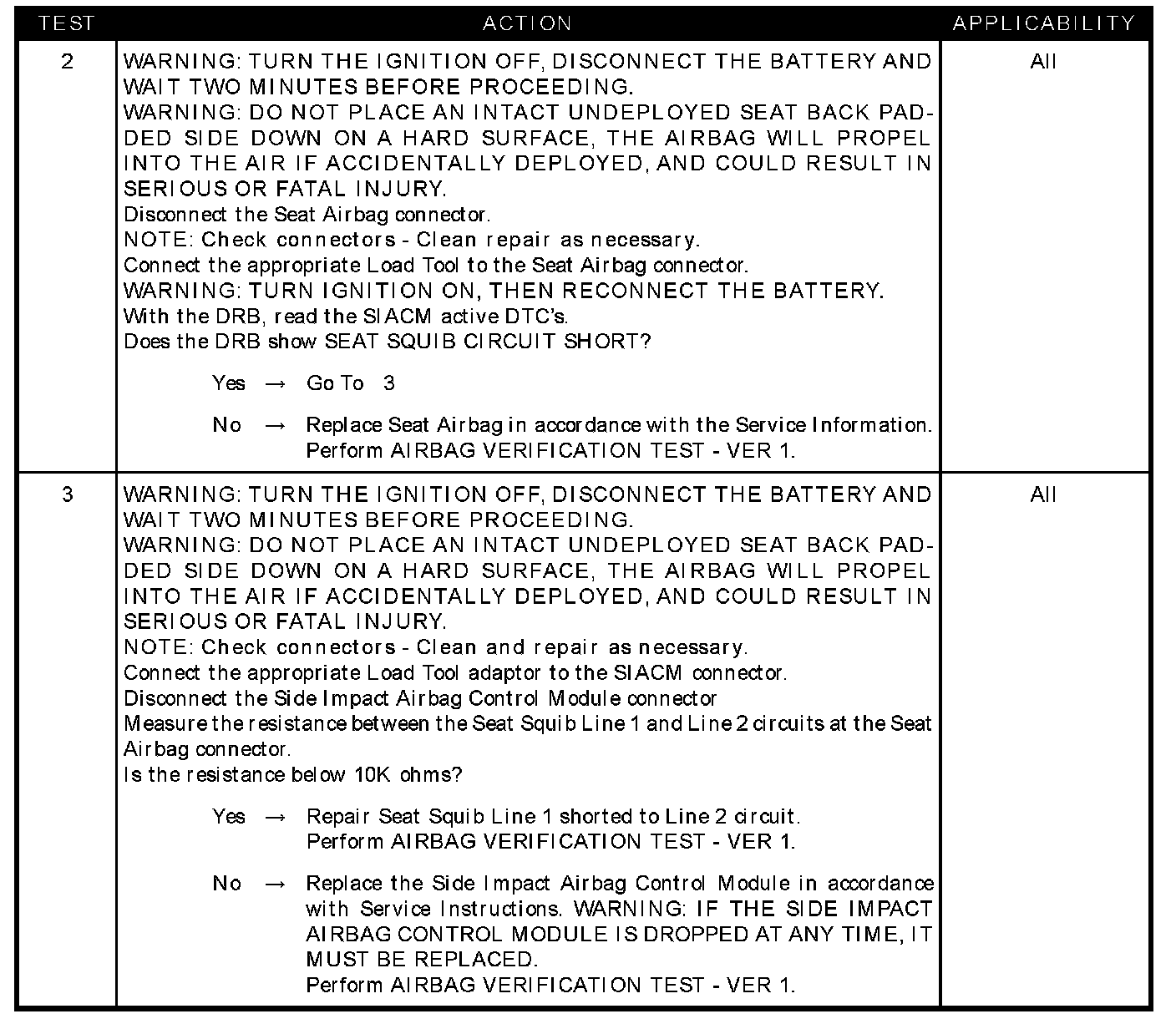

Test 2 - 3:

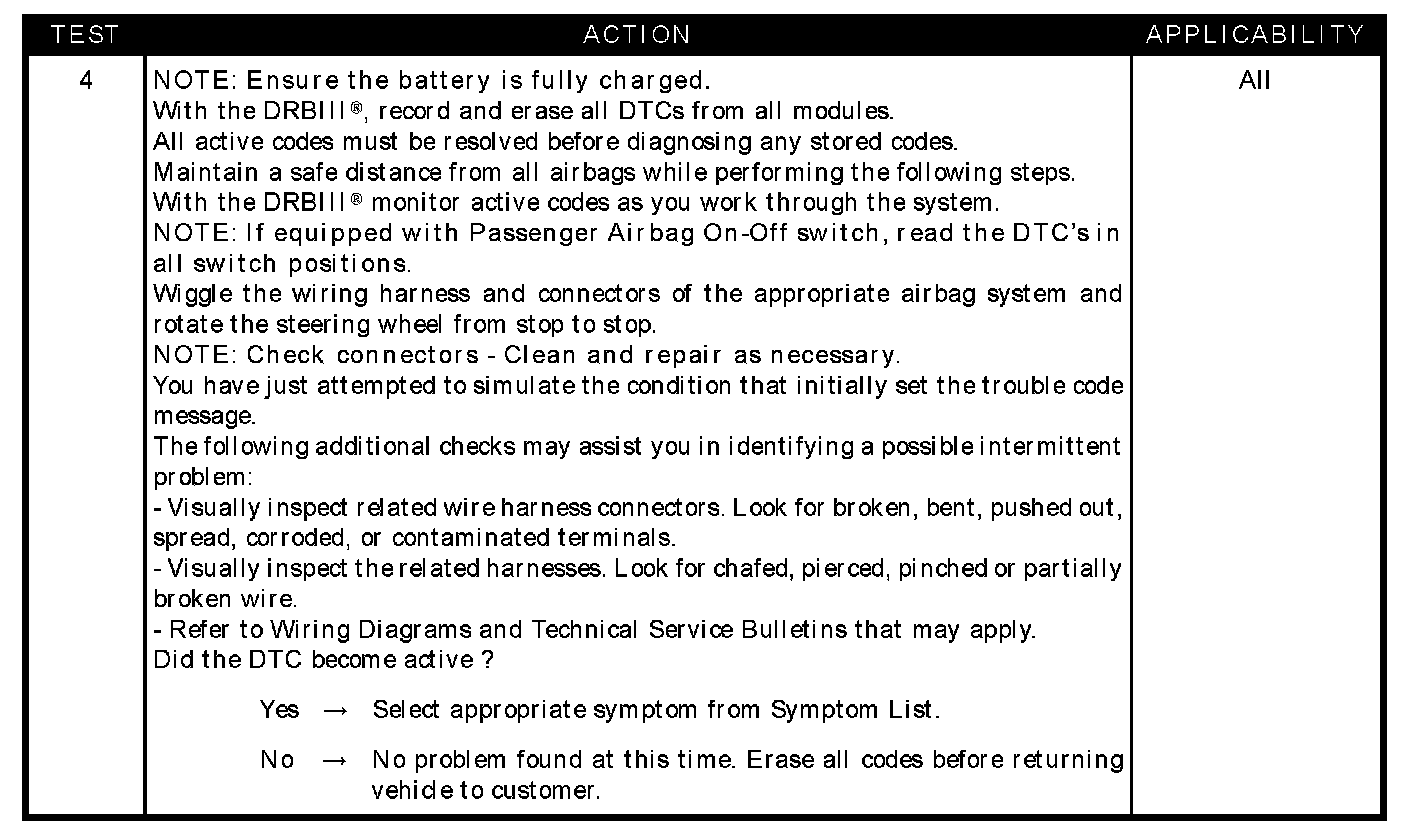

Test 4:

SYMPTOM
SEAT SQUIB CIRCUIT SHORT

WHEN MONITORED
When the ignition is on, the SIACM monitors the resistance between the Seat Squib circuits.

SET CONDITION
When the SIACM detects a low resistance between the Seat Squib circuits.

POSSIBLE CAUSES
- Seat airbag short
- Seat squib line 1 short to line 2
- SIACM, seat squib circuit short
- Stored code or intermittent condition
- Active code present
