Seat Squib Circuit Open

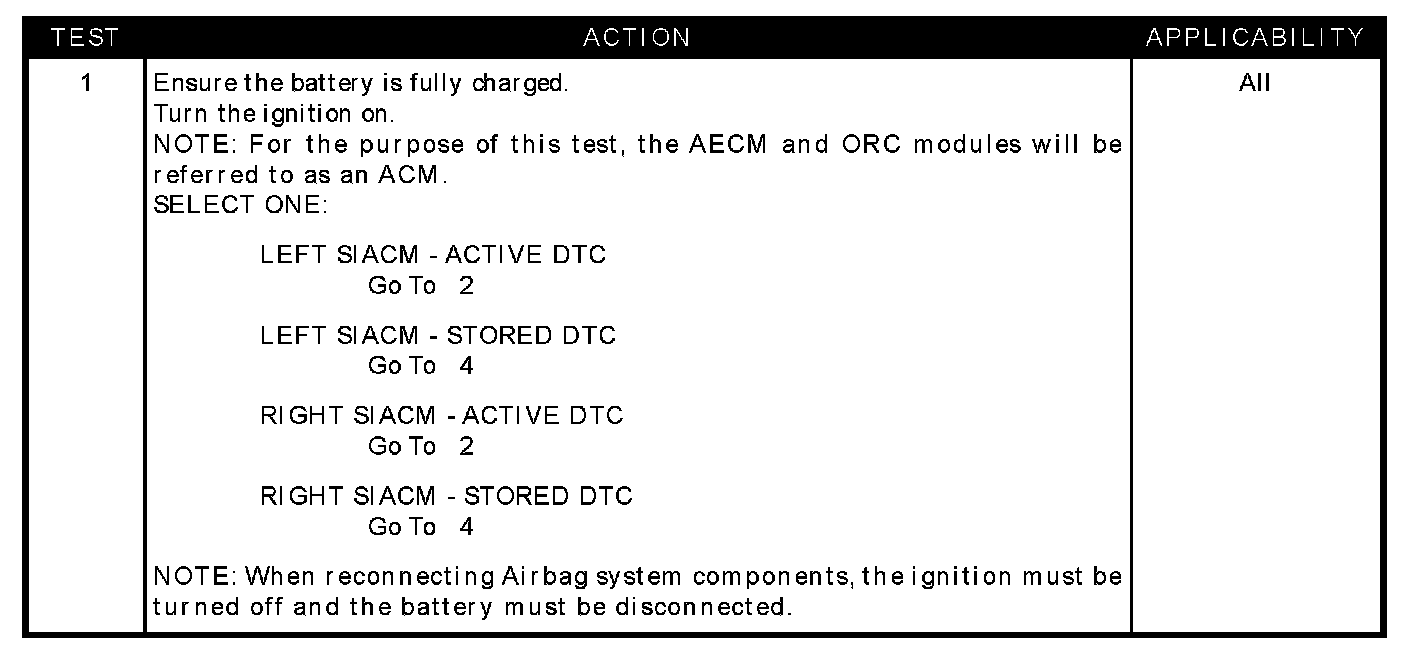

Test 1:

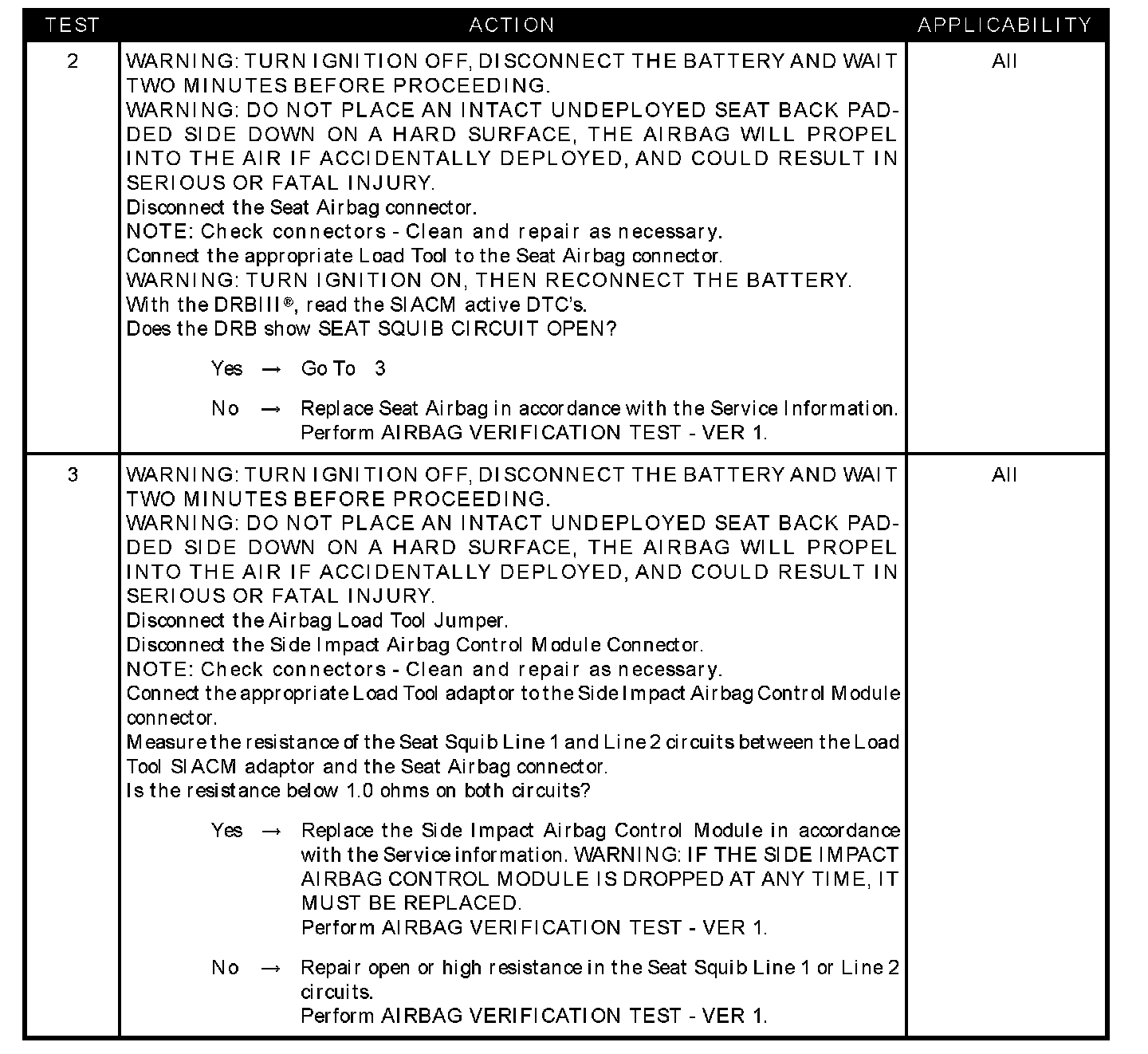

Test 2 - 3:

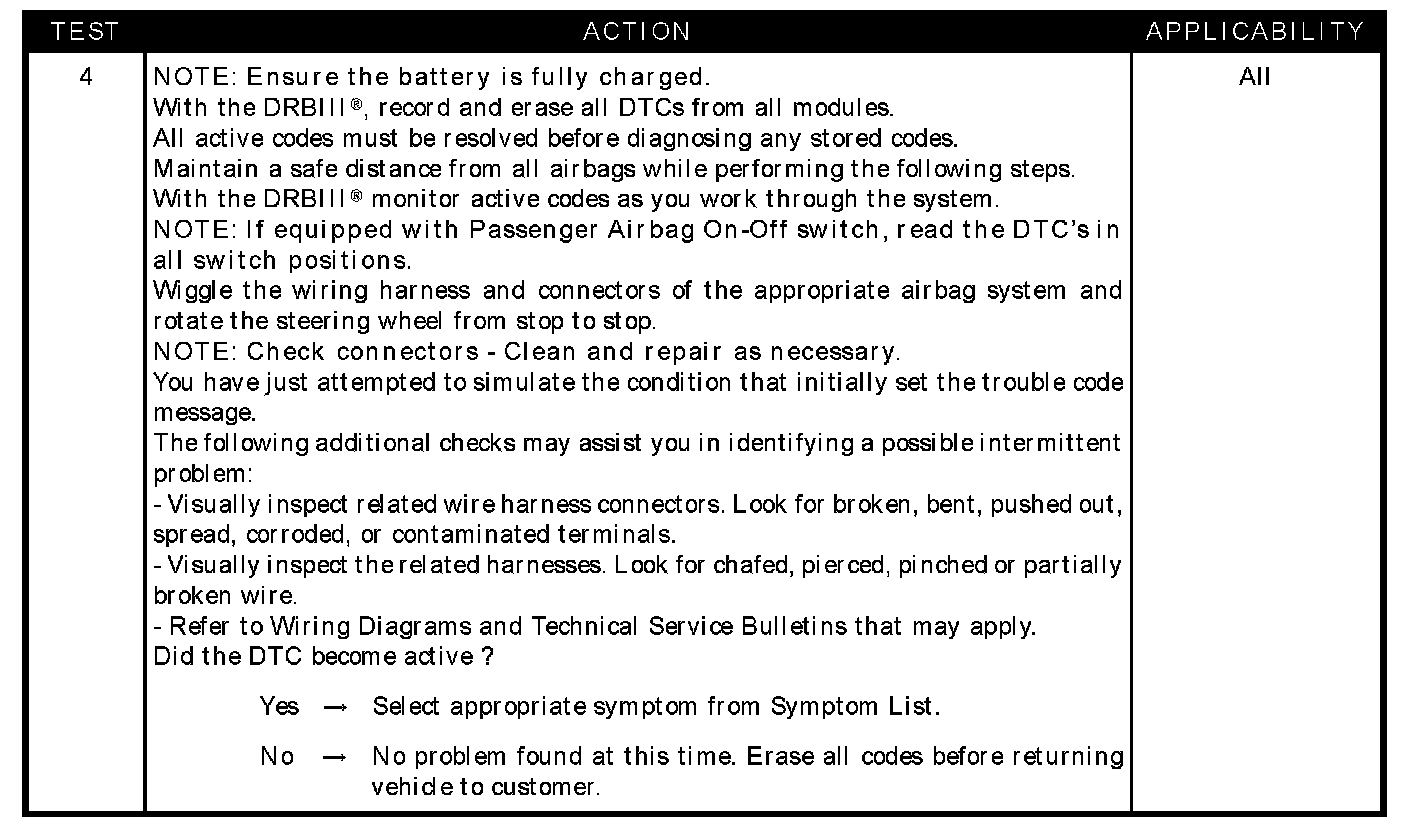

Test 4:

SYMPTOM
SEAT SQUIB CIRCUIT OPEN

WHEN MONITORED
With the ignition is On, the SIACM monitors the resistance of the Seat Squib circuits.

SET CONDITION
When the SIACM detects an open circuit or high resistance on the Seat Squib circuits.

POSSIBLE CAUSES
- Seat airbag open
- Seat squib line 1 or line 2 circuit open
- SIACM, seat squib circuit open
- Stored code or intermittent condition
- Active code present
