Passenger Squib 1 Circuit Shorted

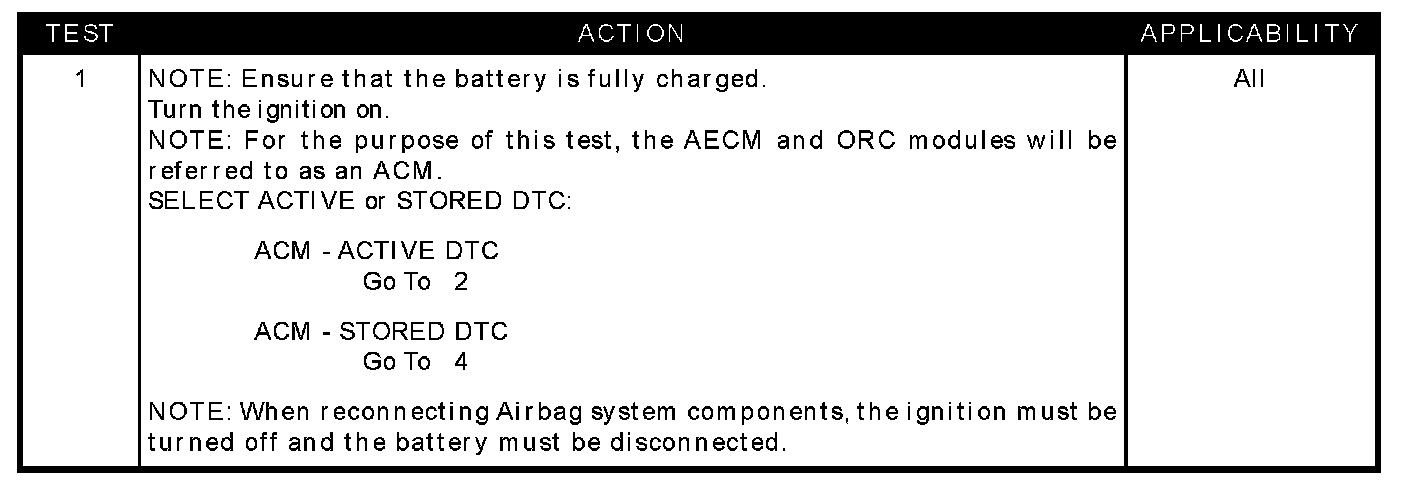

Test 1:

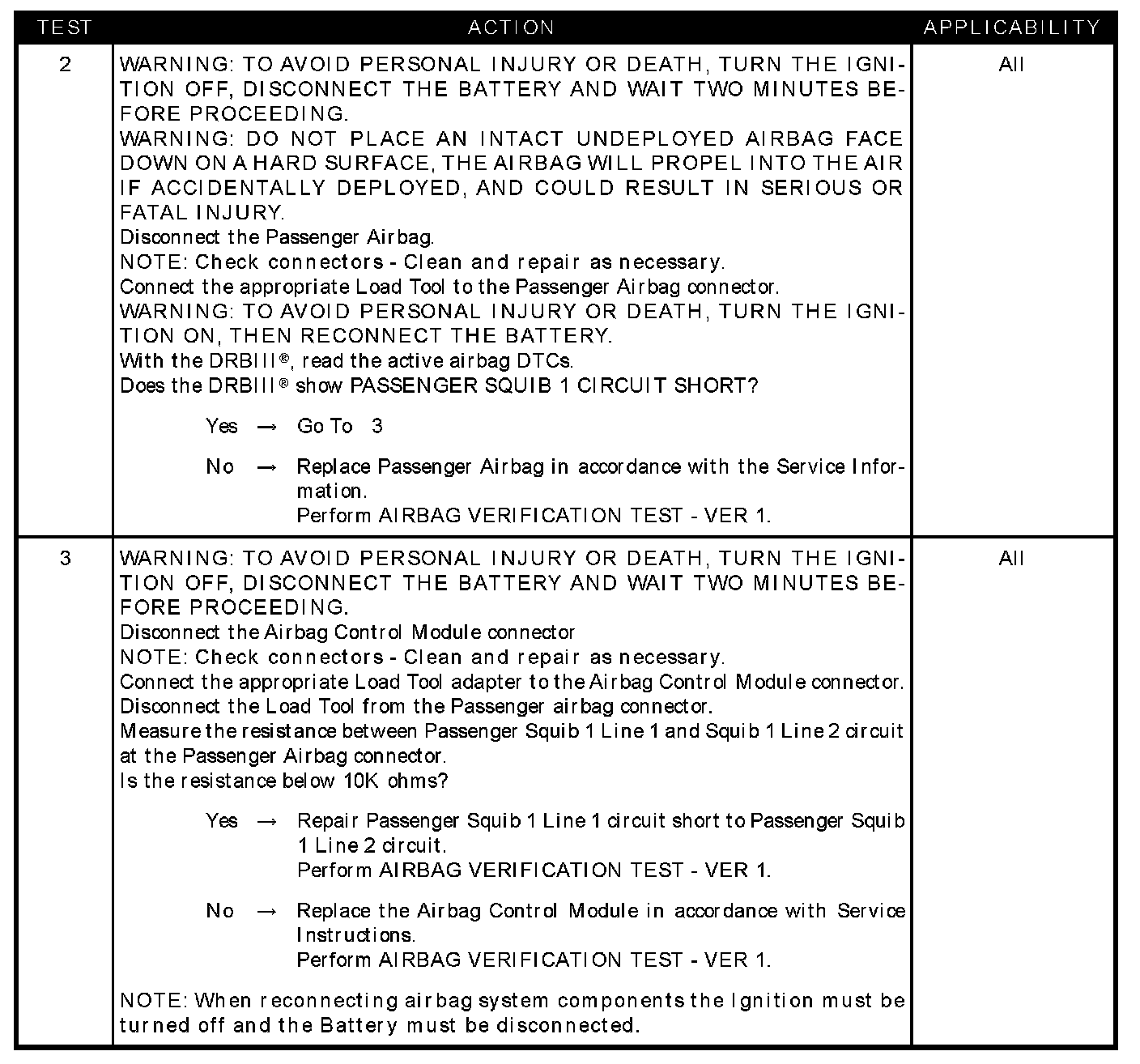

Test 2 - 3:

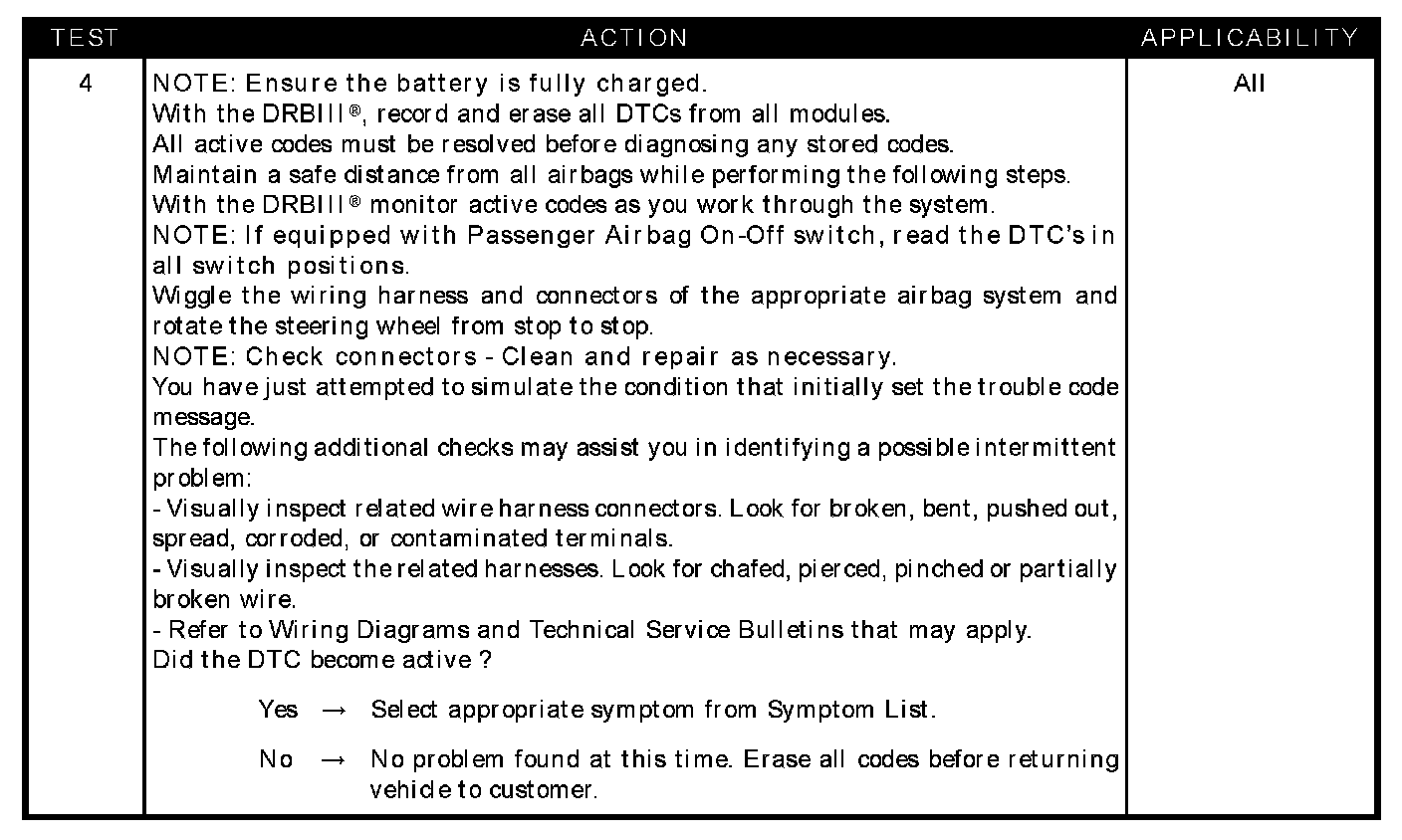

Test 4:

SYMPTOM
PASSENGER SQUIB 1 CIRCUIT SHORT

WHEN MONITORED
When the ignition is on, the ACM monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
The ACM has detected low resistance in the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short
- Passenger squib 1 line 1 short to line 2
- ACM, passenger squib 1 circuit short
- Stored code or intermittent condition
- Active code present
