No SKIM Messages Received

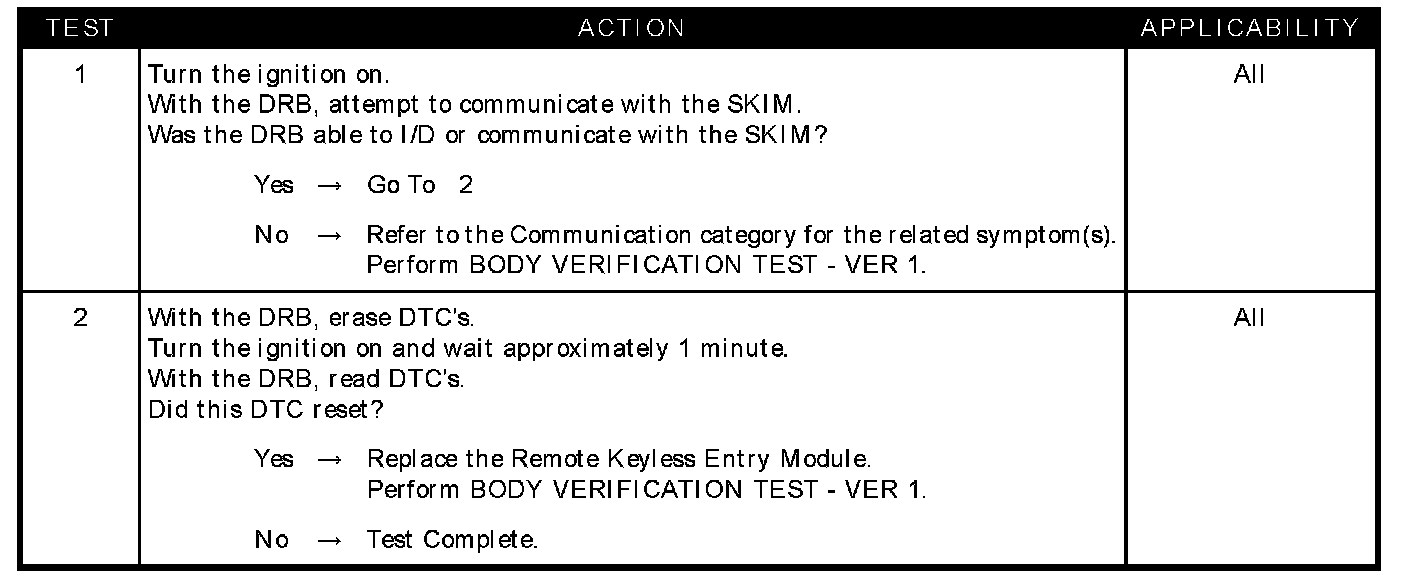

Test 1 - 2:
SYMPTOM
NO SKIM MESSAGES RECEIVED
WHEN MONITORED
With the ignition on or in the run position.
SET CONDITION
The RKE Module does not receive any SKIM messages for 12 seconds.
POSSIBLE CAUSES
- Attempt to communicate with the SKIM
- RKE module
