Interior Decklid Release Switch Shorted or Stuck

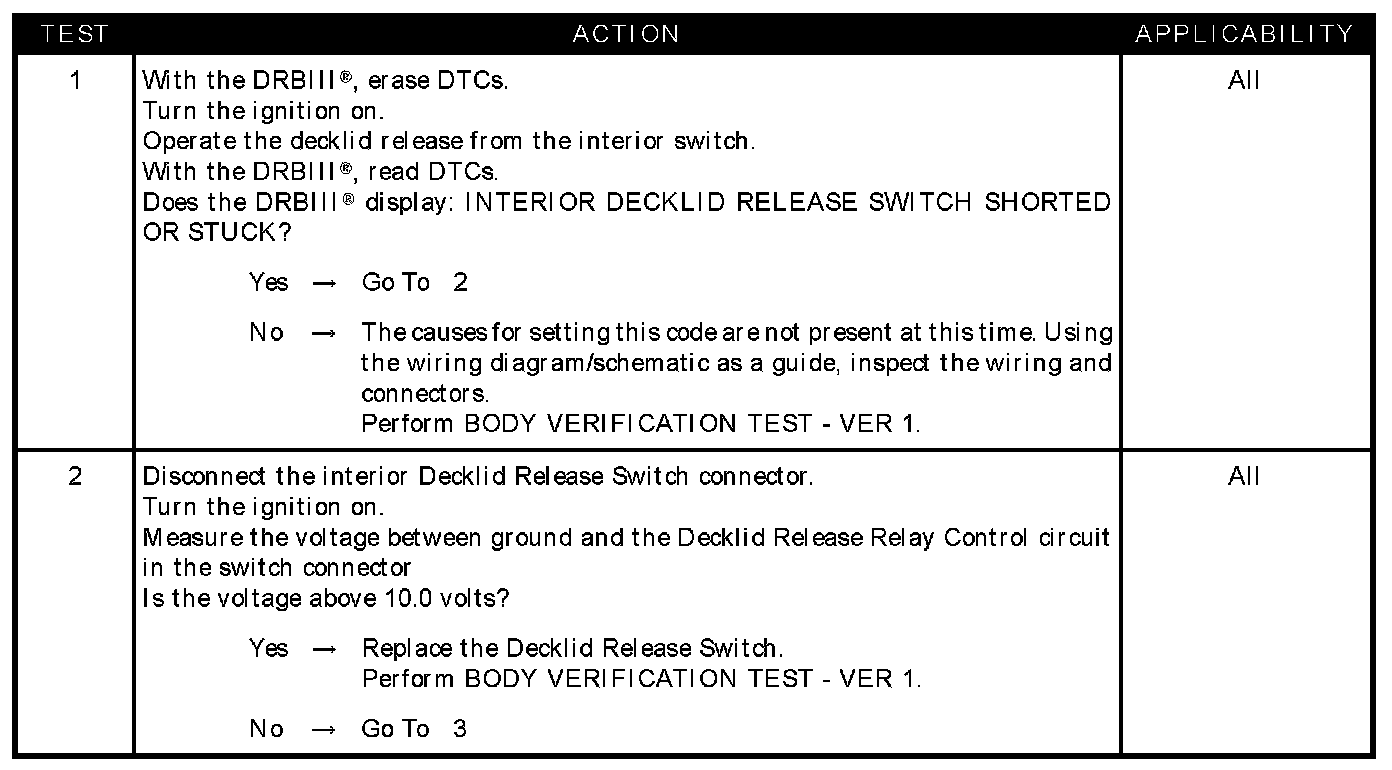

Test 1 - 2:

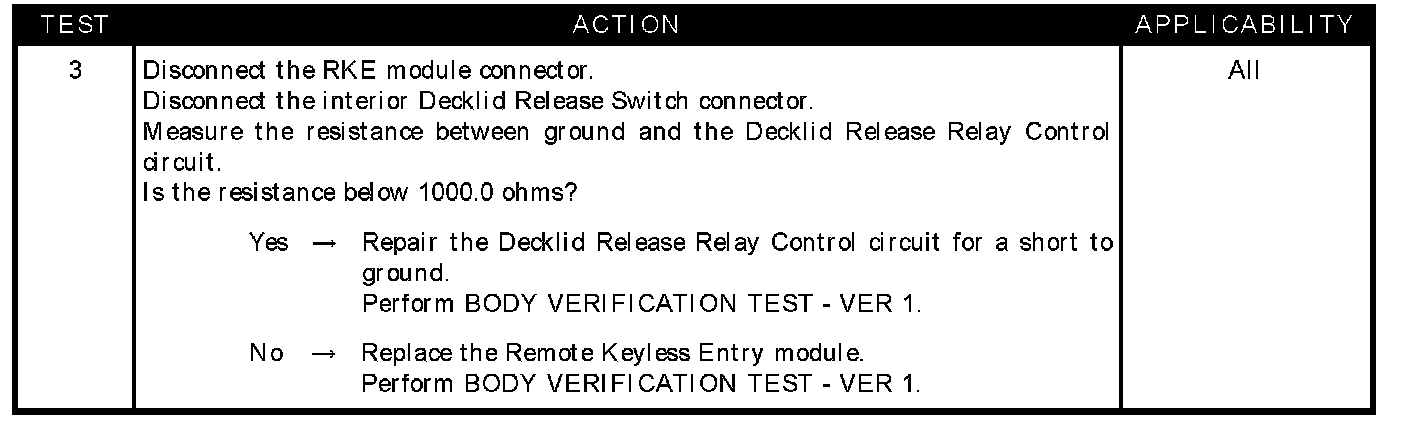

Test 3:






SYMPTOM
INTERIOR DECKLID RELEASE SWITCH SHORTED OR STUCK

WHEN MONITORED
Whenever the RKE module is connected and the battery is above 10.0 volts.

SET CONDITION
When a decklid release input is present for more than 8 seconds.

POSSIBLE CAUSES
- DTC present
- Decklid release switch short to ground.
- Decklid release relay control circuit short to ground.
- Remote keyless entry module - shorted
