Panel Dimmer Open

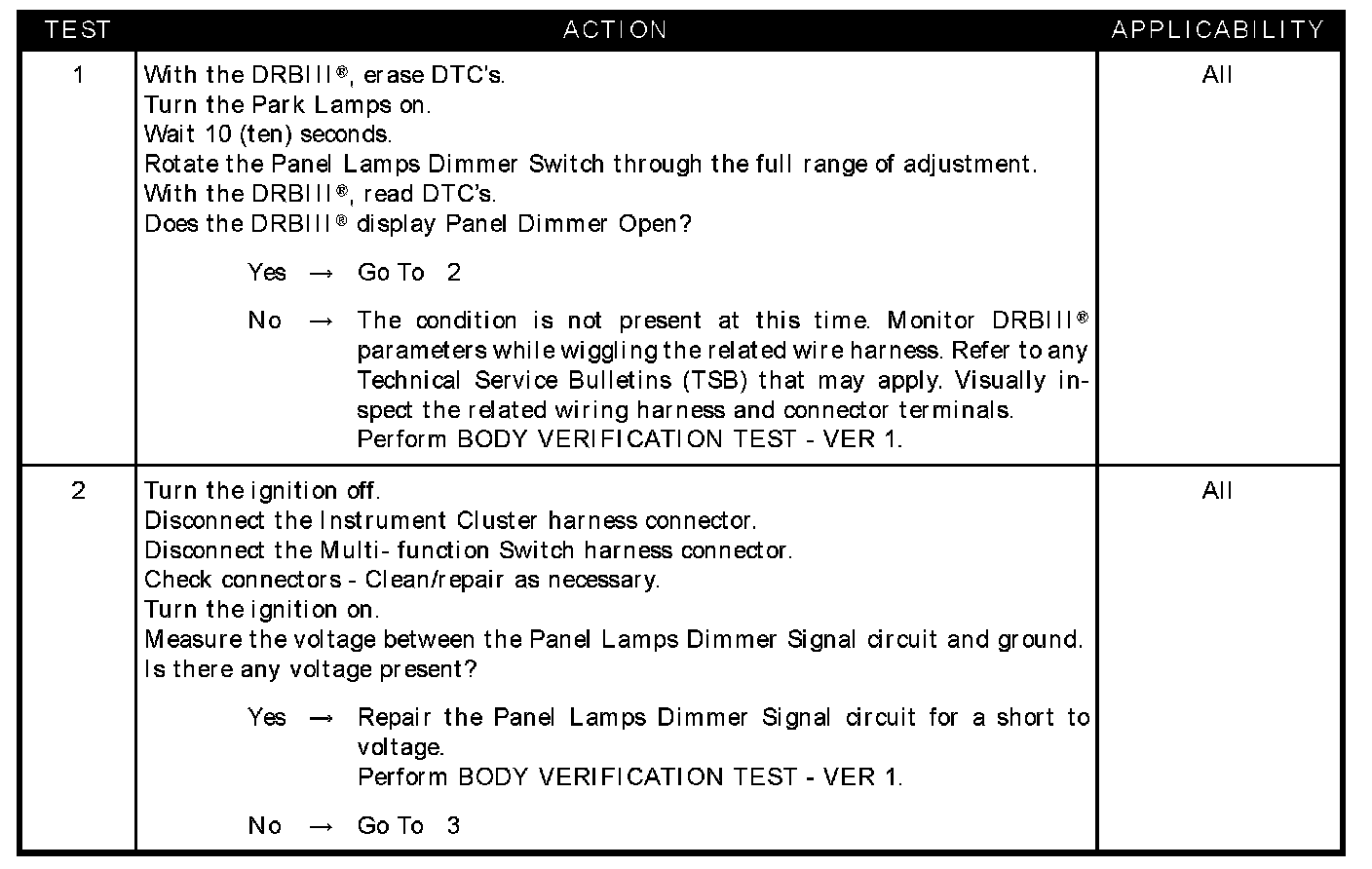

Test 1 - 2:

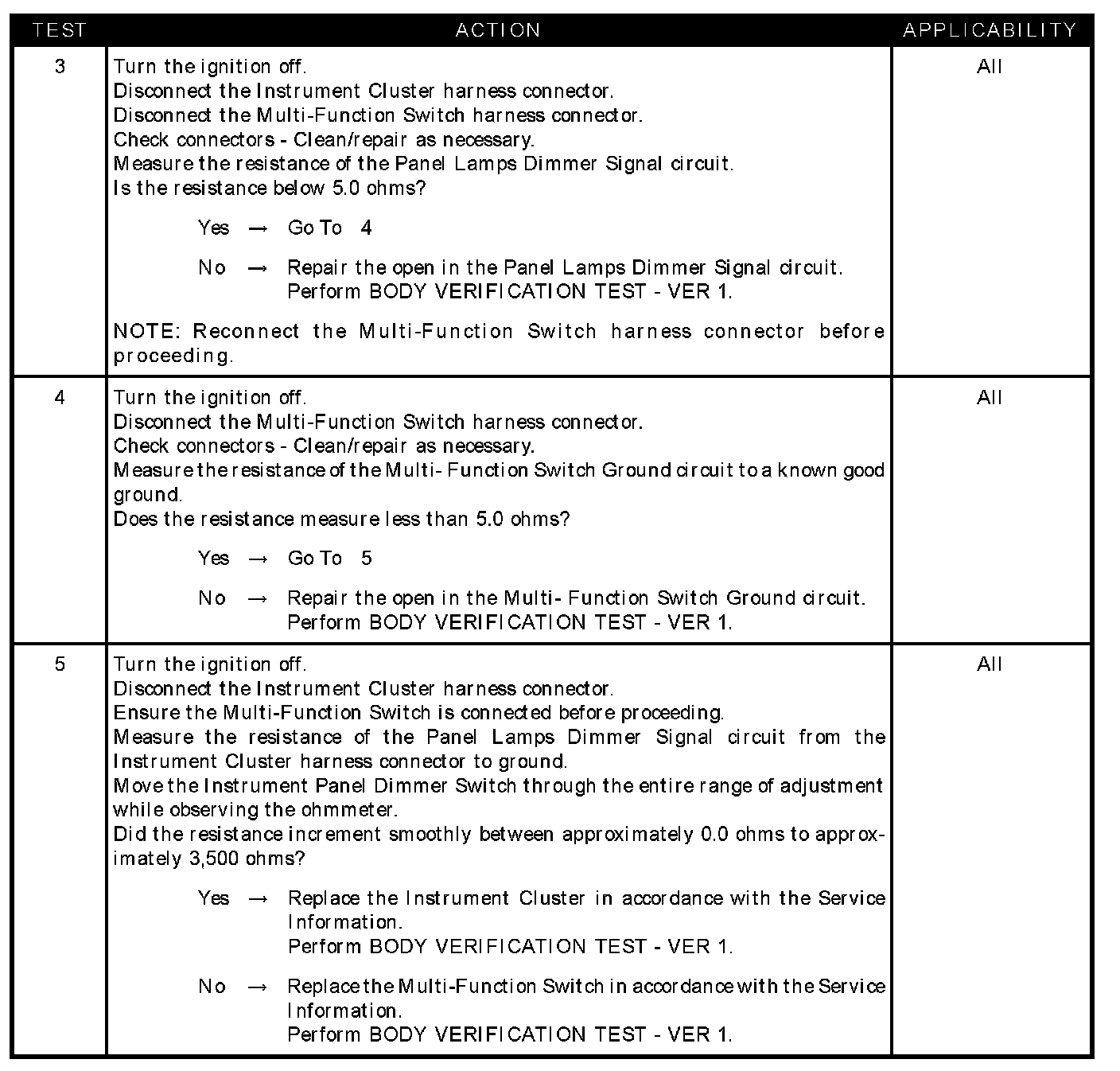

Test 3 - 5:

SYMPTOM
PANEL DIMMER OPEN

WHEN MONITORED
When the ignition is on.

SET CONDITION
The Instrument Cluster monitors the panel lamps dimmer signal circuit for a resistance value between 0.0 ohms and approximately 3,650 ohms. When the cluster senses a value greater than 30,000 ohms for more than 5 seconds, this code will set. When this condition occurs, the cluster illumination will default to full brightness.

POSSIBLE CAUSES
- Intermittent condition
- Panel lamps dimmer signal circuit short to voltage
- Panel lamps dimmer signal circuit open
- Multi-function switch
- Multi-function switch ground circuit open
- Instrument cluster
