No PCI BUS Transmission

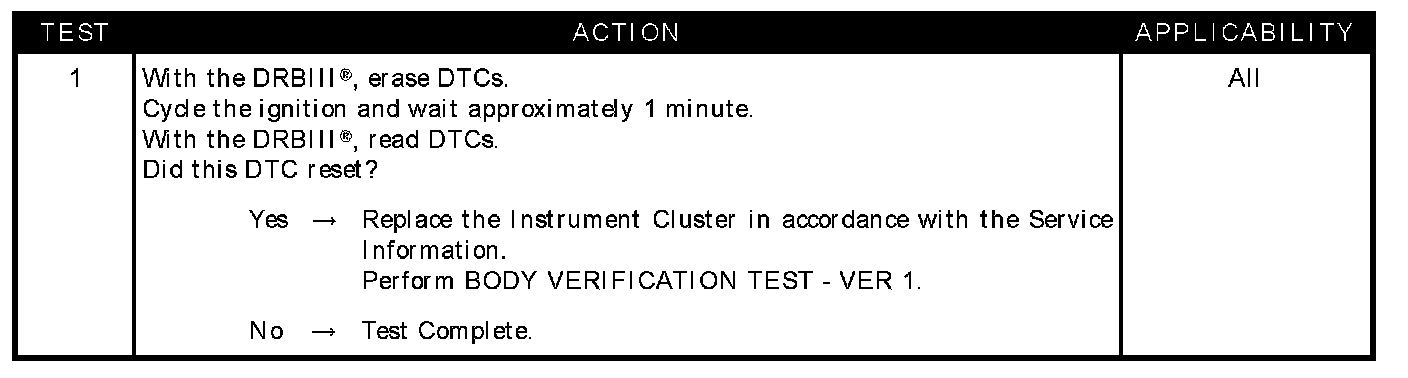

Test 1:

SYMPTOM
NO PCI BUS TRANSMISSION

TEST NOTE
This symptom is diagnosed using the test CLUSTER BUS TX SHUTDOWN

WHEN MONITORED
Continuous.

SET CONDITION
The Instrument Cluster microprocessor fails the loop-back test on the PCI Bus.

POSSIBLE CAUSES
- Instrument cluster
