EATX Mismatch

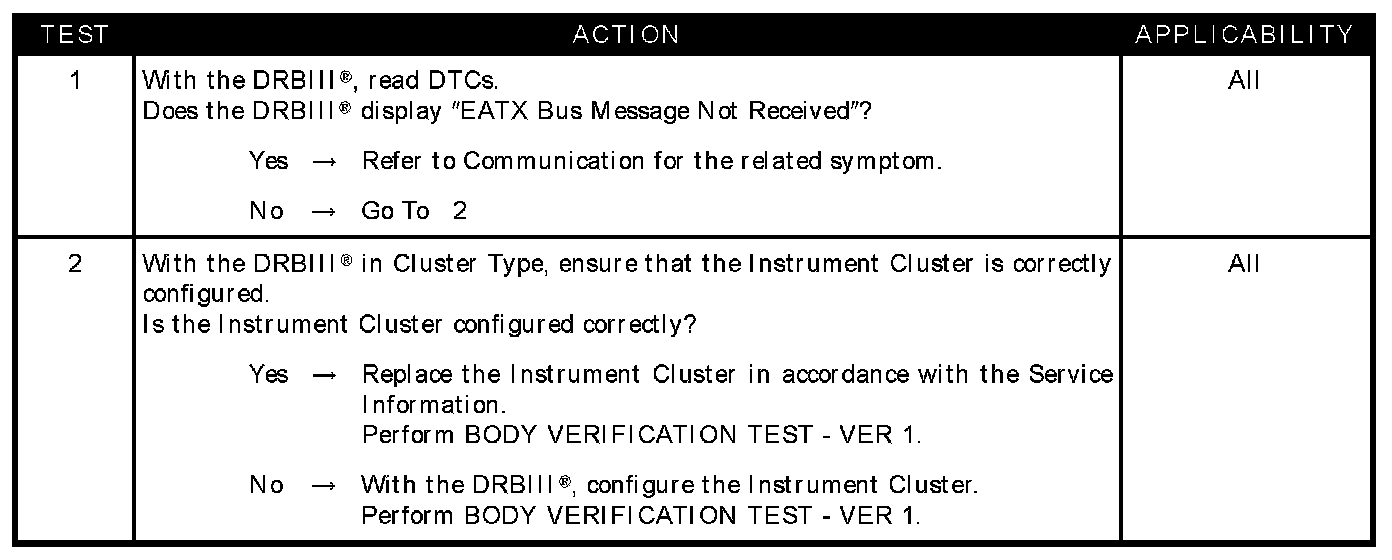

Test 1 - 2:

SYMPTOM
EATX MISMATCH

WHEN MONITORED
With the ignition on.

SET CONDITION
The Instrument Cluster detects that the configuration programmed by the plant does not equal the configuration of the cluster.

POSSIBLE CAUSES
- EATX BUS message DTC present
- Instrument cluster configuration incorrect
- Instrument cluster
