Battery Loss

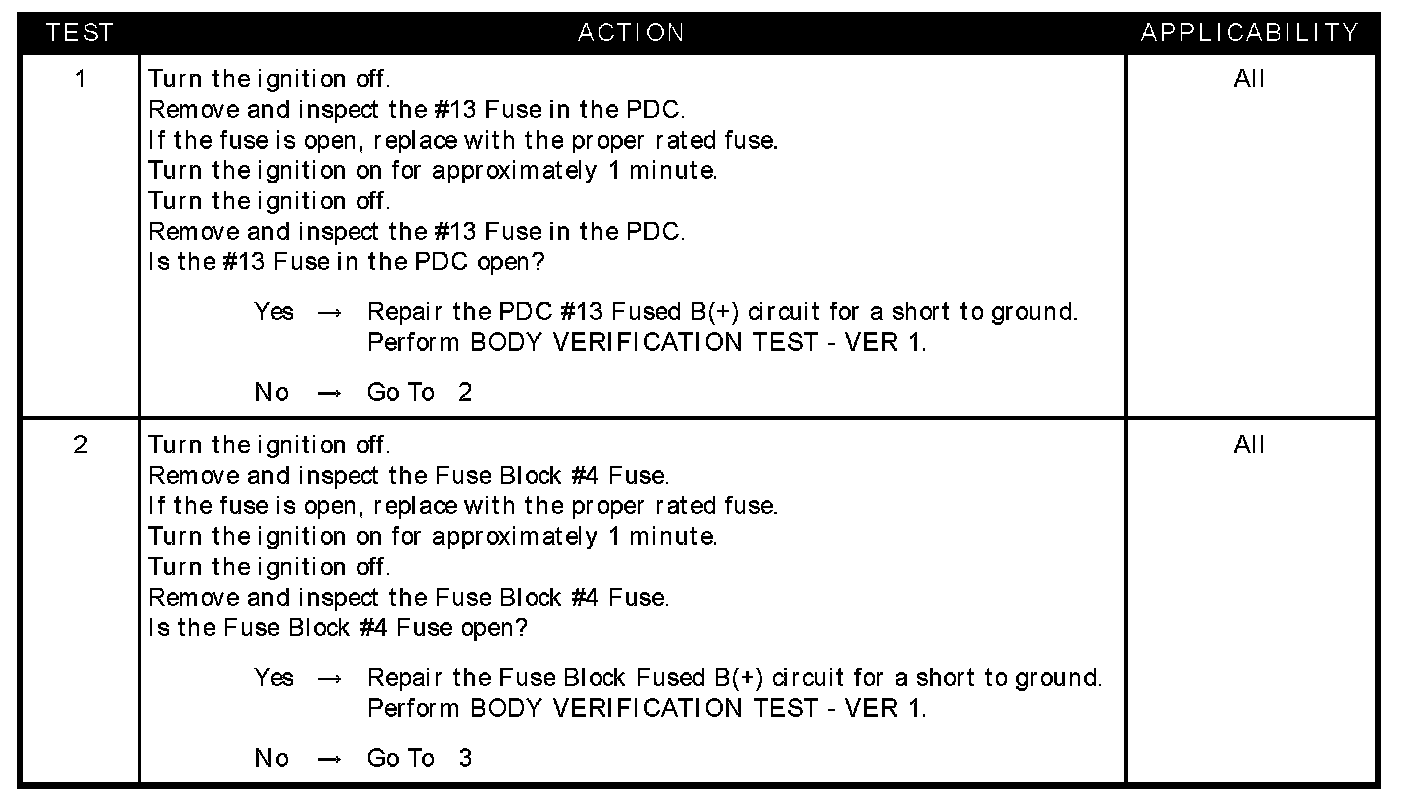

Test 1 - 2:

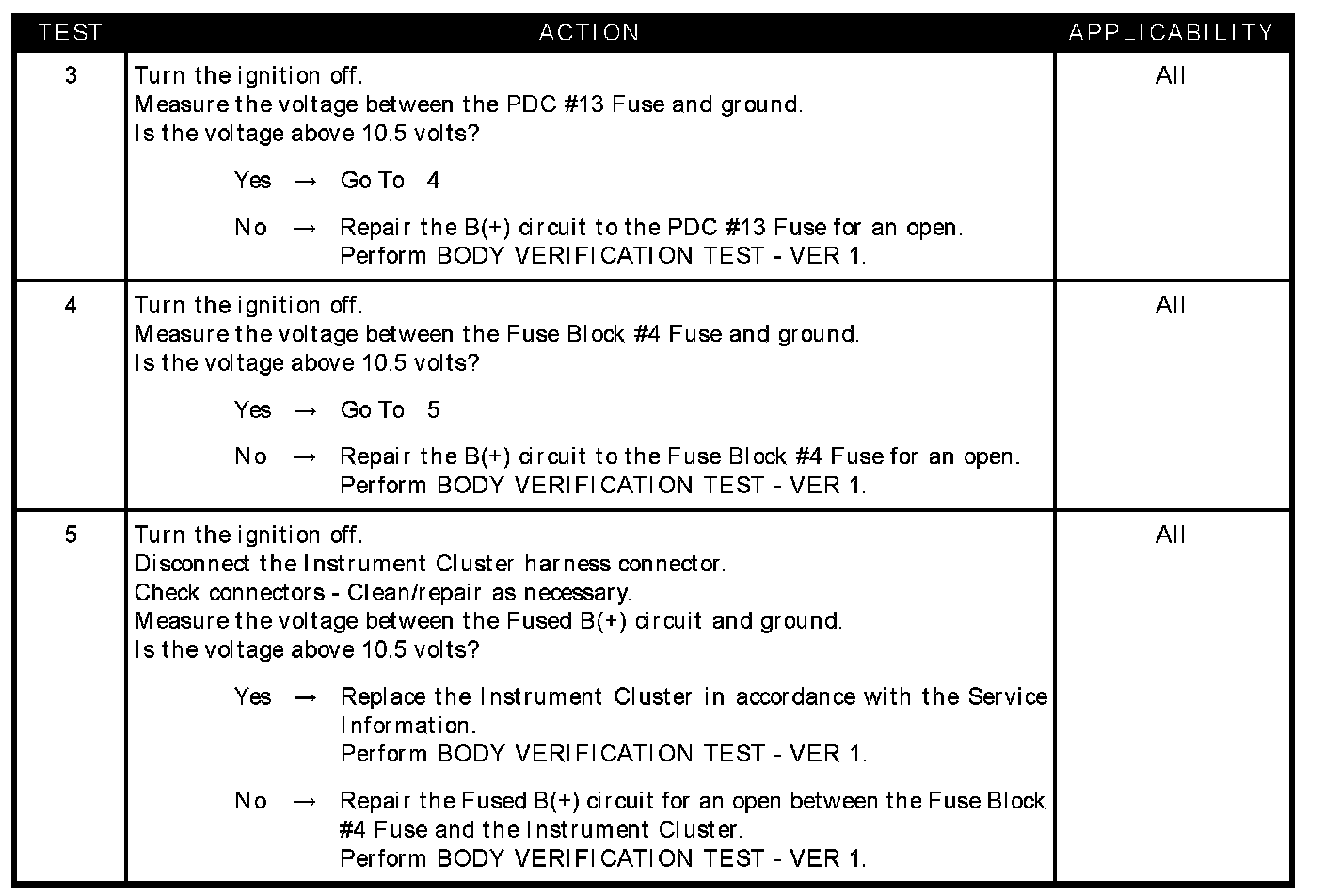

Test 3 - 5:

SYMPTOM
BATTERY LOSS

WHEN MONITORED
With the ignition on.

SET CONDITION
When the Instrument Cluster detects that the ignition has been turned on but detects no Fused B(+) circuit.

POSSIBLE CAUSES
- PDC fuse #13 defective
- PDC fused B(+) circuit short to ground
- Fuse block #4 fuse defective
- Fuse block fused B(+) circuit short to ground
- B(+) to PDC #13 fuse open
- B(+) to fuse block #4 fuse open
- Fused B(+) circuit to instrument cluster open
- Instrument cluster
