ABS Indicator Circuit Open

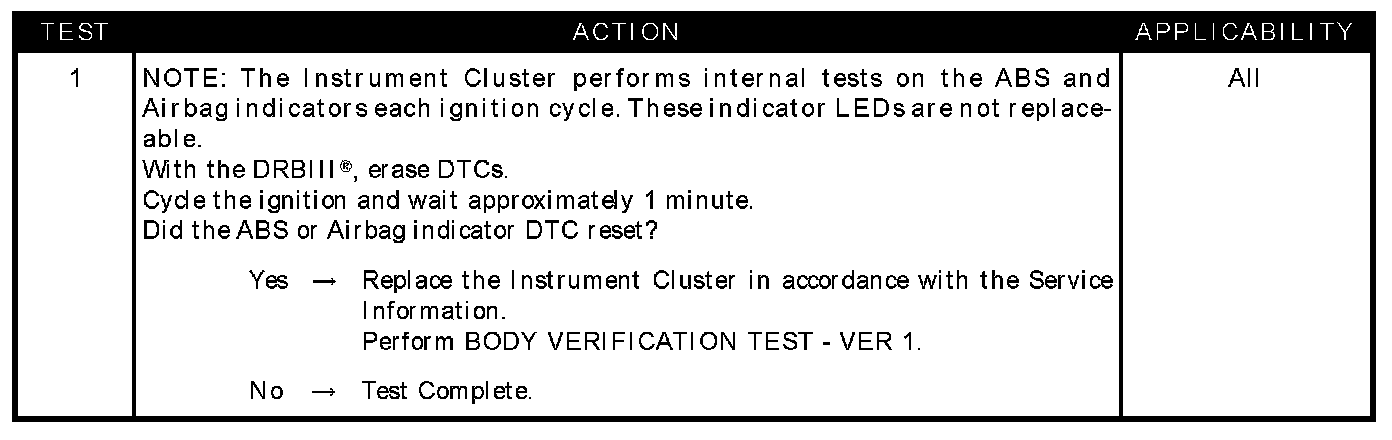

Test 1:

SYMPTOM
ABS INDICATOR CIRCUIT OPEN

WHEN MONITORED
With the ignition on and requested to turn on by the ABS module.

SET CONDITION
The Instrument Cluster detects an open during the internal test on the indicator.

POSSIBLE CAUSES
- Instrument cluster
