Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Compass/Mini-Trip Computer

Compass/Mini-Trip Computer

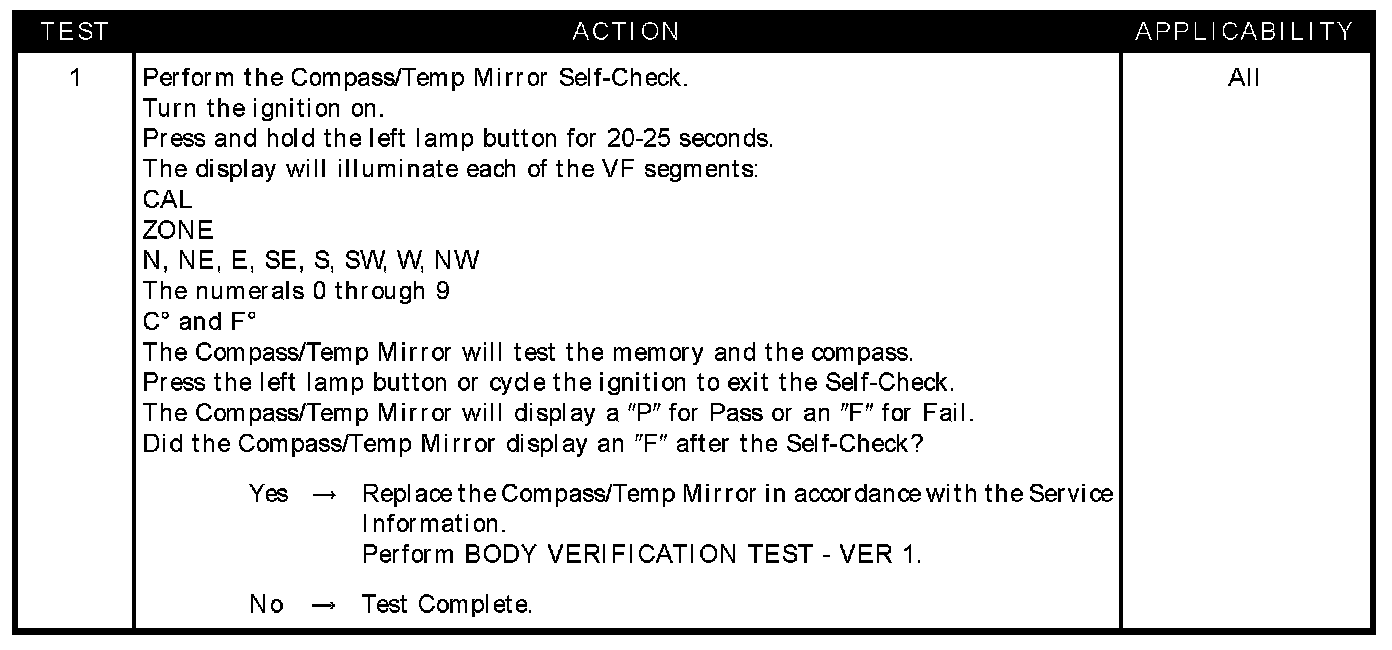

Test 1:

SYMPTOM
COMPASS/TEMPERATURE MIRROR INTERNAL FAILURE

POSSIBLE CAUSES
- Compass/TEMP mirror
