No Response From Right SIACM

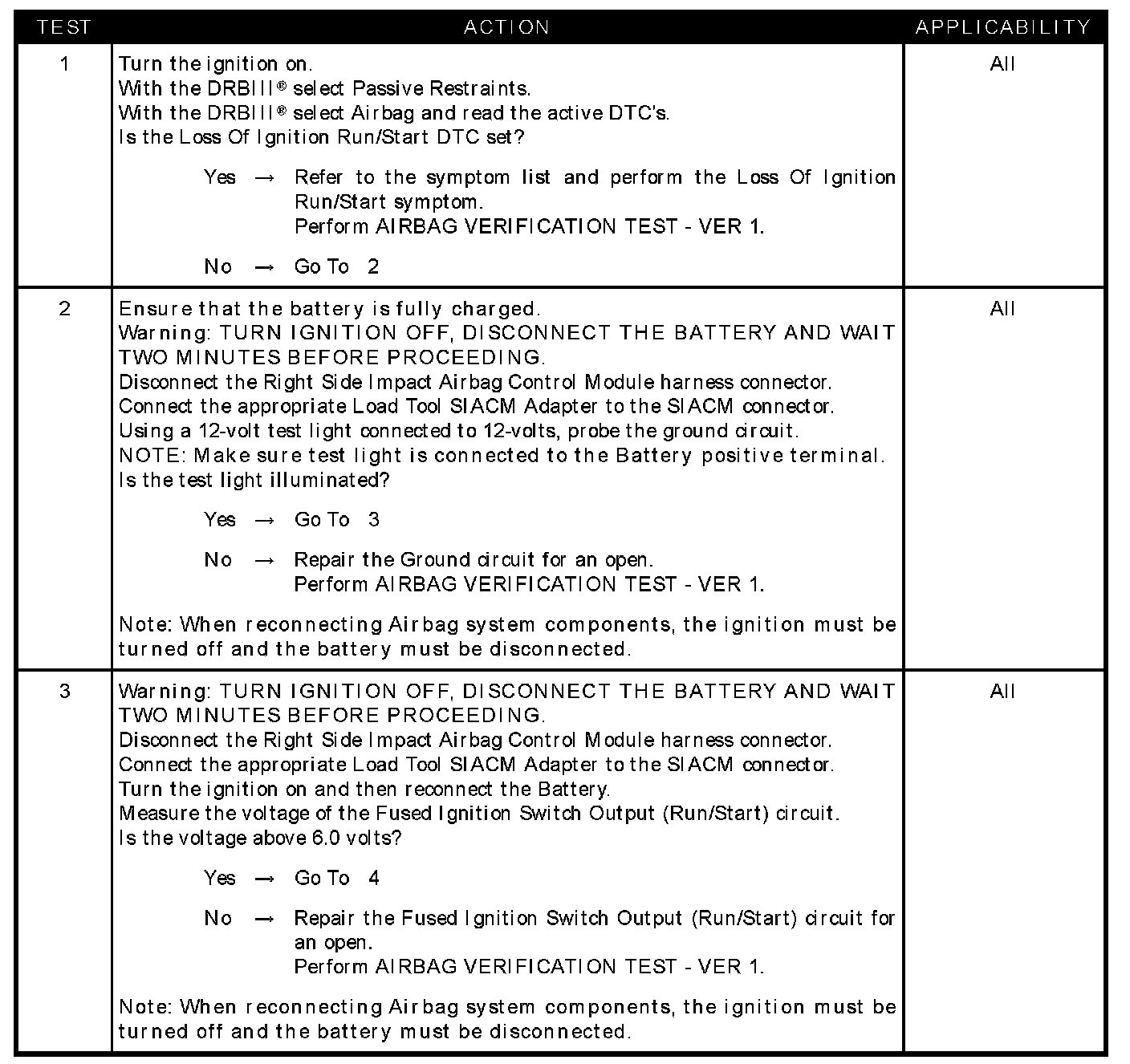

Test 1 - 3:

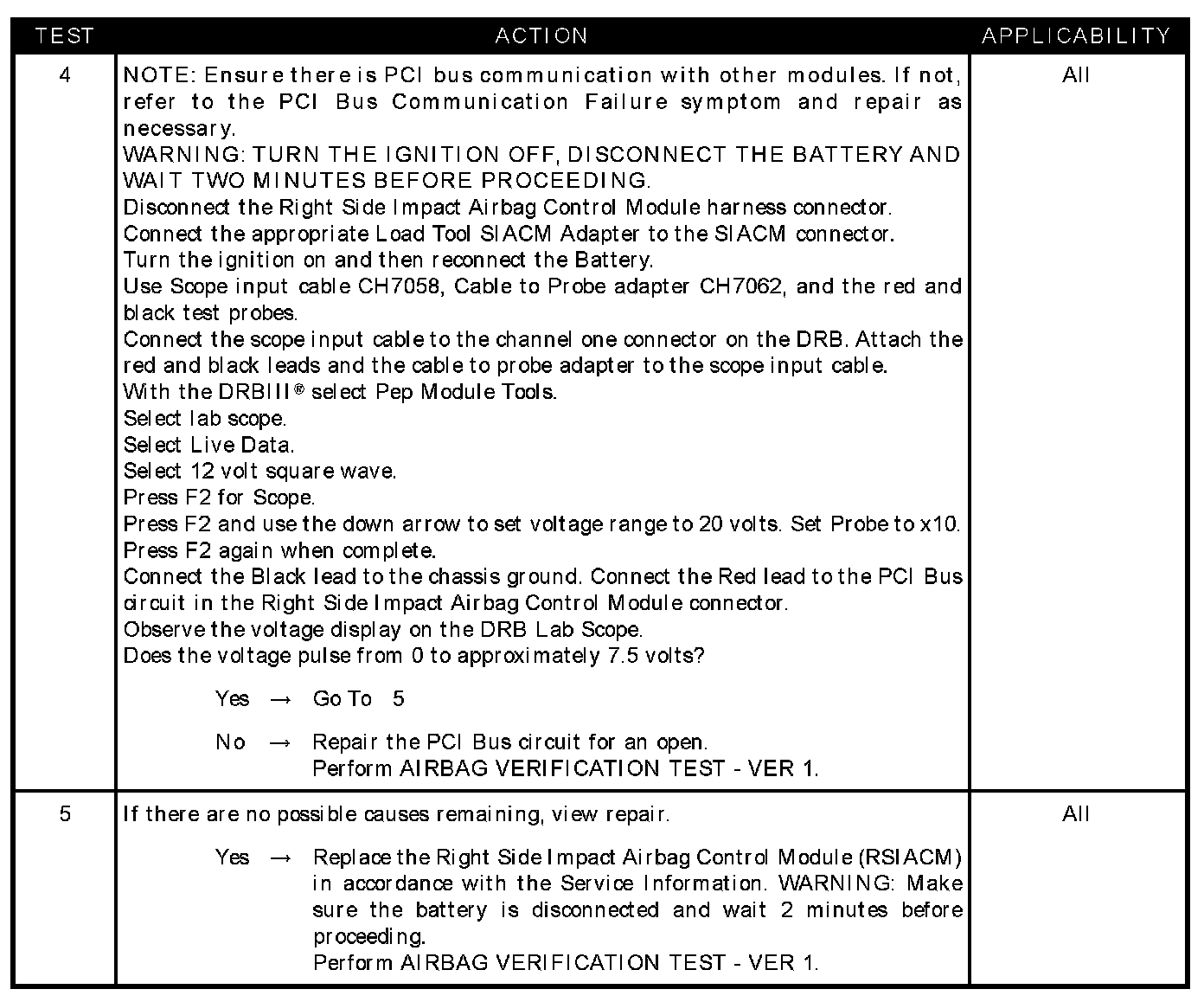

Test 4 - 5:

SYMPTOM
NO RESPONSE FROM RIGHT SIACM

POSSIBLE CAUSES
- Interrogate ACM
- Ground circuit open
- Fused ignition switch output circuit (run/start) open
- PCI BUS circuit open
- Right side impact airbag control module
