No Response From Remote Keyless Entry

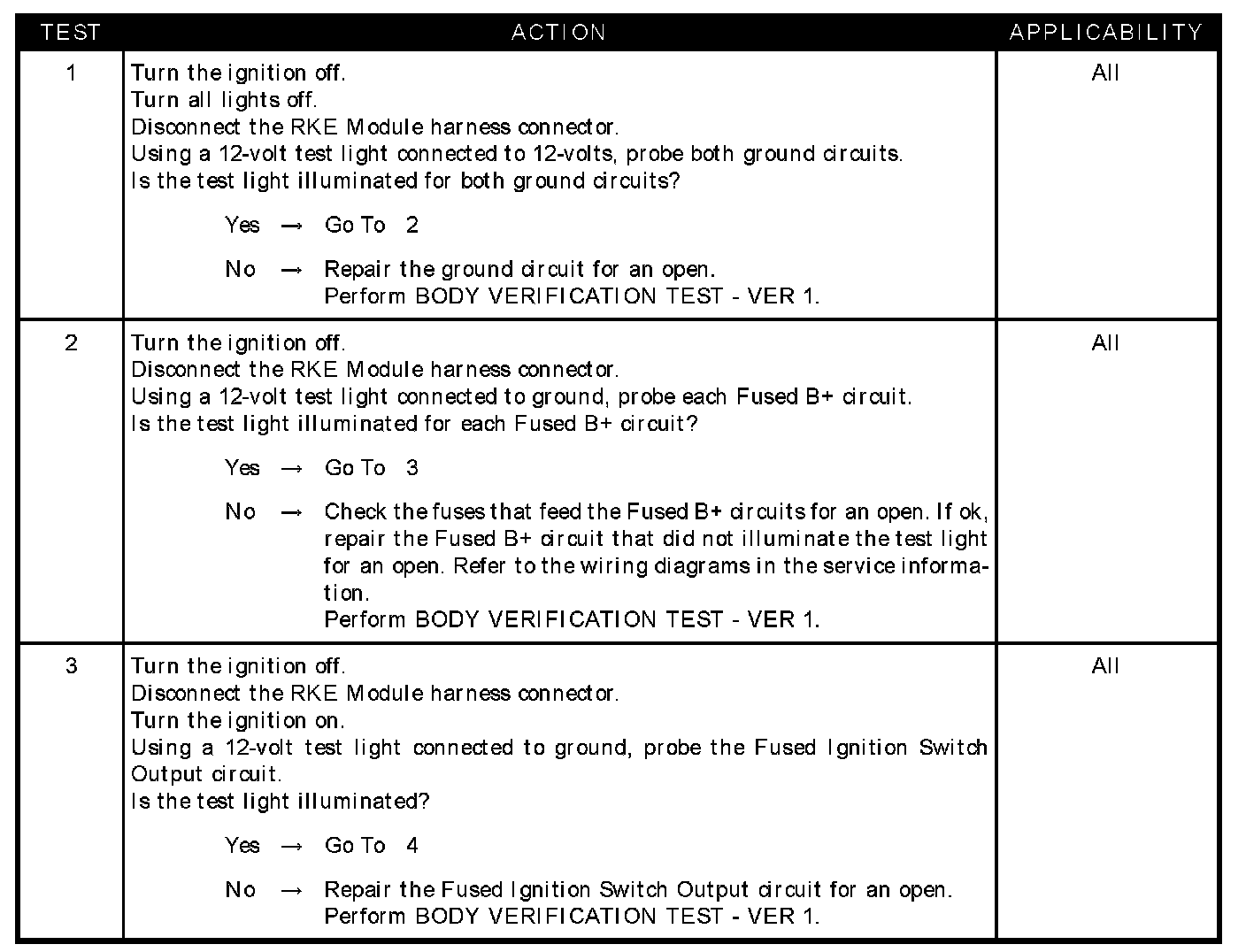

Test 1 - 3:

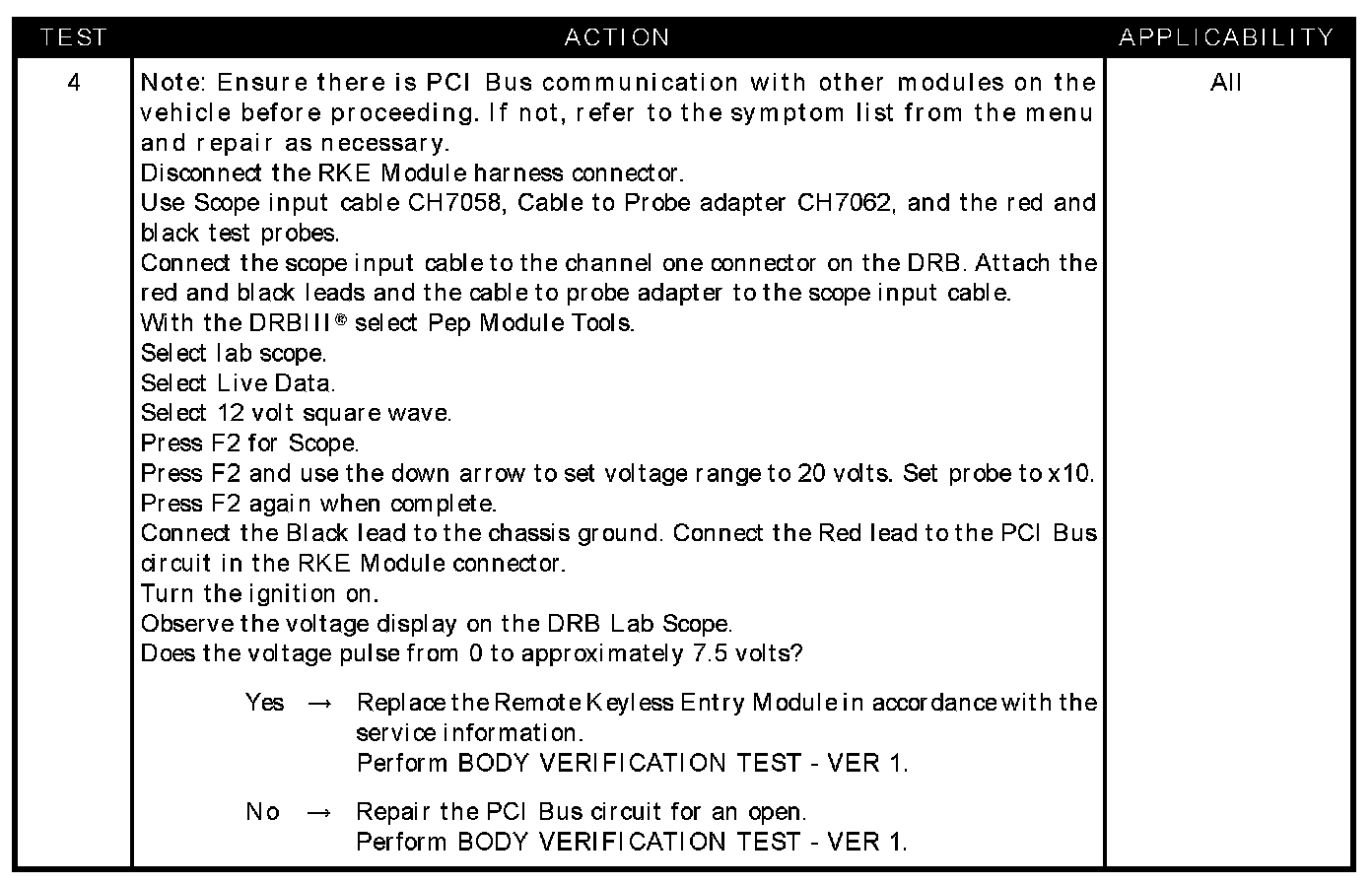

Test 4:

SYMPTOM
NO RESPONSE FROM RKE

POSSIBLE CAUSES
- Open ground circuit
- Open fused B+ circuit
- Open fused ignition switch output circuit
- Open PCI BUS circuit
- Remote keyless entry module
