No Response From Radio

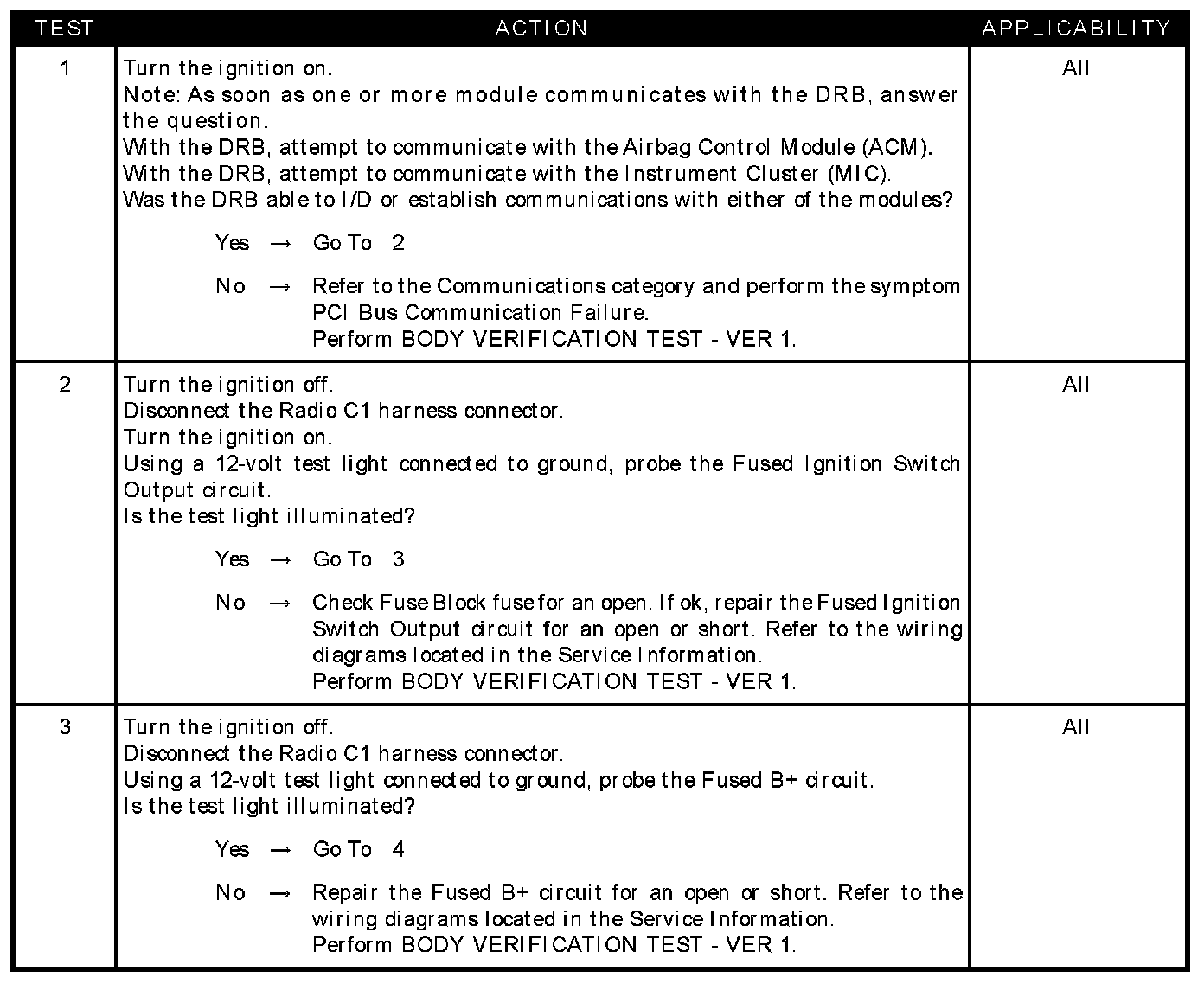

Test 1 - 3:

Test 4 - 6:

SYMPTOM
NO RESPONSE FROM RADIO

POSSIBLE CAUSES
- No response from radio
- Open fused ignition switch output circuit
- Open fused B+ circuit
- Radio ground circuit open
- Open PCI BUS circuit
- Radio
