A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Communications - Verbose Codes
>>
No Response From PCM (PCI BUS) - NGC
No Response From PCM (PCI BUS) - NGC

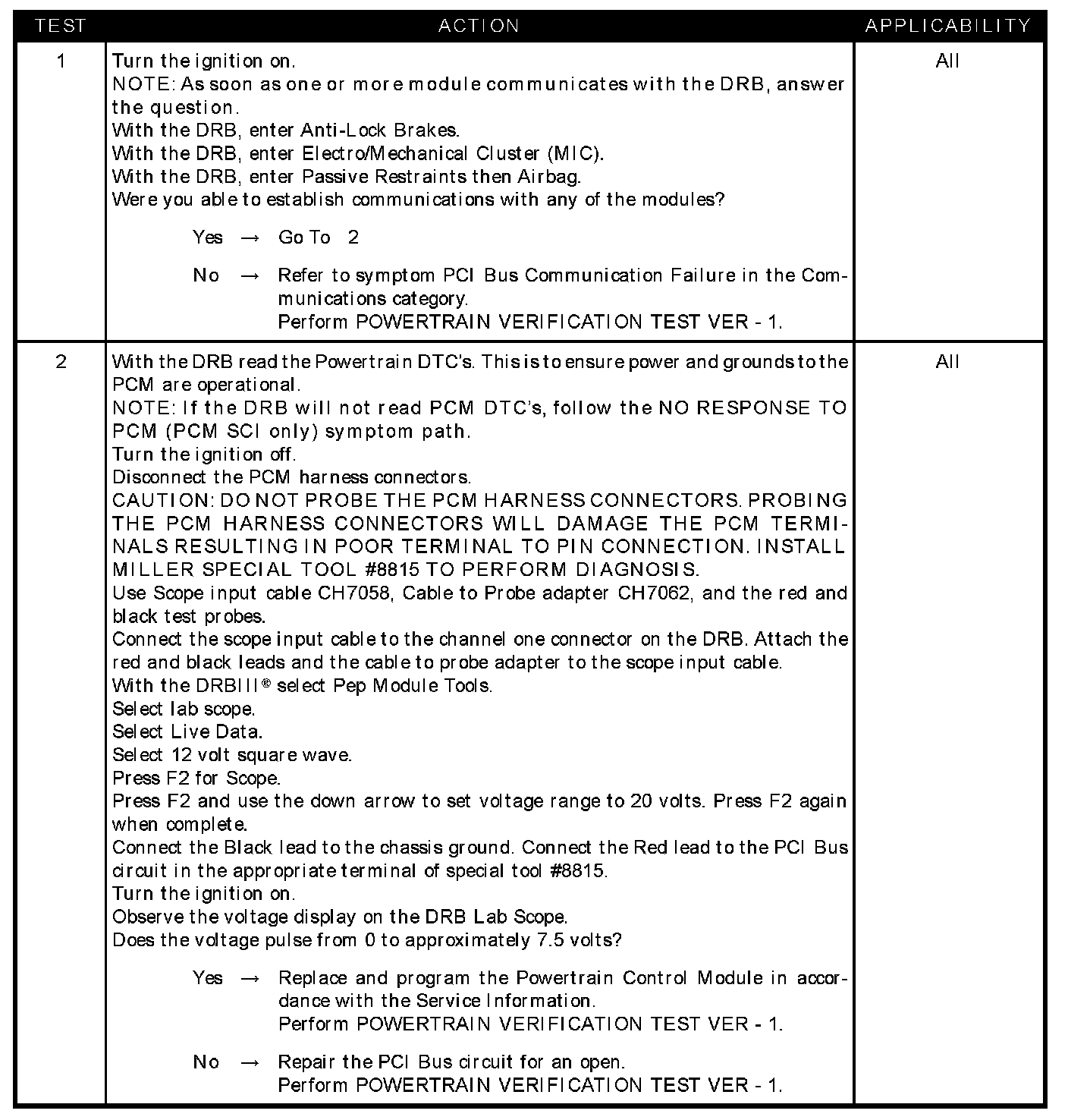

Test 1 - 2:
SYMPTOM
NO RESPONSE FROM PCM (PCI BUS) - NGC
POSSIBLE CAUSES
-
PCM PCI no response
-
Powertrain control module
-
PCI BUS circuit open
