No Response From Left SIACM

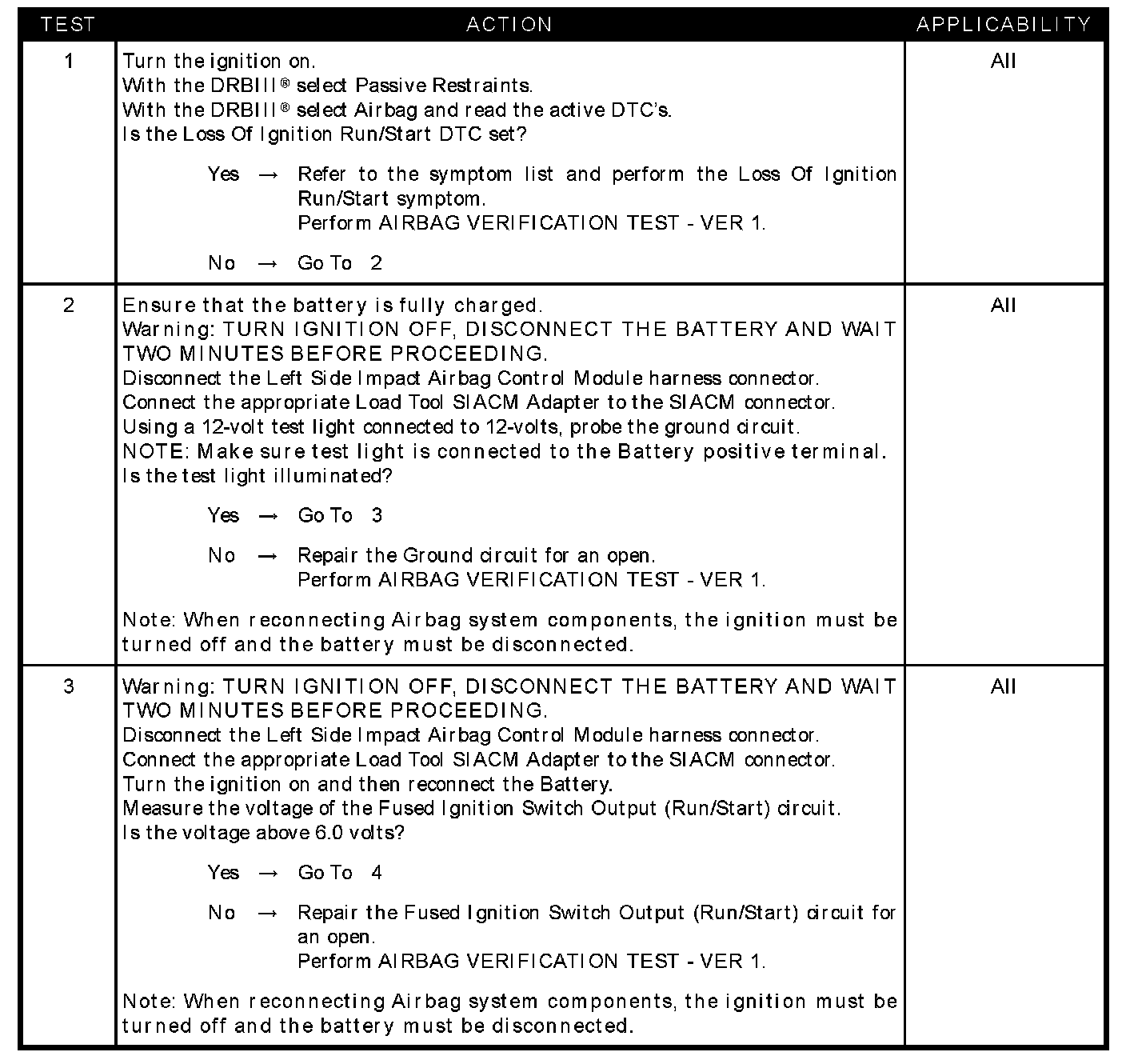

Test 1 - 3:

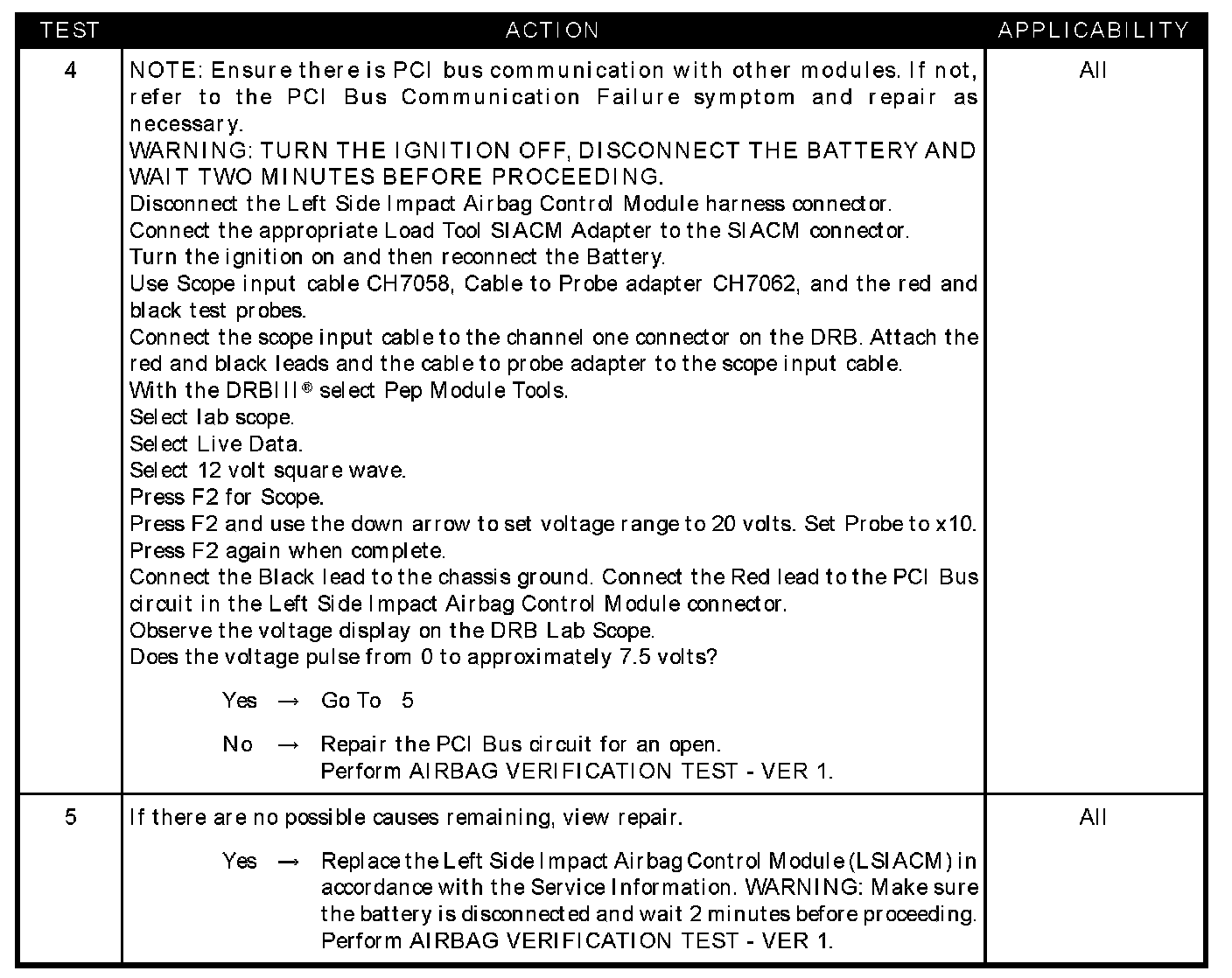

Test 4 - 5:

SYMPTOM
NO RESPONSE FROM LEFT SIACM

POSSIBLE CAUSES
- Interrogate ACM
- Ground circuit open
- Fused ignition switch output circuit (run/start) open
- PCI BUS circuit open
- Left side impact airbag control module
