No Response From Controller Antilock Brake

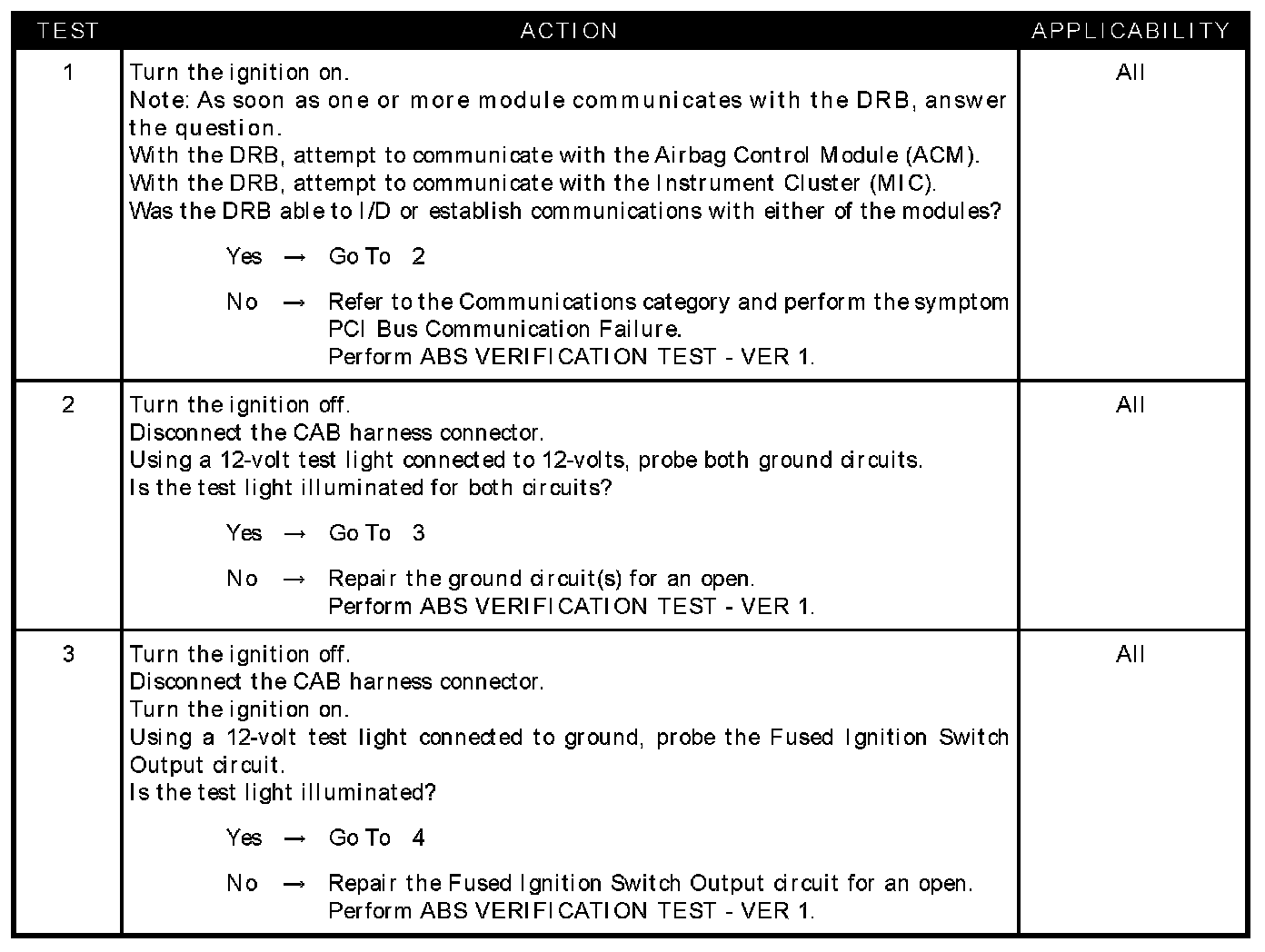

Test 1 - 3:

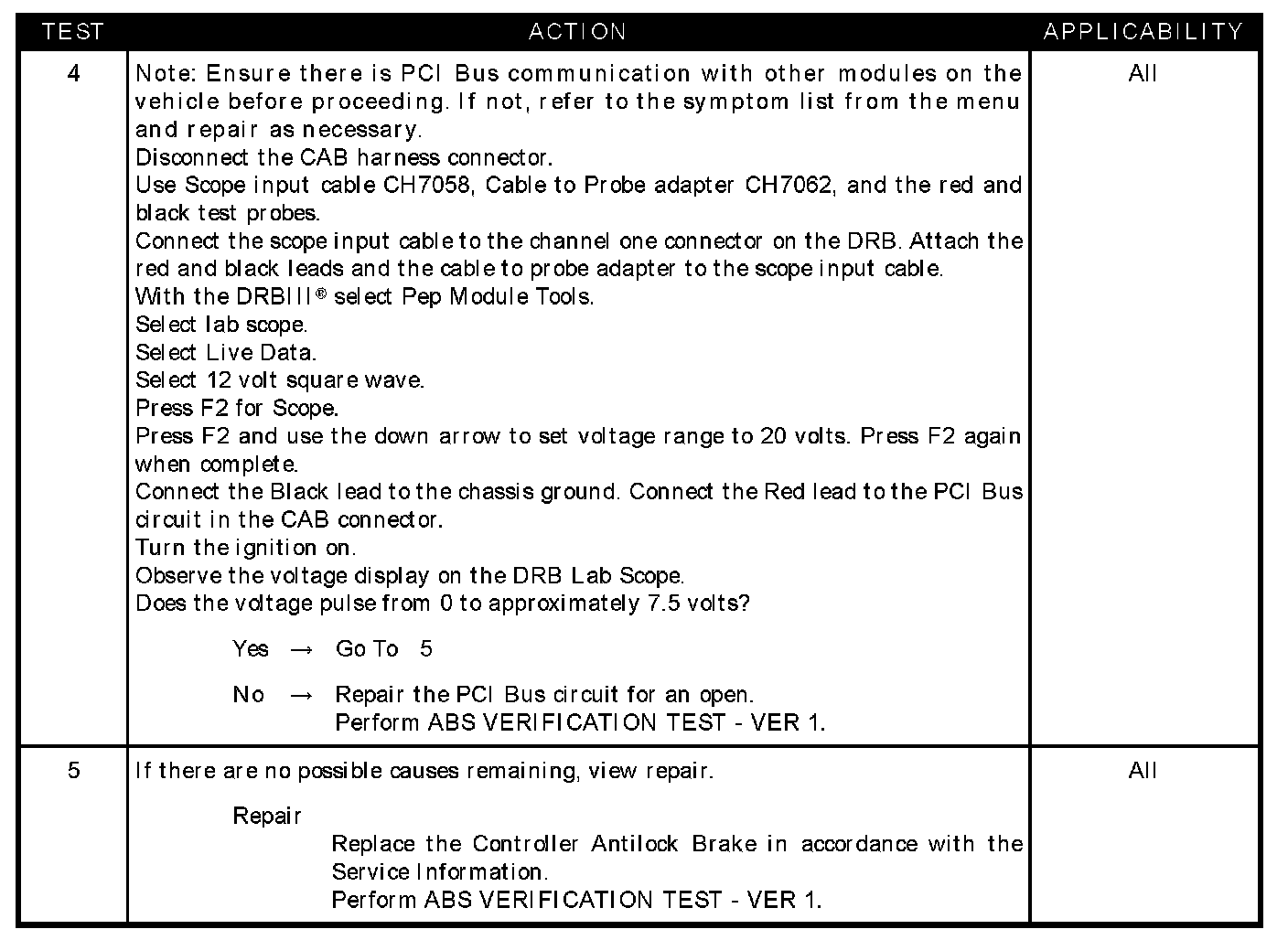

Test 4 - 5:

SYMPTOM
NO RESPONSE FROM CONTROLLER ANTILOCK BRAKE

POSSIBLE CAUSES
- No response from CAB
- Ground circuit open
- Open fused ignition switch output circuit
- Open PCI BUS circuit
- Controller antilock brake
