No Response From Compass/Temperature Mirror

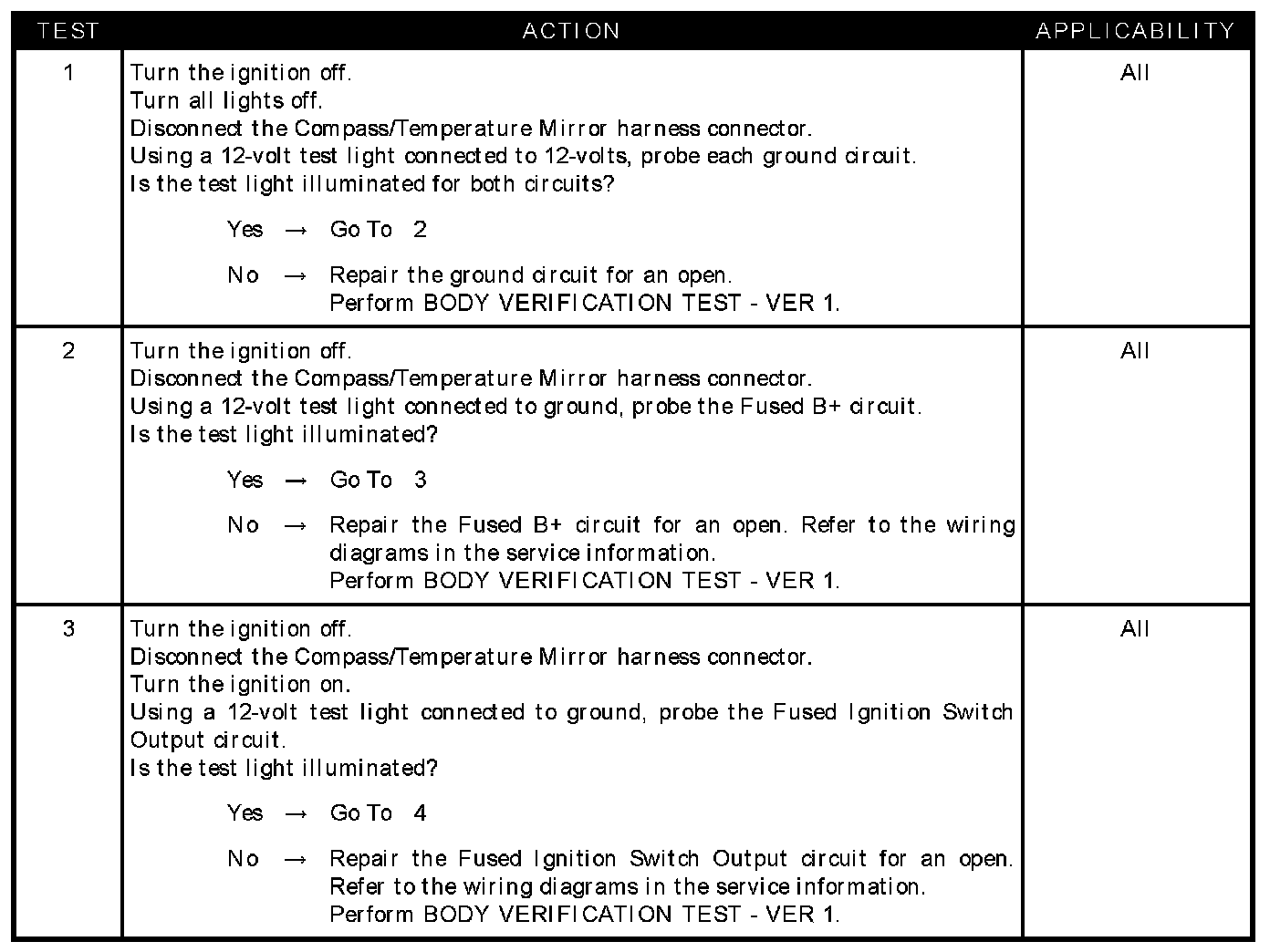

Test 1 - 3:

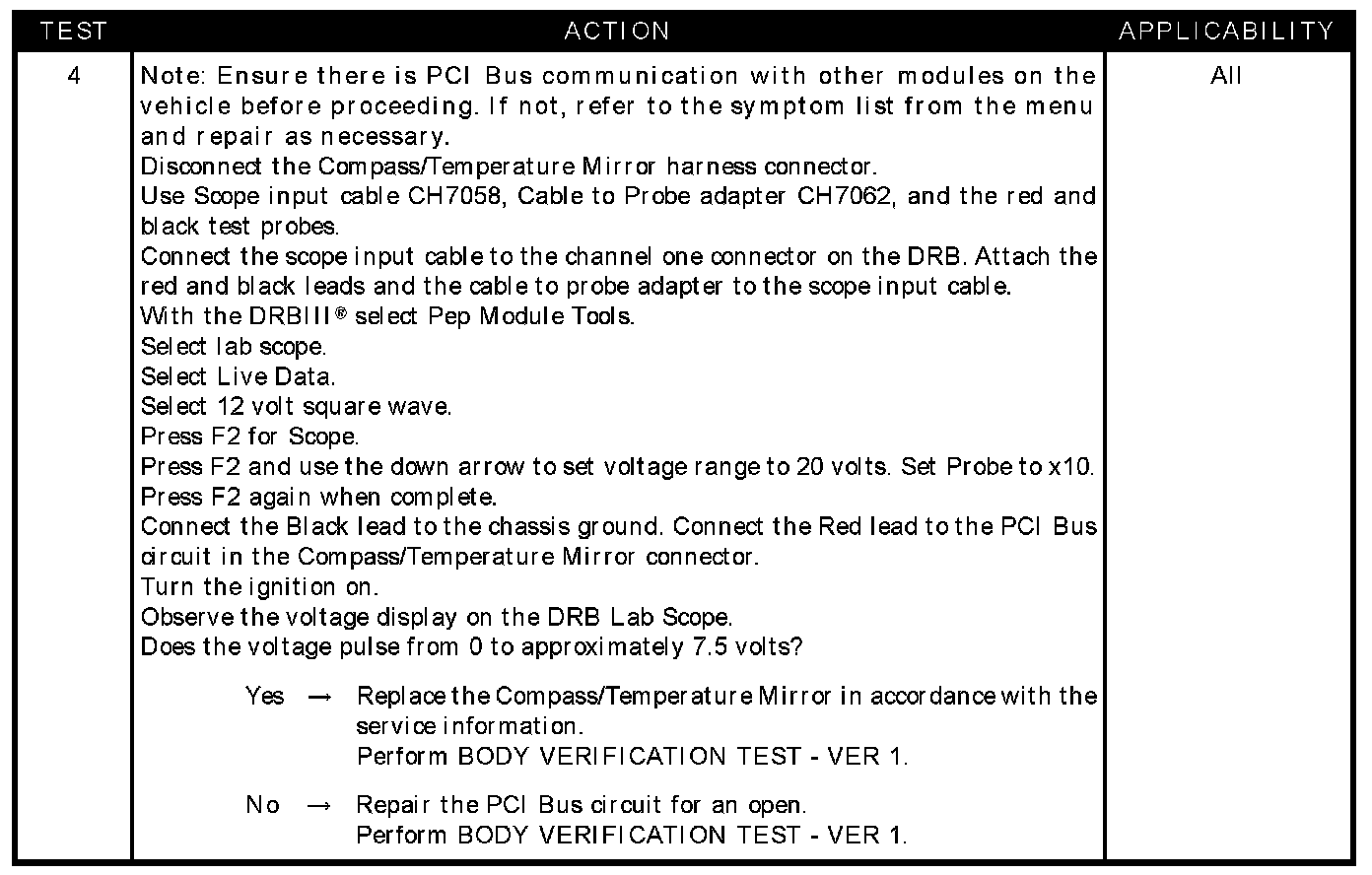

Test 4:

SYMPTOM
NO RESPONSE FROM COMPASS/TEMPERATURE MIRROR

POSSIBLE CAUSES
- Open ground circuit
- Open fused B+ circuit
- Open fused ignition switch output circuit
- Open PCI BUS circuit
- Compass/temperature mirror
