A Connector - Engine Compartment
A Connector - Engine Compartment

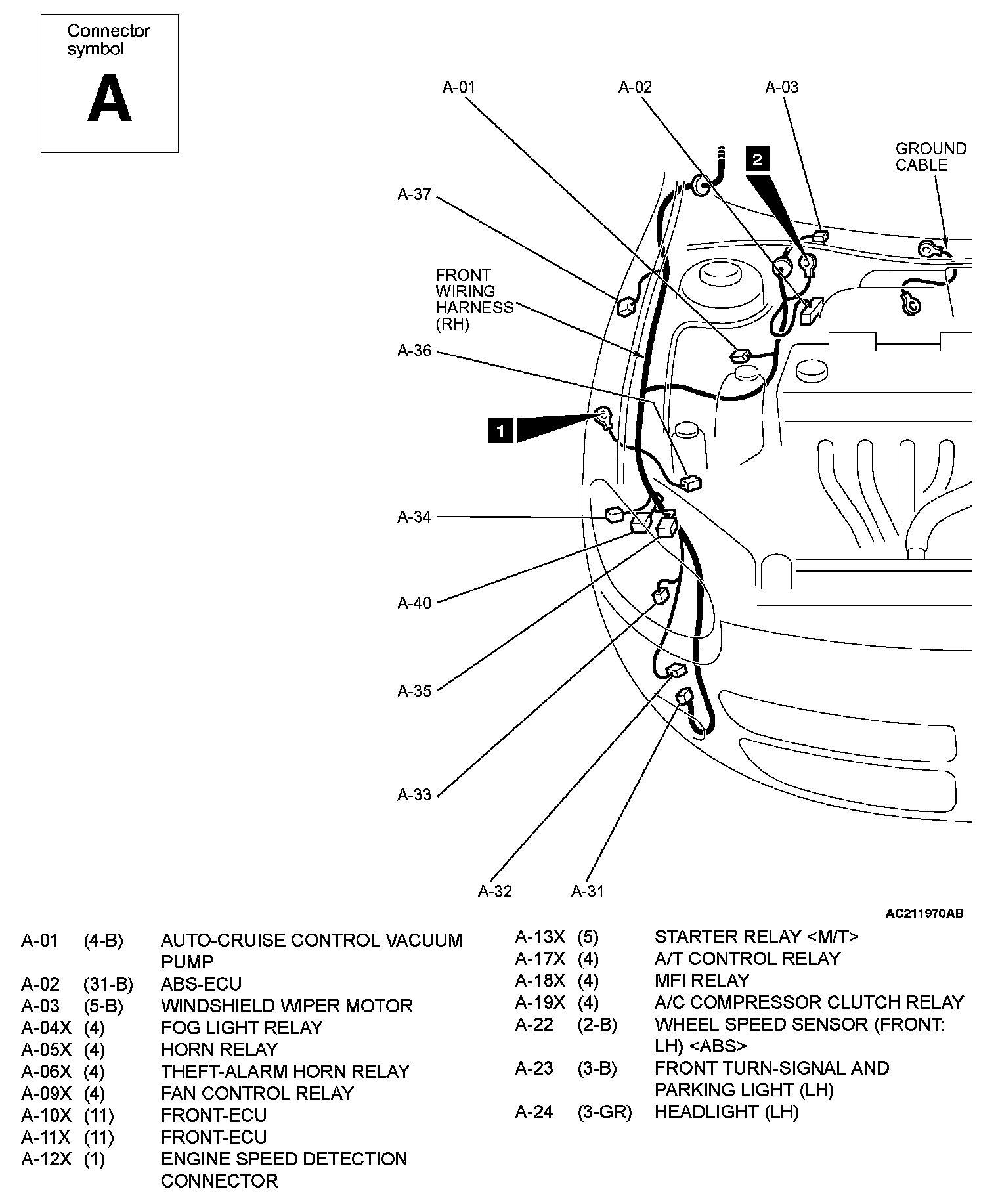

Engine Compartment <Stratus> - A Connector [ 01(4-B) Thru 24(3-GR) ]:

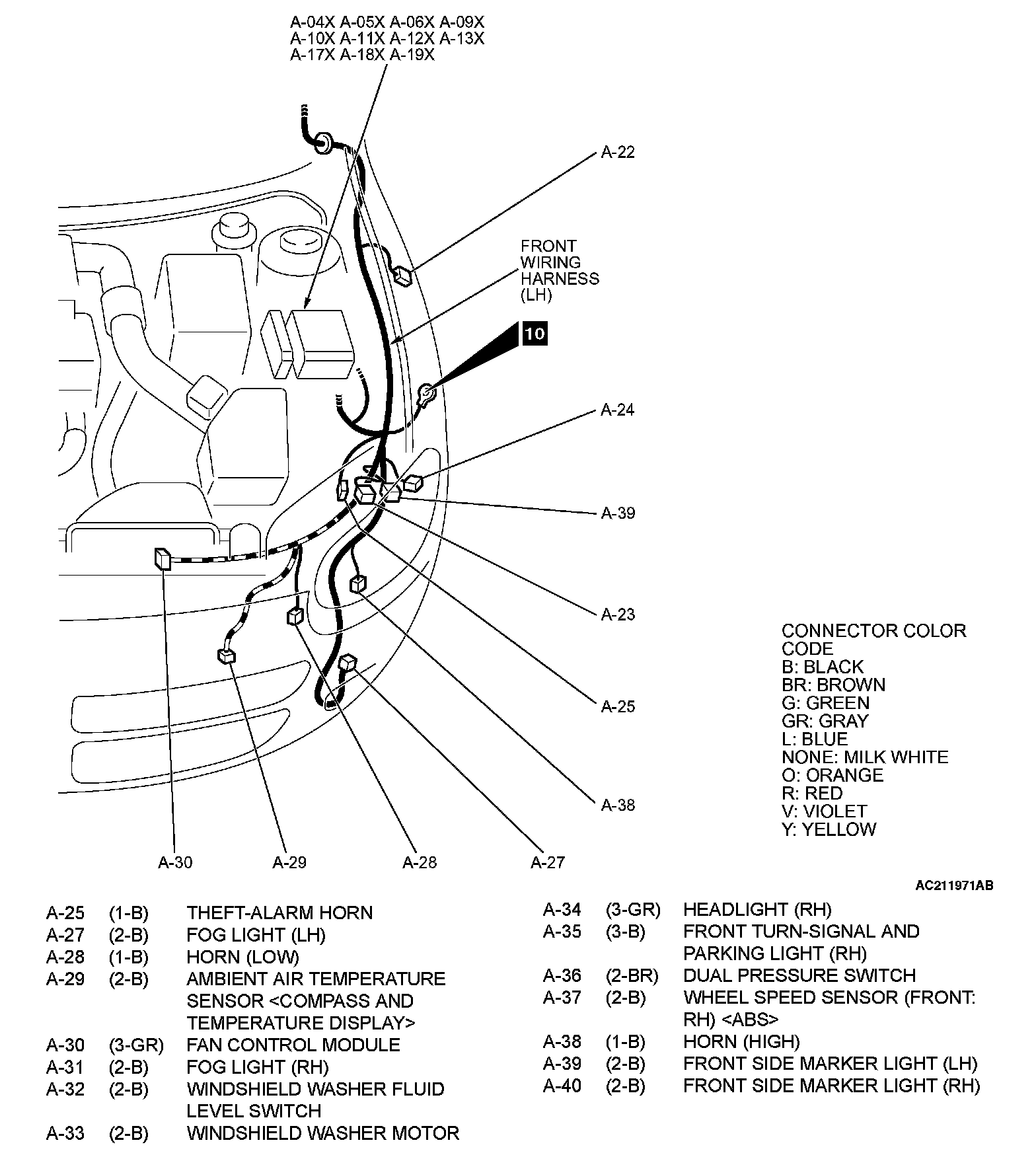

Engine Compartment <Stratus> - A Connector [ 25(1-B) Thru 40(2-B) ]:
