Right Hand Drive
MASTER CYLINDER-RHDDESCRIPTION
NOTE: A one-piece master/slave cylinder assembly is used on these models. If the master cylinder requires replacement, the master AND slave cylinders must be replaced with a two-piece system.

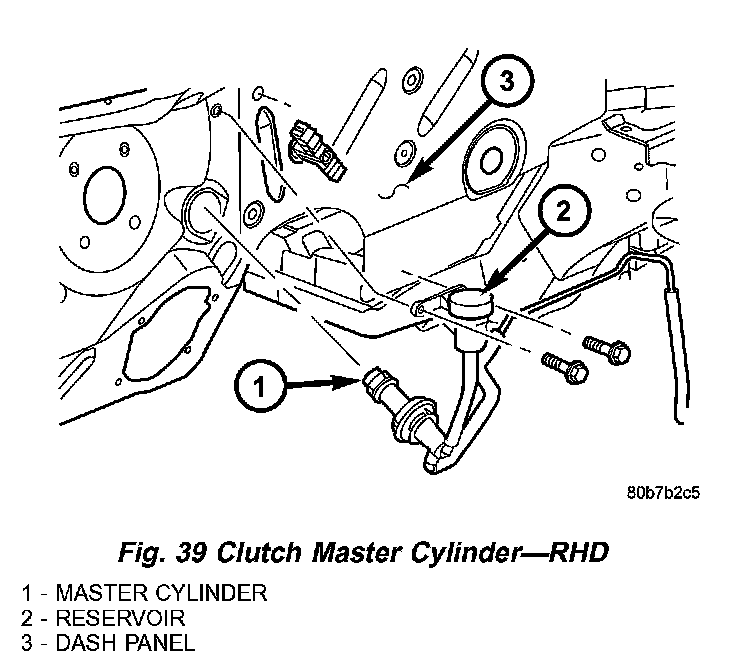

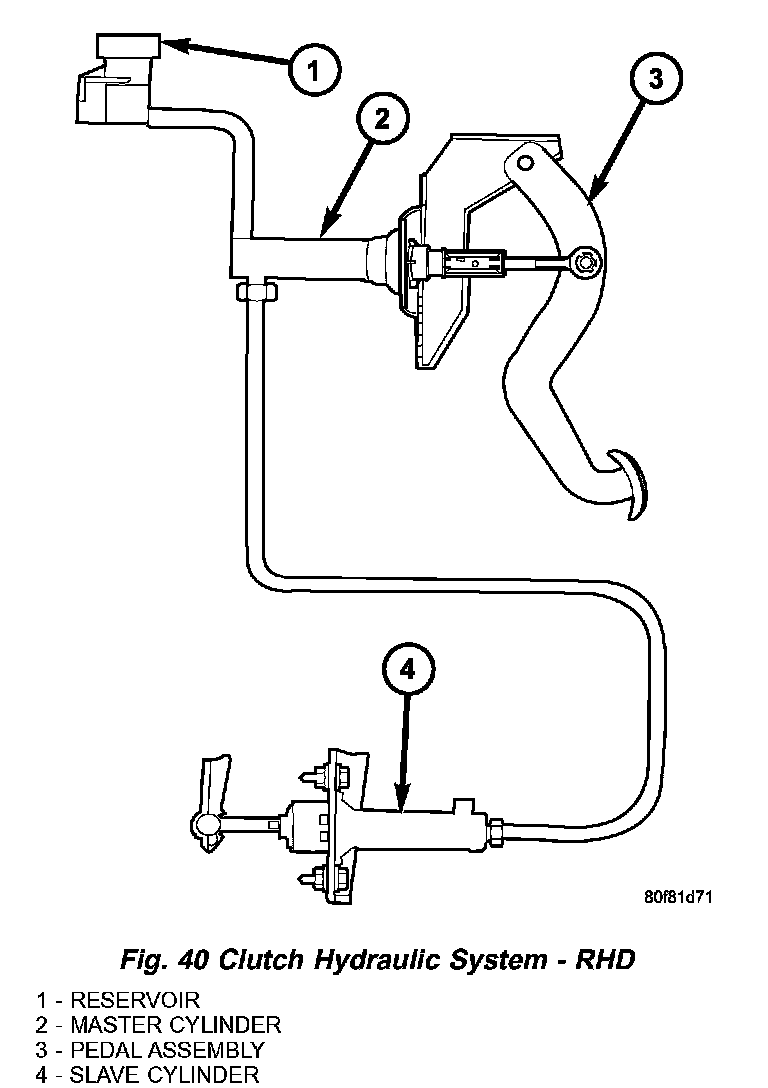

The RHD clutch master cylinder (Fig. 39) mounts through the dash panel and to the pedal bracket assembly The master cylinder consists of a push rod, a piston and cylinder housing, a remote fluid reservoir, an interconnecting hydraulic tube, and an integral slave cylinder (Fig. 40).
