Shroud - Upper

UPPER SHROUD

REMOVAL - UPPER SHROUD
1. Remove lower instrument panel cover.
2. Remove instrument cluster bezel.
3. Remove two column shroud retaining screws.

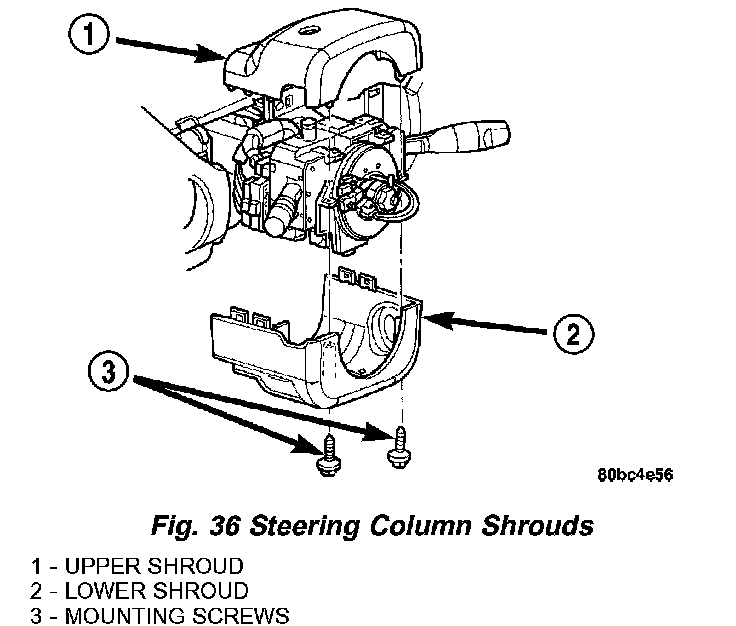

4. Separate upper and lower steering column shrouds (Fig. 36) and remove from vehicle.

INSTALLATION
1. Connect the upper and lower steering column shrouds (Fig. 36).
2. Install the two column shroud retaining screws.
3. Install the instrument cluster bezel.
4. Remove lower instrument panel cover.
