Dodge
>>
2004
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G302
G302

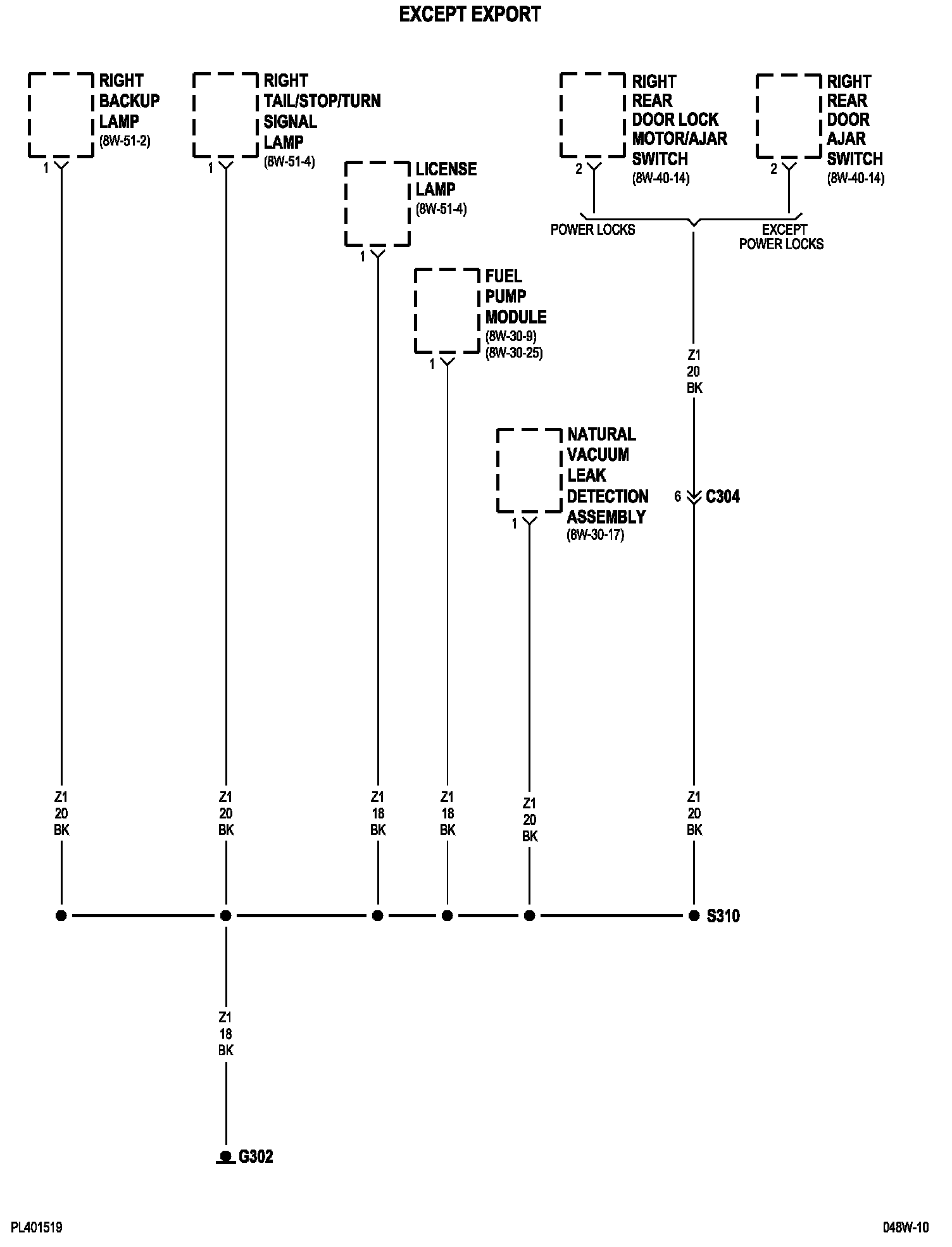

8w-15-19 ( Except Export):

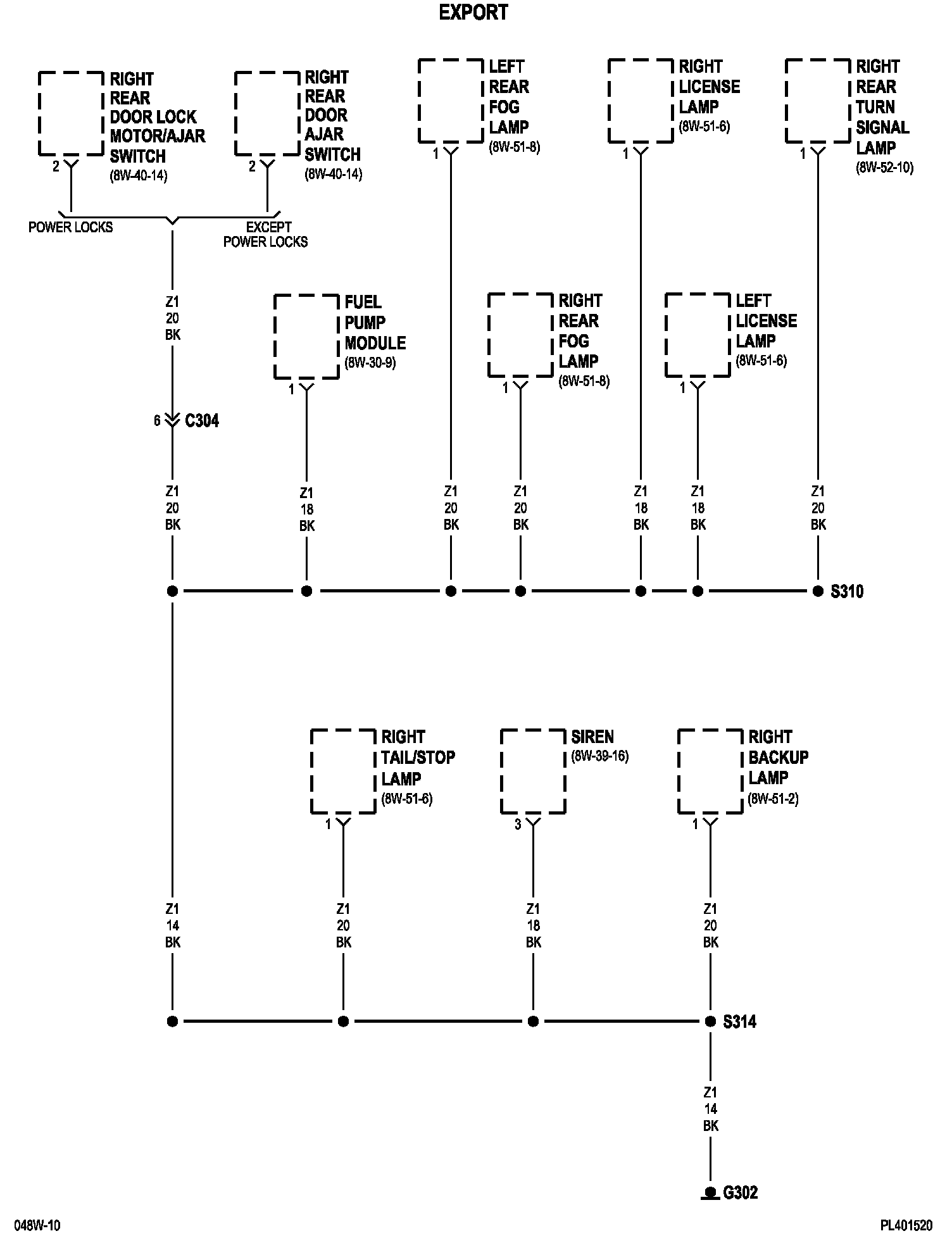

8w-15-2 (Export):
