Connector Locations

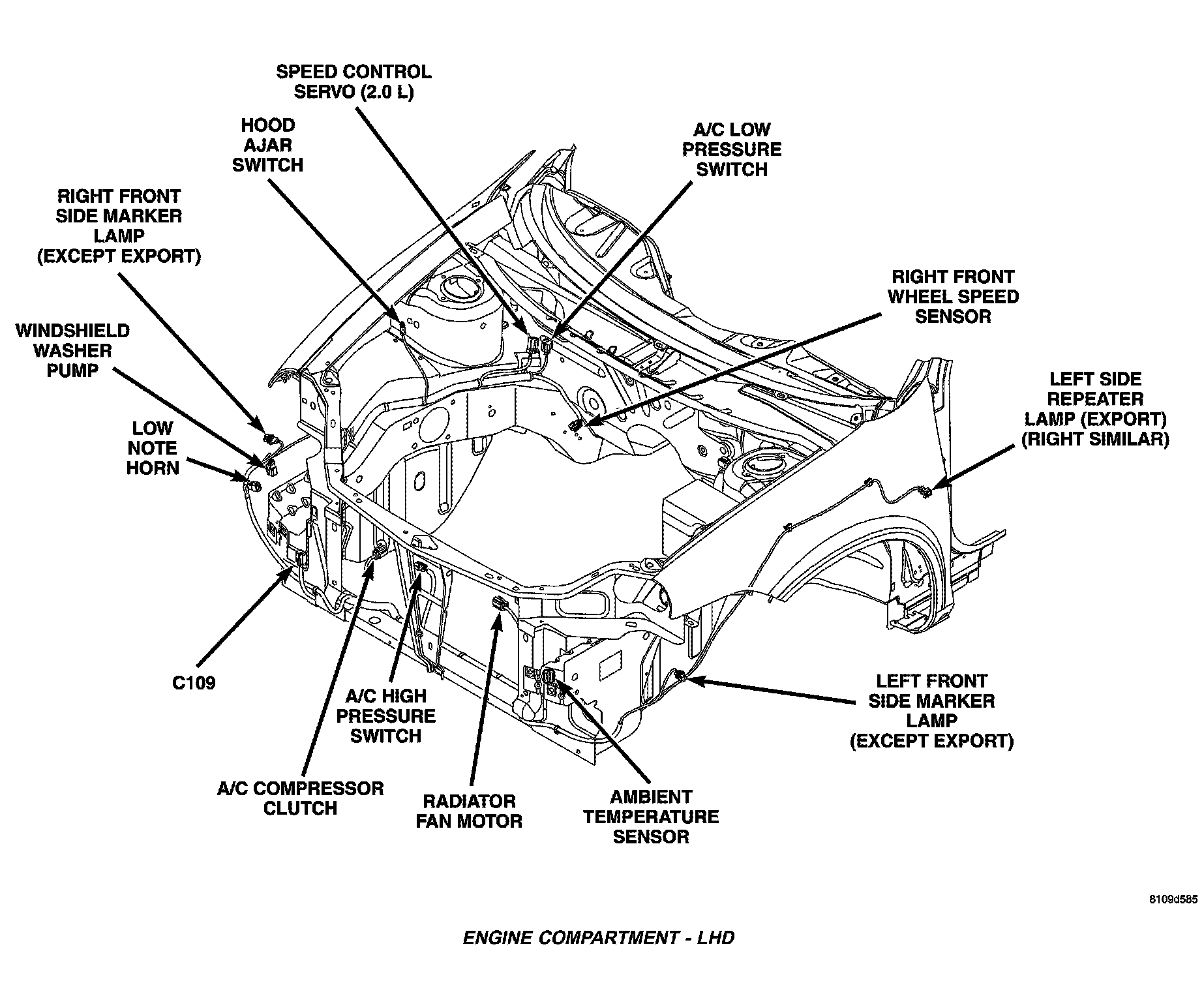

Engine Compartment LHD:

Engine Compartment (Left Side) (1.6L/2.0L) LHD:

Engine Compartment (Right Side) LHD:

Engine Compartment RHD:

Engine Compartment RHD:

Engine Compartment (Left) RHD:

Engine Compartment (Left Front) RHD:

Engine Compartment (Right Side) RHD:
