Fuel Filler Cap: Service and Repair

REMOVAL

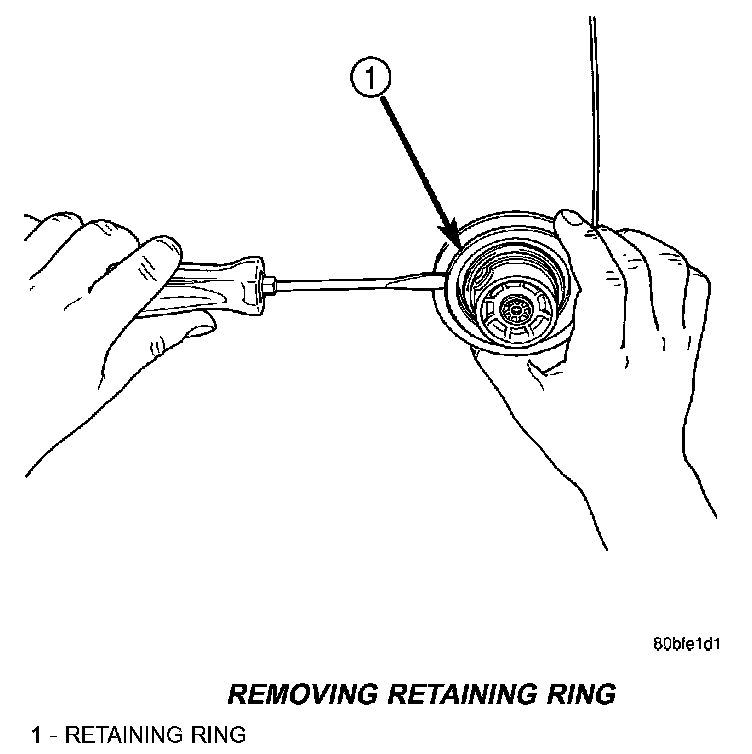

Removing Retaining Ring:

1. Using a flat-bladed pry tool, pry fuel cap retaining ring free from cap assembly.

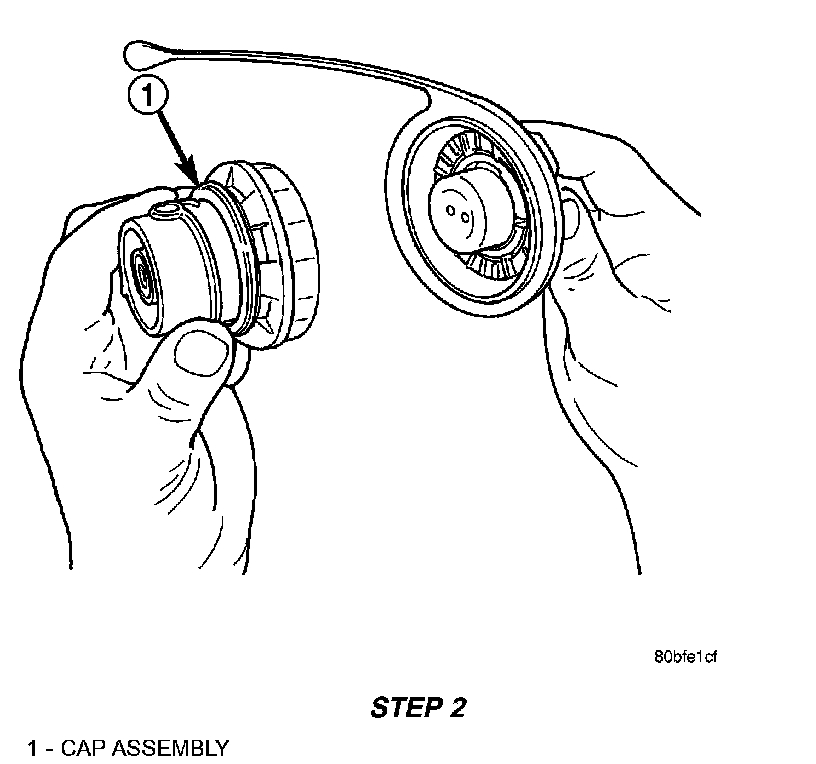

Step 2:

2. Remove threaded portion of cap assembly.

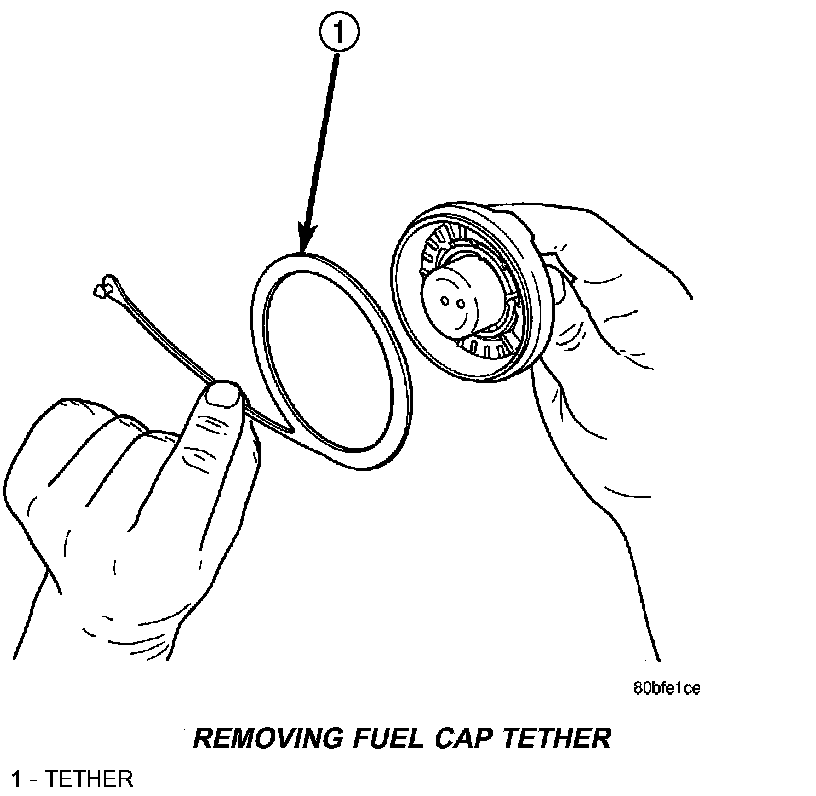

Removing Fuel Cap Tether:

3. Remove lock cylinder engagement collar and tether.

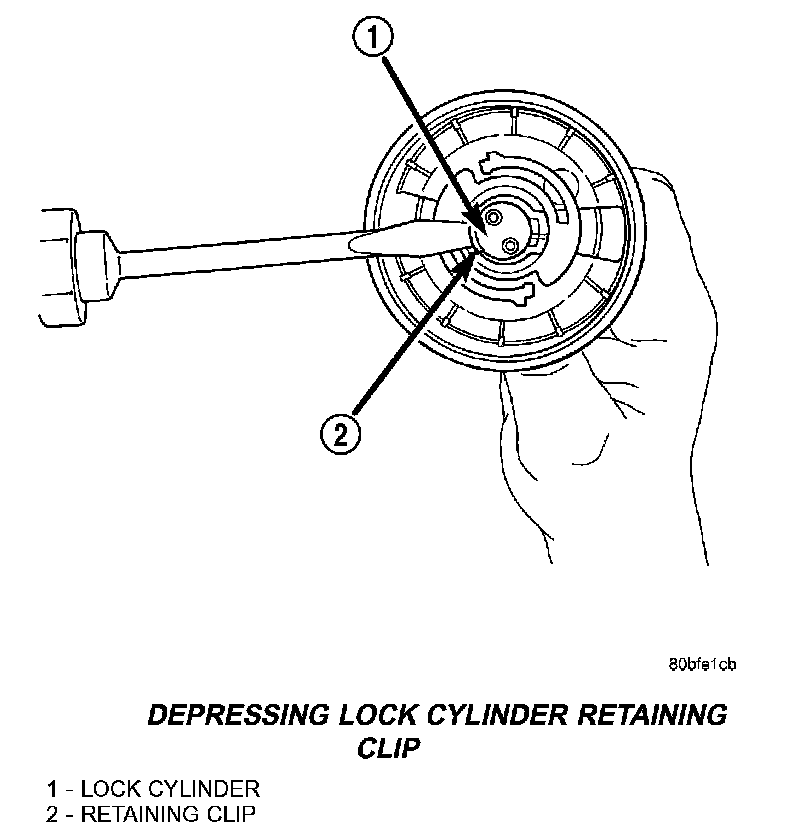

Depressing Lock Cylinder Retaining Clip:

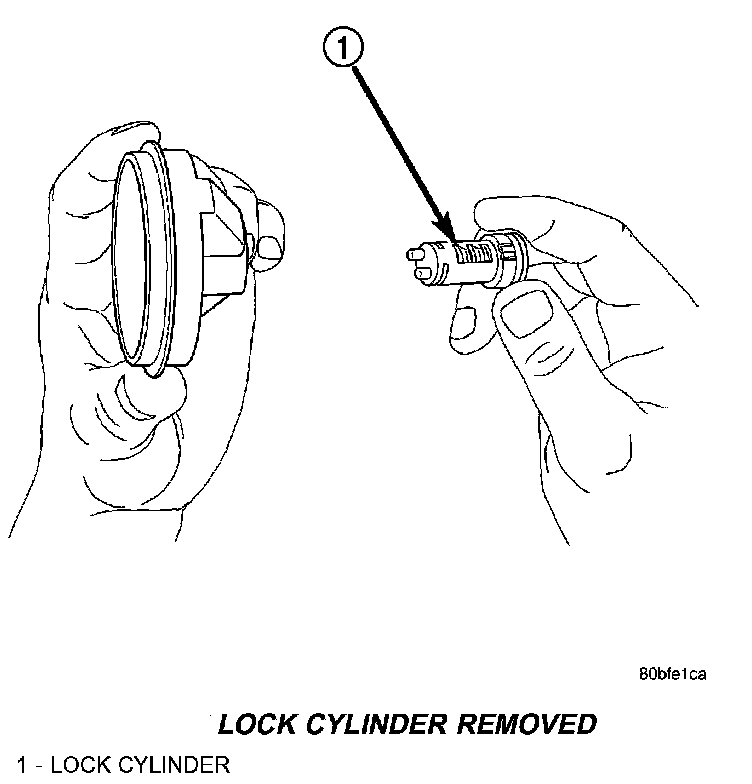

Lock Cylinder Removed:

4. Depress the spring loaded lock cylinder retaining clip and remove the lock cylinder from the cap.

INSTALLATION
1. Install the keyed lock cylinder in cap.
2. Position lock cylinder engagement collar and tether.
3. Position threaded portion of cap.
4. Snap retaining ring in position.
