Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Raise vehicle and support.

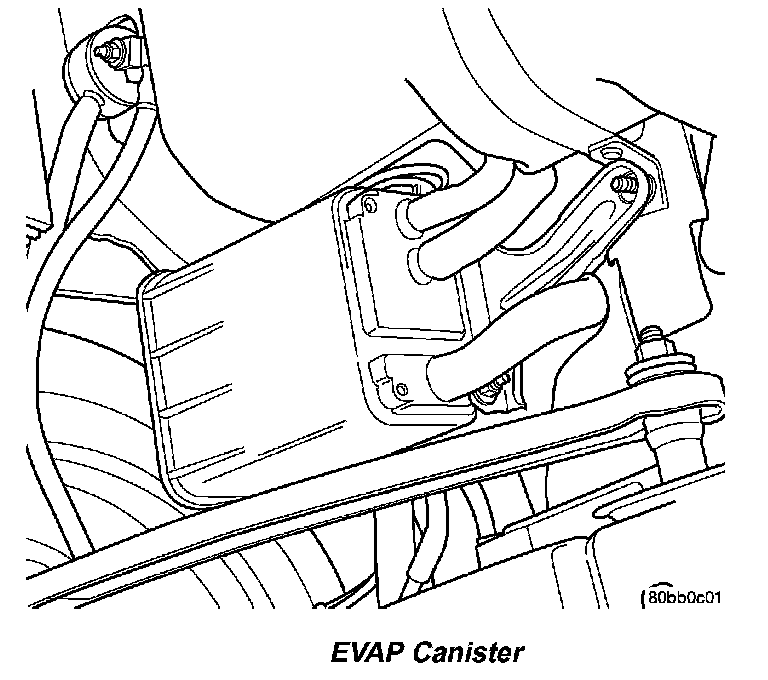

EVAP Canister:

3. Disconnect the hoses from the EVAP canister.

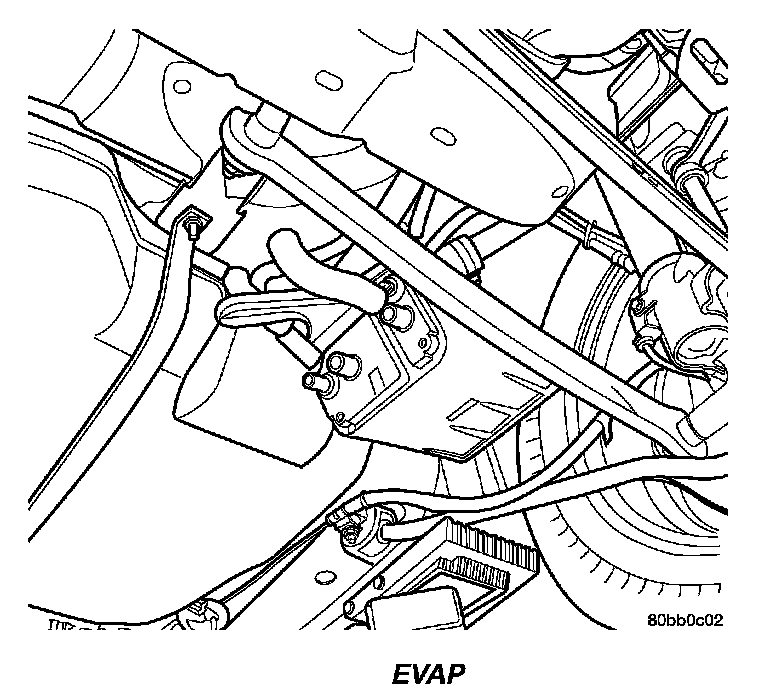

EVAP:

4. Remove 1 nut from the bracket of the EVAP canister.
5. Remove EVAP canister from bracket.

INSTALLATION
1. Install EVAP canister to Bracket.
2. Install 2 nuts to EVAP canister and bracket and tighten nuts to 6.7 N-m (60 in. lbs.).
3. Connect hoses.
4. Install EVAP canister and bracket to vehicle and tighten nut 22.4 N-m (250 in. lbs.).
5. Lower vehicle.
6. Connect negative battery cable.
