No Response From PCM (PCI Bus)
No Response From PCM (PCI Bus)

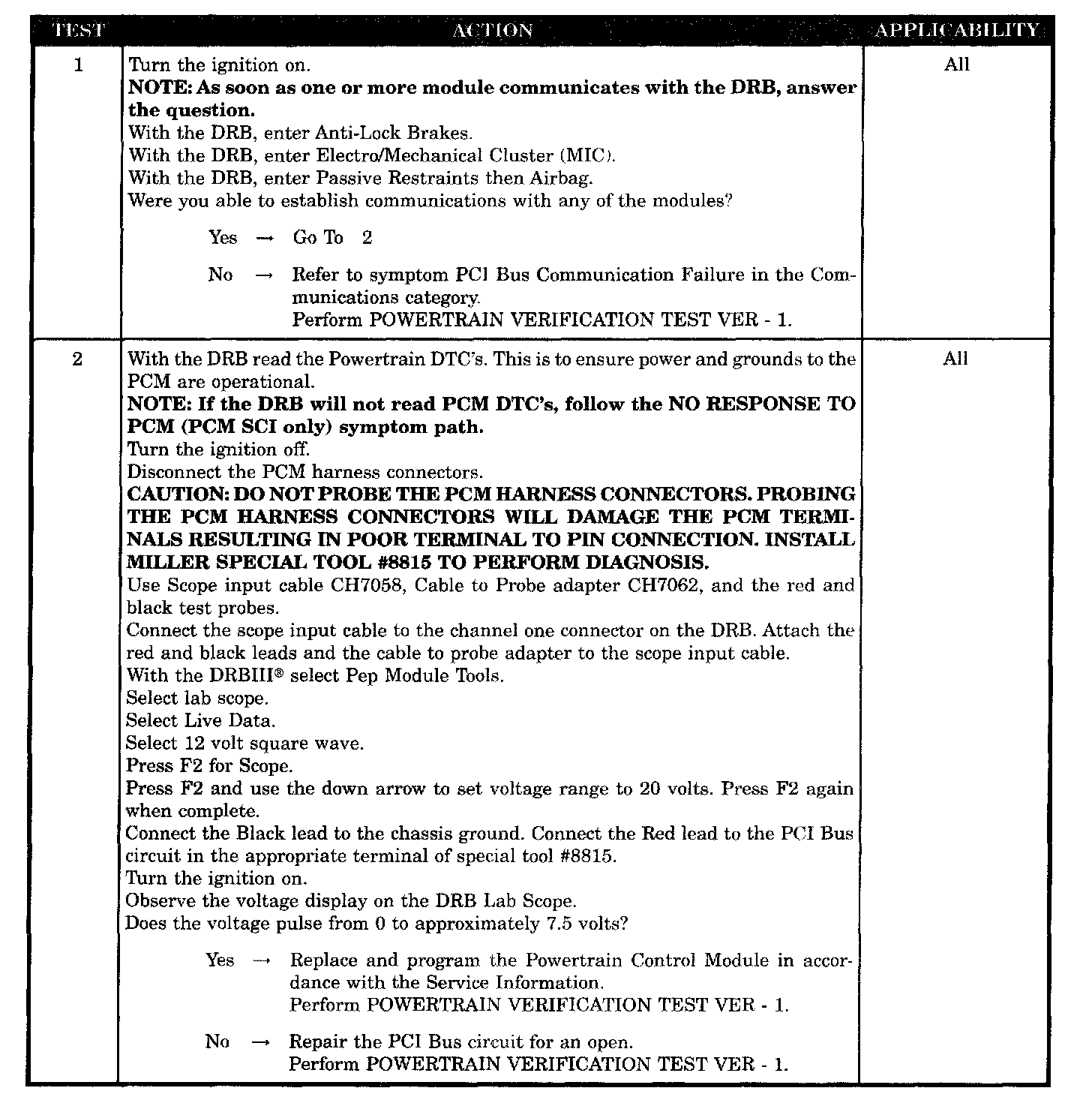

Test 1 - 2:
SYMPTOM
NO RESPONSE FROM
PCM
(
PCI BUS
) -
NGC
POSSIBLE CAUSES
-
PCM
PCI
no response
-
Powertrain control module
-
PCI bus
circuit open
