Checking Radiator Fan Relay Output

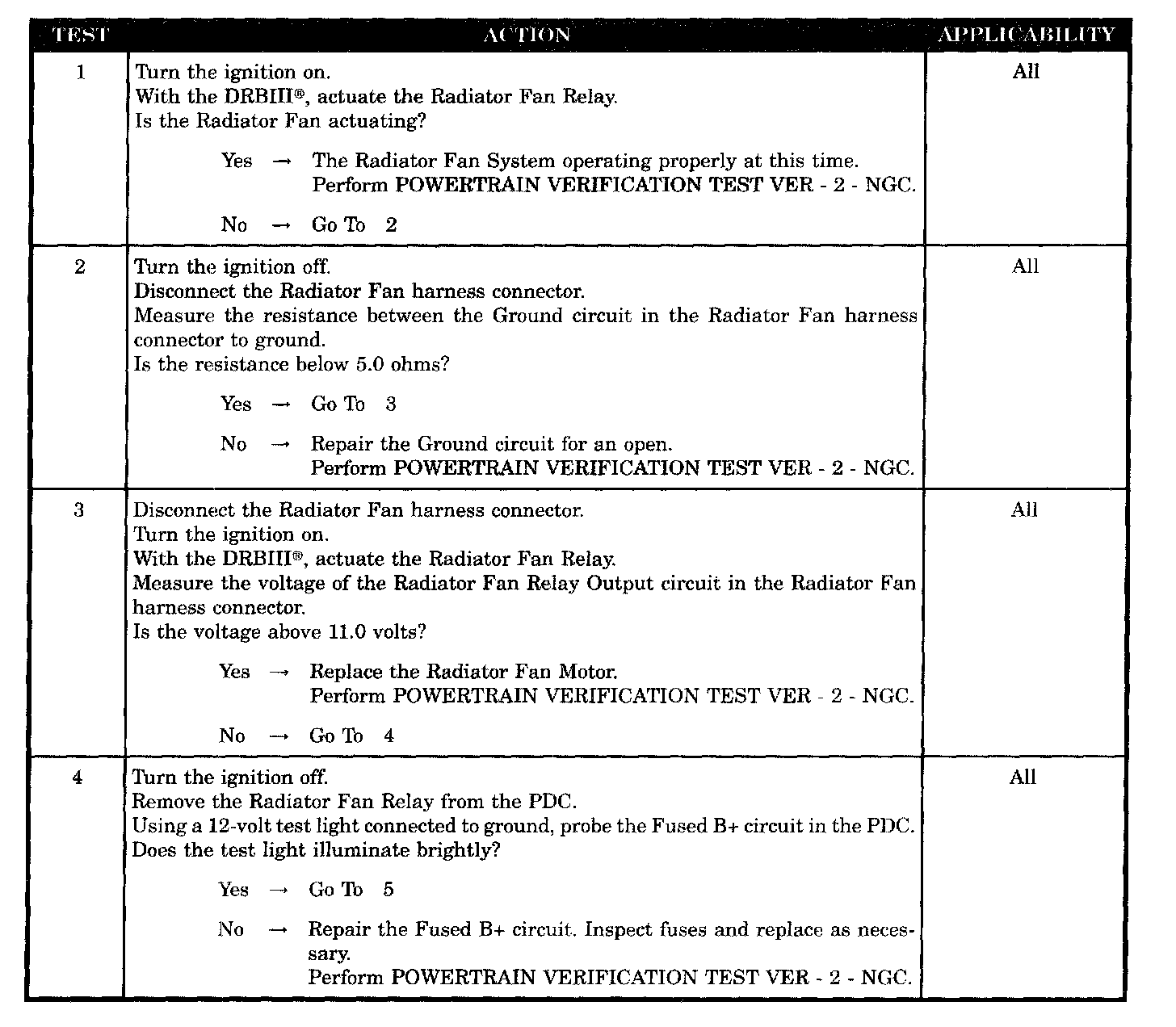

Test 1 - 4:

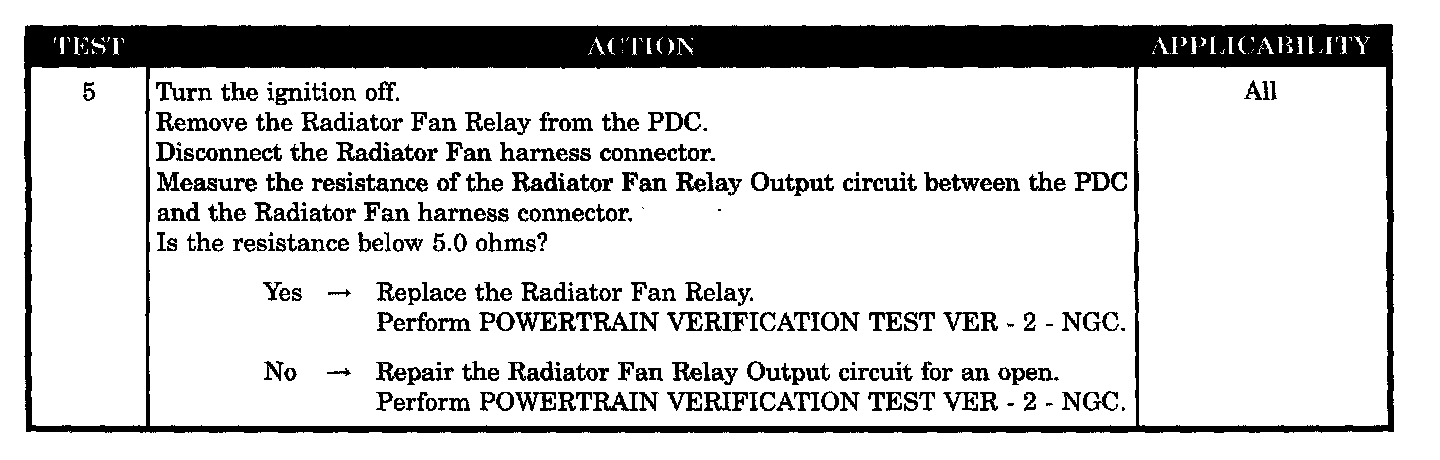

Test 5:

Symptom
CHECKING RADIATOR FAN RELAY OUTPUT

POSSIBLE CAUSES
- Radiator fan relay operation
- Ground circuit open
- Radiator fan motor
- Fused B+ circuit
- Radiator fan relay output circuit
- Radiator fan relay
