Headlamp Motor: Service and Repair
REMOVAL1. Disconnect and isolate the battery negative cable.
2. Remove the appropriate headlamp unit.

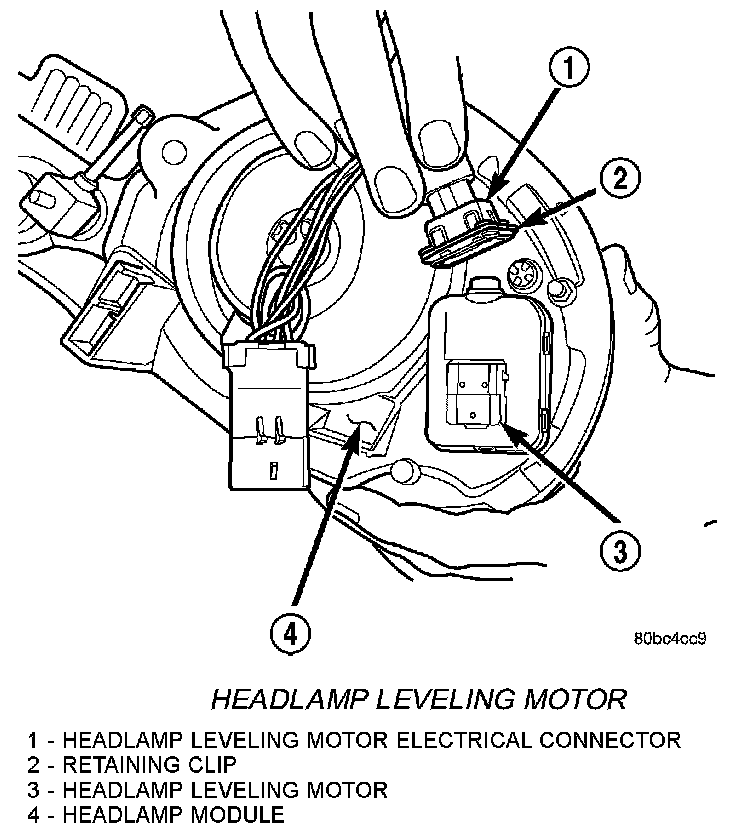

3. Disconnect the headlamp leveling motor electrical connector. Depress the steel retaining clip while pulling the connector from the motor.
4. Rotate the headlamp leveling motor counterclockwise. Pull it slightly away from the headlamp and rotate it down to remove the ball from the socket.
NOTE: Significant force will be required to unsnap the ball and socket connection between the headlamp leveling motor and the headlamp unit.
INSTALLATION
1. Install the headlamp leveling motor in the headlamp unit. Push the headlamp leveling motor pushrod straight into its mating socket while holding the headlamp unit in the fully retracted position.
2. Once the ball and socket connection is secured, push and rotate the headlamp leveling motor clockwise into the headlamp unit to lock in place.
3. Connect the headlamp leveling motor electrical connector.
4. Install the headlamp unit.
5. Connect the battery negative cable.
6. Verify system operation.
