Defroster Ducts Replacement

REMOVAL
1. Remove the instrument panel from the vehicle. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Assembly Replacement, Instrument Panel Assembly

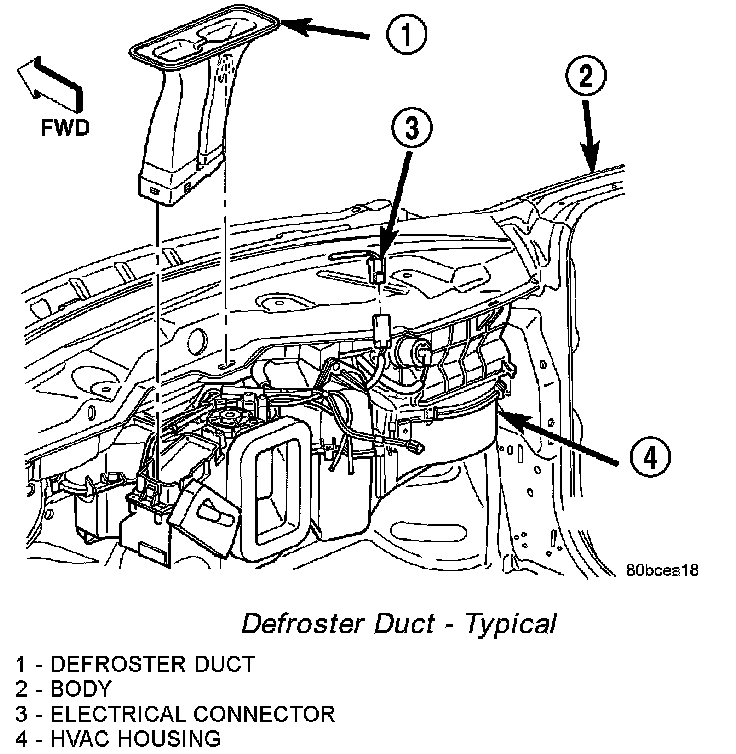

Defroster Duct - Typical:

2. Remove the defroster duct from the top of the HVAC housing.

INSTALLATION
1. Install the defroster duct onto the top of the HVAC housing. Snap the retainers into place.
2. Install the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Assembly Replacement, Instrument Panel Assembly
