Air Outlet Center Duct

REMOVAL
1. Remove the center bezel from the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Center Bezel, Instrument Panel Center Bezel

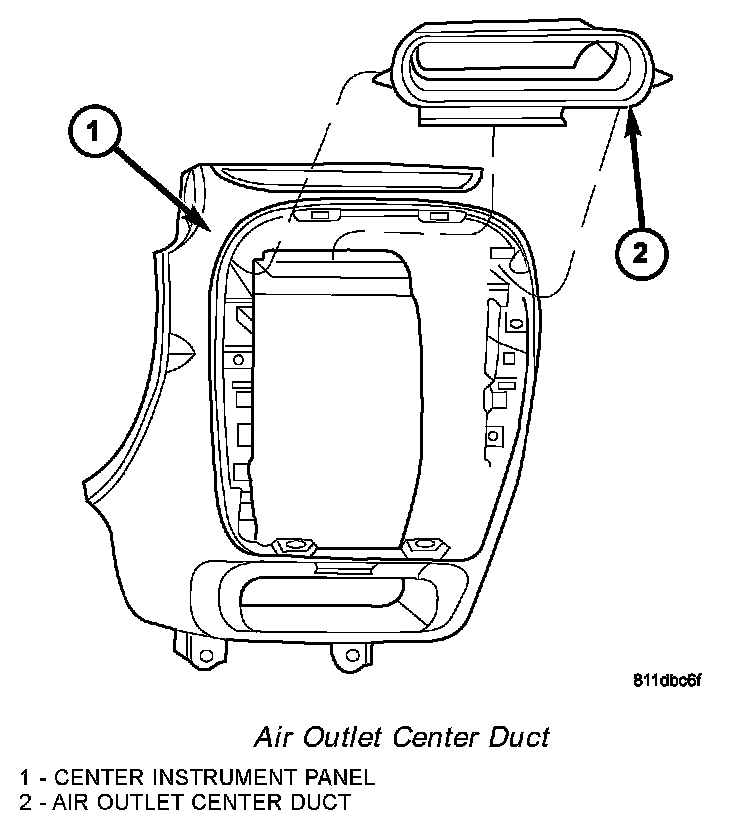

Air Outlet Center Duct:

2. Remove the screws that secure the air outlet center duct to the center instrument panel.
3. Disengage the air outlet center duct from the air outlet distribution duct.
4. Remove the air outlet center duct from the center instrument panel.

INSTALLATION
1. Position the air outlet center duct to the center instrument panel.
2. Engage the air outlet center duct to the air outlet distribution duct.
3. Install the screws that secure the air outlet center duct to the center instrument panel. Tighten the screws to 2.3 Nm (20 in. lbs.).
4. Install the center bezel onto the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Center Bezel, Instrument Panel Center Bezel
