Harmonic Balancer - Crankshaft Pulley: Service and Repair
VIBRATION DAMPERREMOVAL
1. Raise vehicle on a hoist and remove accessory drive belt splash shield.
2. Remove accessory drive belts.

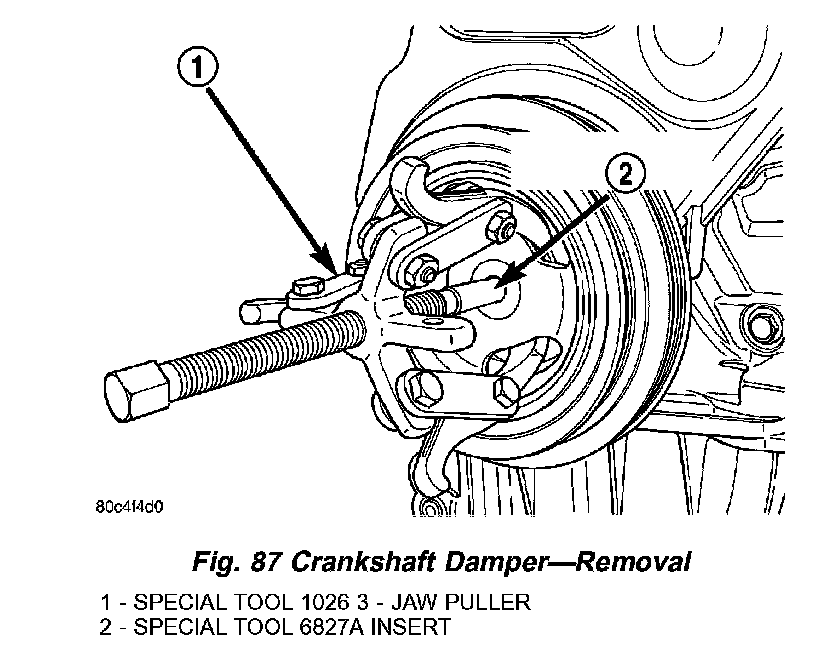

3. Remove crankshaft vibration damper bolt. Remove damper using the large side of Special Tool 1026 and insert 6827-A (Fig. 87).
INSTALLATION
NOTE: Lubricate the threads of the M12 1.75 x 150 mm bolt using leopard Nickel Anti-seize Compound or equivalent, before beginning to press the damper on.
1. Install crankshaft vibration damper using M12-1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792 (Fig. 88).
2. Apply Mopar Lock & Seal Adhesive (Medium Strength Threadlocker) to vibration damper bolt. Tighten vibration damper bolt to 136 Nm (100 ft. lbs.).
3. Install accessory drive belts.
4. Install the accessory drive belt splash shield and lower vehicle.
