Procedures

STANDARD PROCEDURE - CRANKSHAFT END PLAY

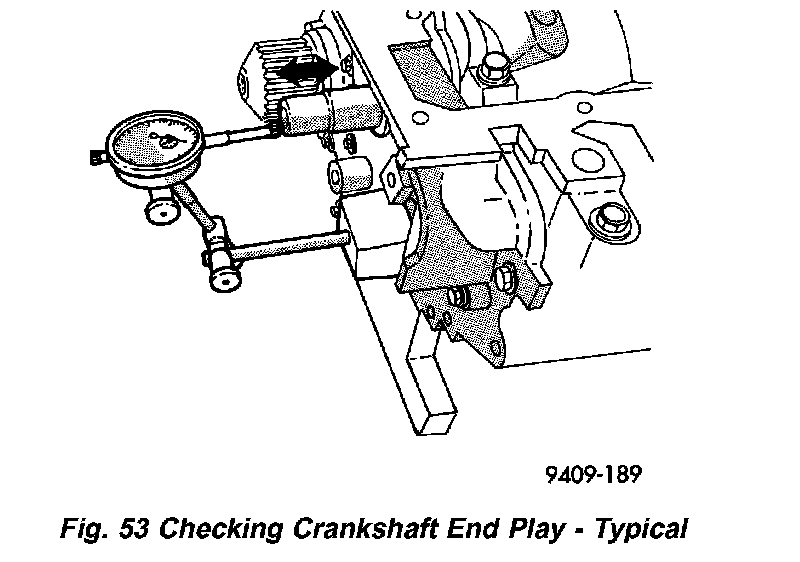

1. Mount a dial indicator to front of engine, locating probe on nose of the crankshaft (Fig. 53).
2. Move crankshaft all the way to the rear of its travel.
3. Zero the dial indicator.
4. Move crankshaft all the way to the front of its travel and read the dial indicator. For crankshaft specifications (Refer to - ENGINE - SPECIFICATIONS)
