Coolant Line/Hose: Description and Operation
WATER PUMP INLET TUBEDESCRIPTION

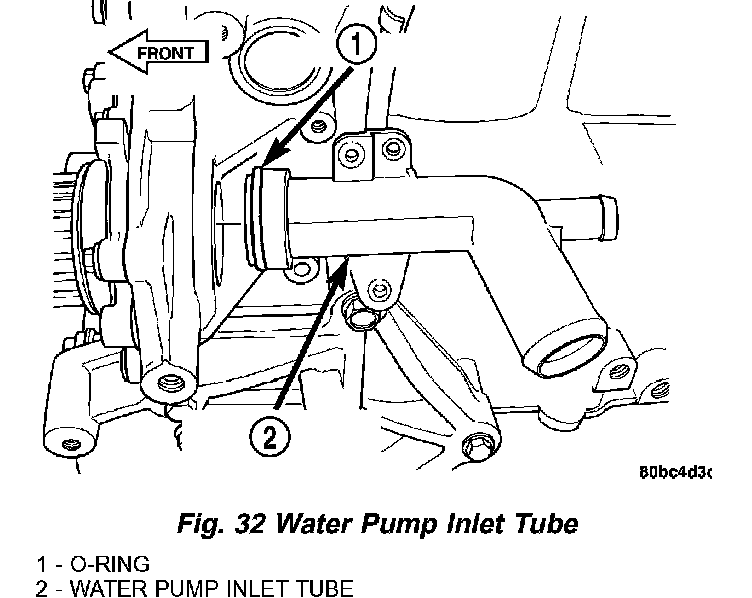

The water pump inlet tube connects the water pump housing to the radiator lower hose and heater return hose. This plastic tube is sealed by an O-ring and held in place by fasteners to the block (Fig. 32).
