Splice Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

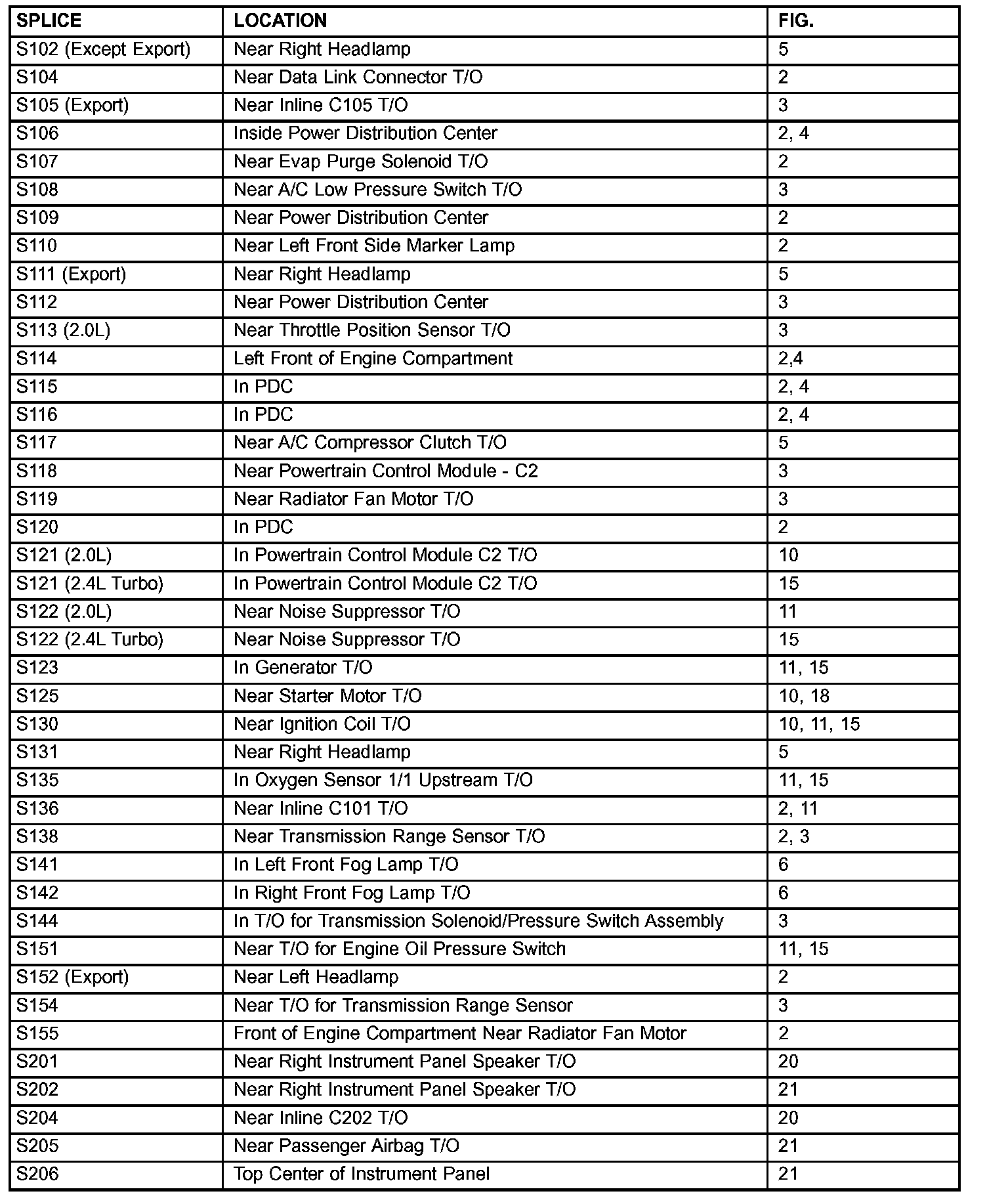

8w-91-9 Splices LHD S102 (Except Export) - S206:

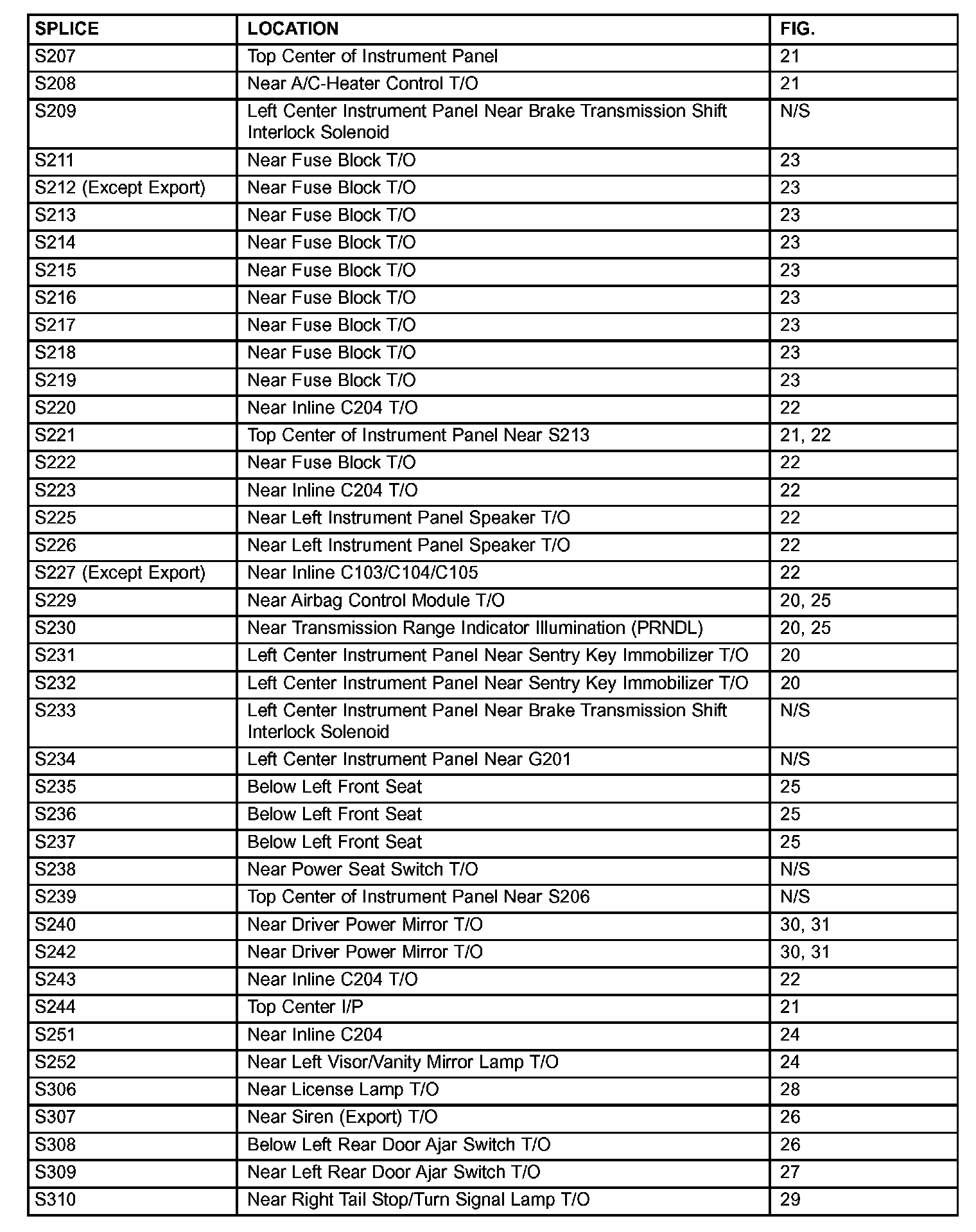

8w-91-10 Splice S207 - S310:

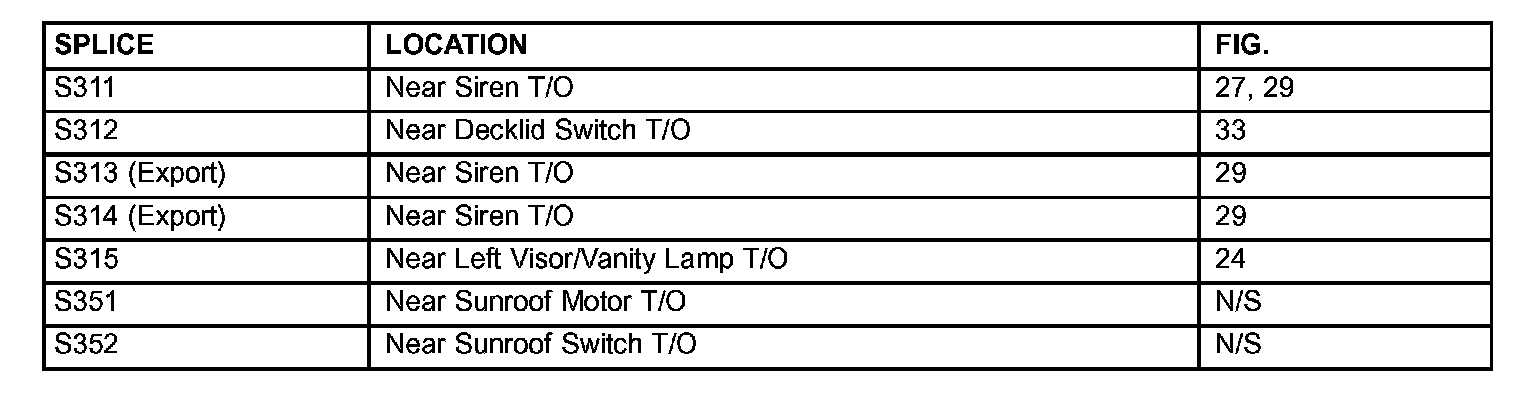

8w-91-11 Splice S311 - S352:

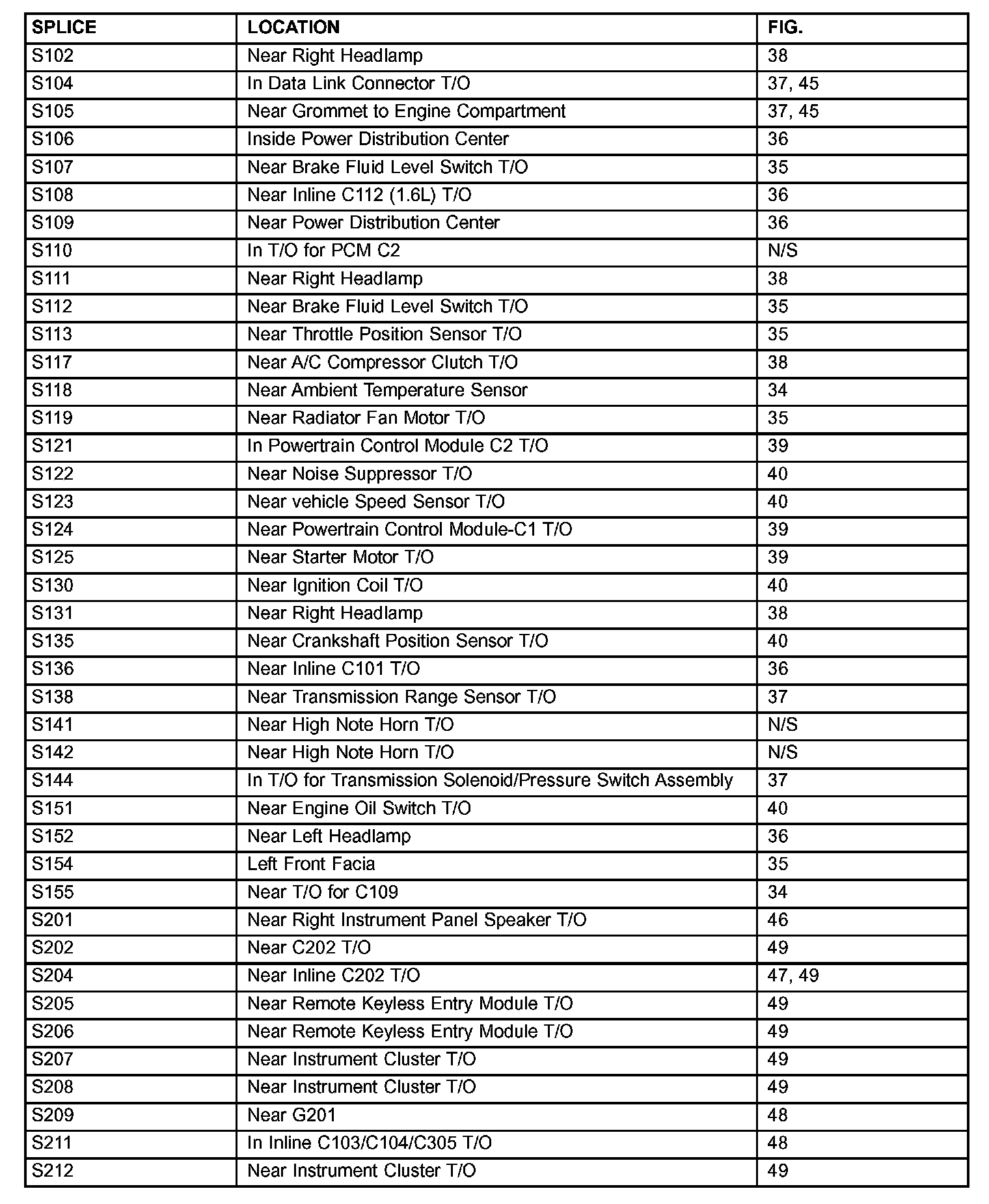

8w-91-42 Splice S102 - S212:

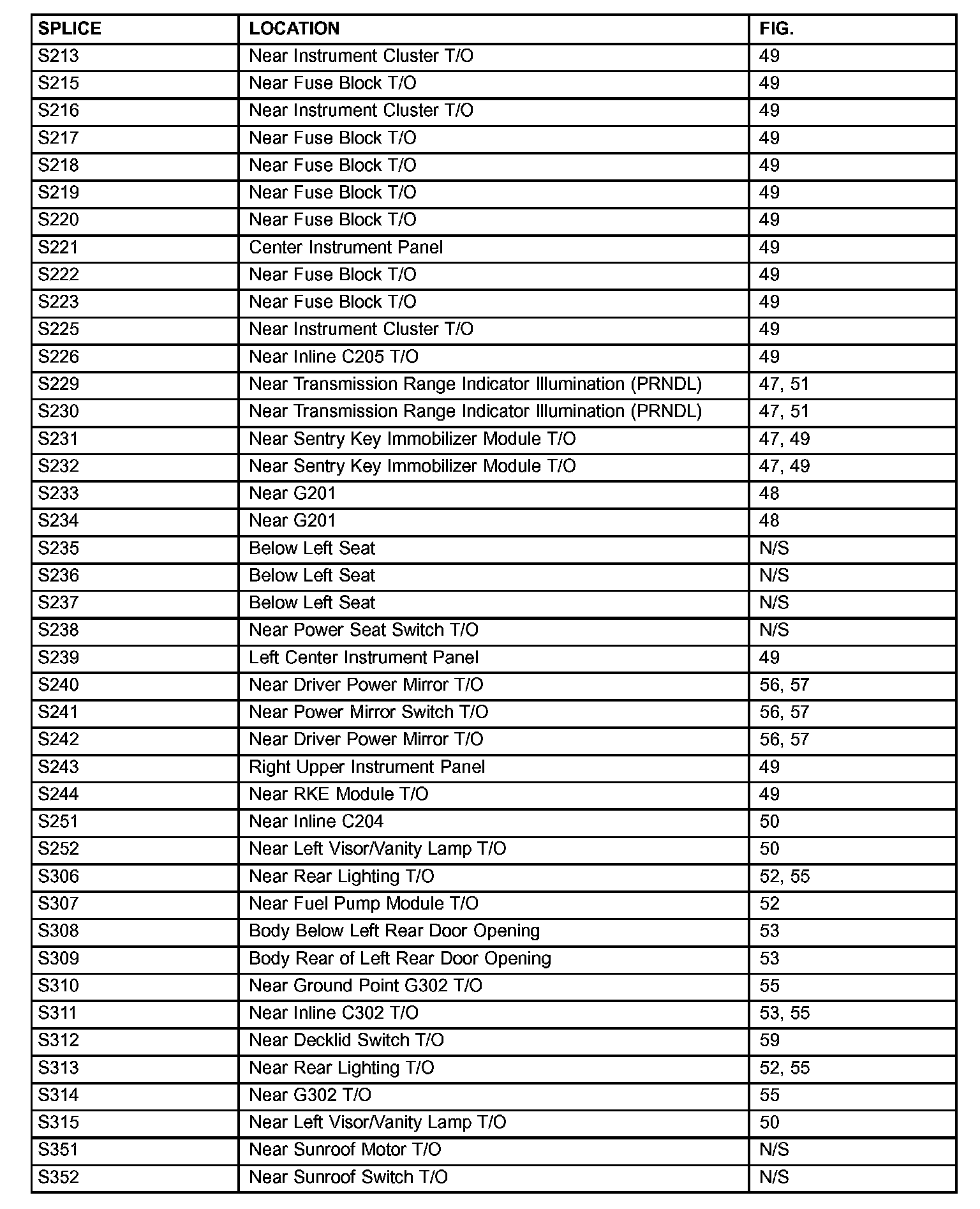

8w-91-43 Splice S213 - S352:
