Wiring Diagram Index

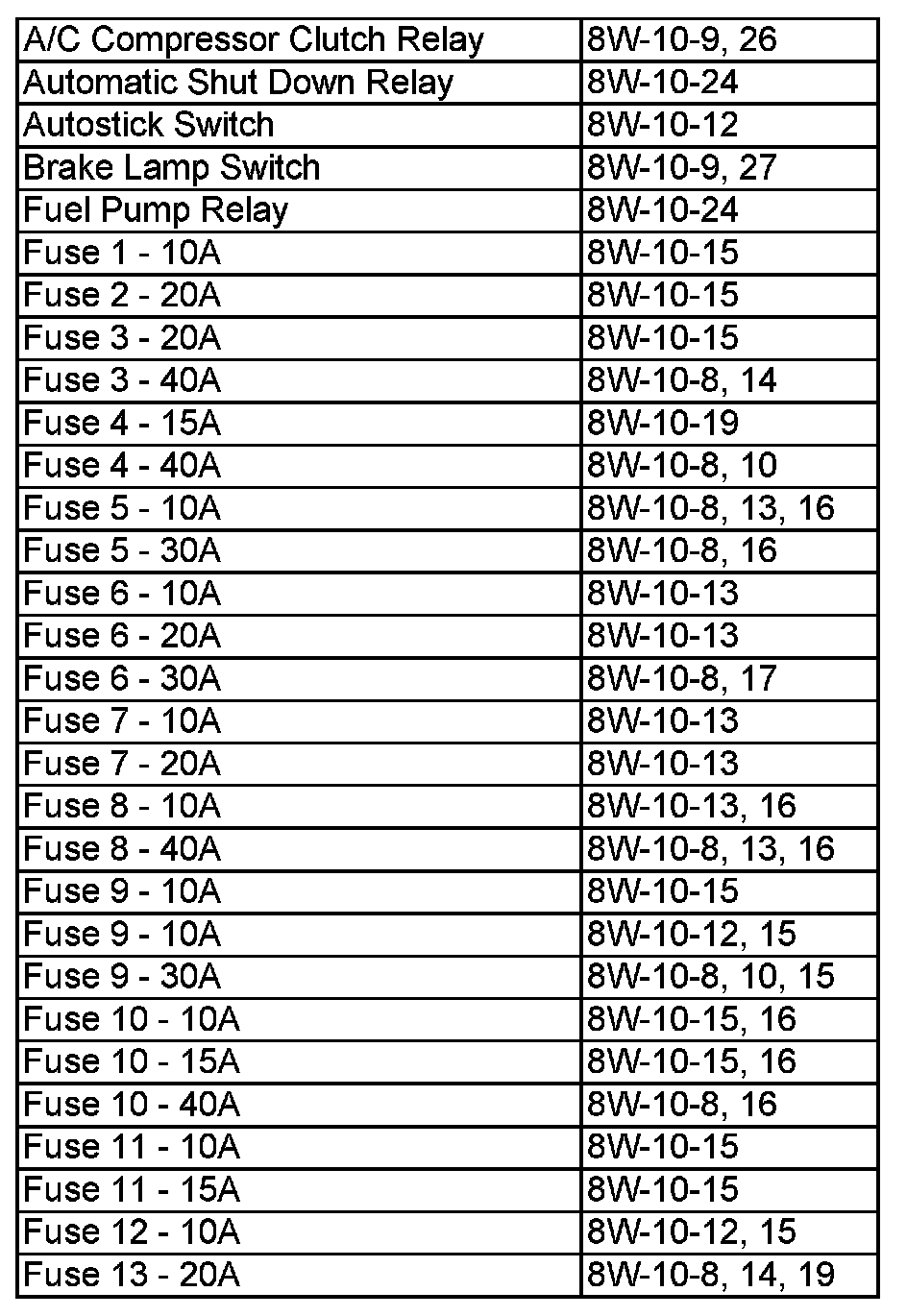

Power Distribution Circuits (A/C Compressor Clutch Relay - Fuse 13):

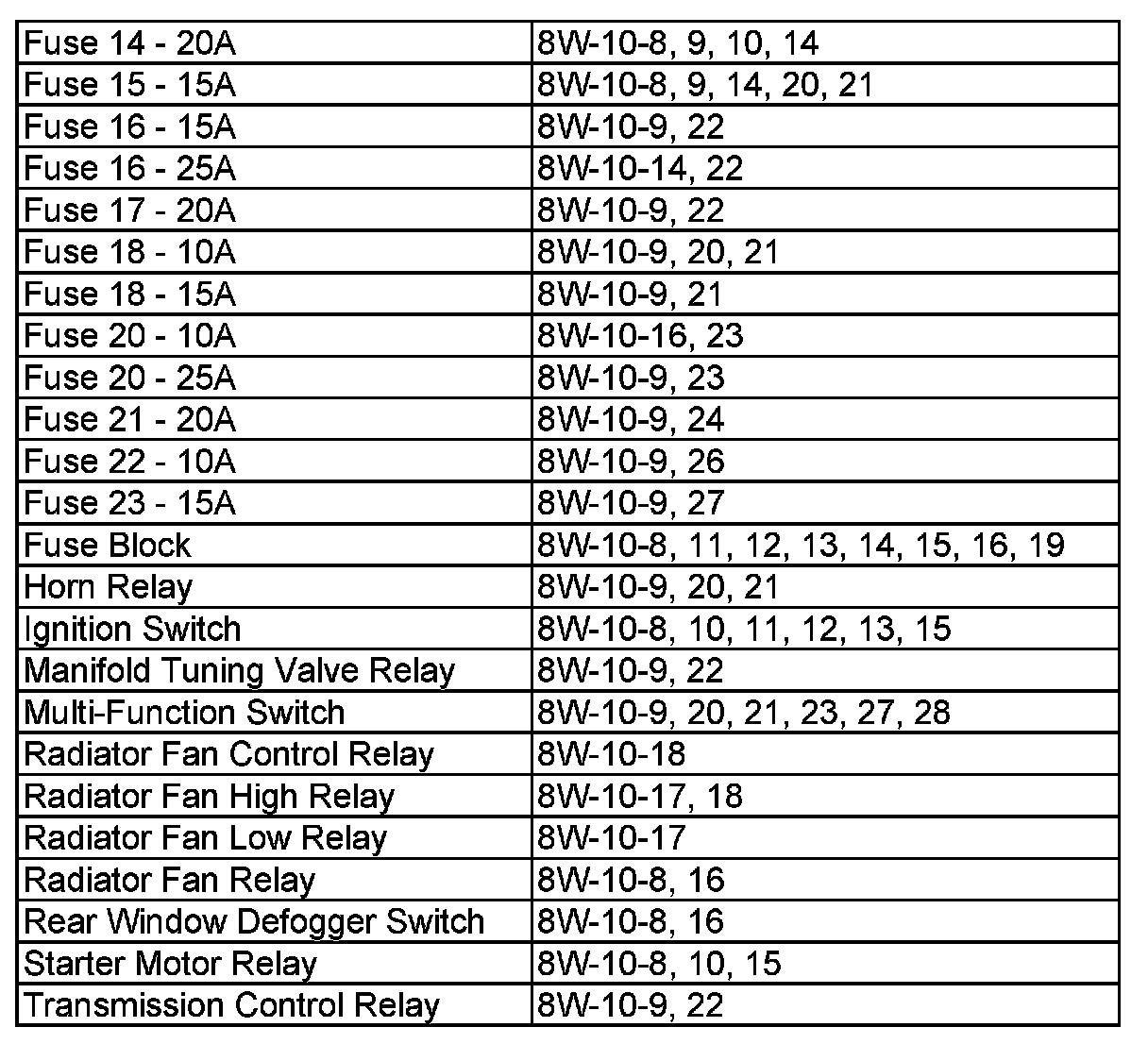

Power Distribution Circuits (Fuse 14 - Transmission Control Relay):

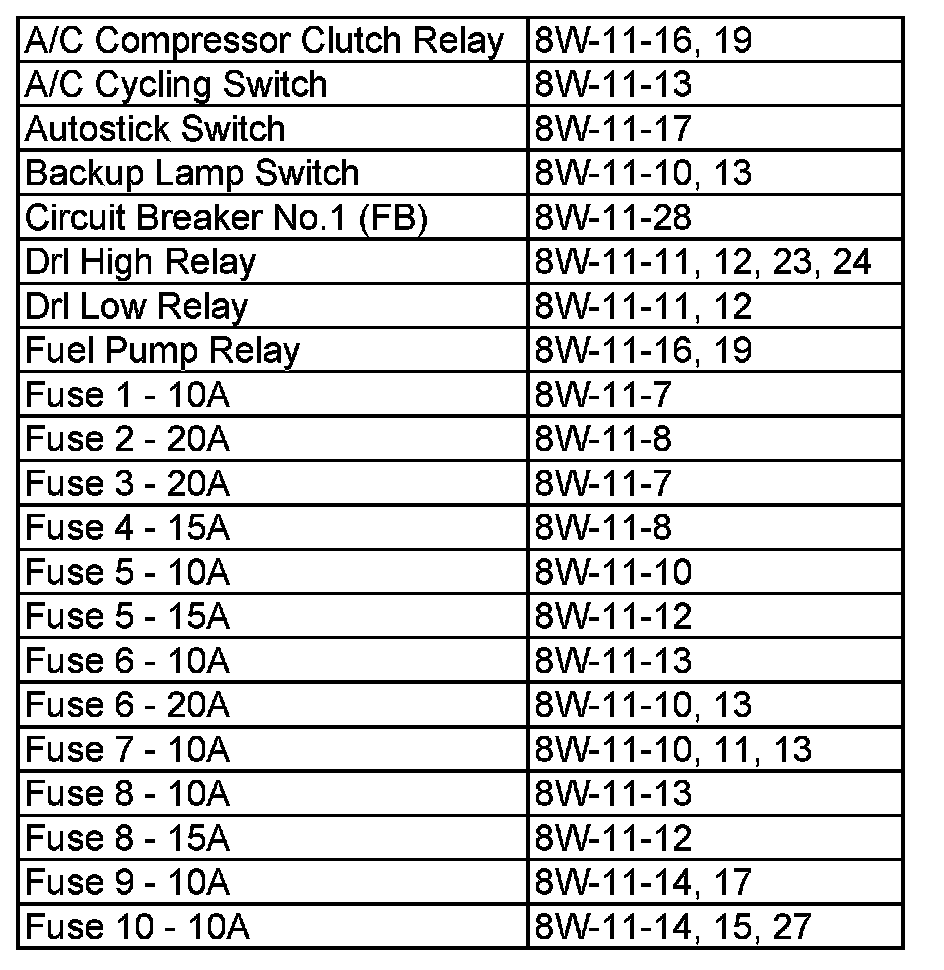

Fuse Block Circuits (A/C Compressor Clutch Relay - Fuse 10):

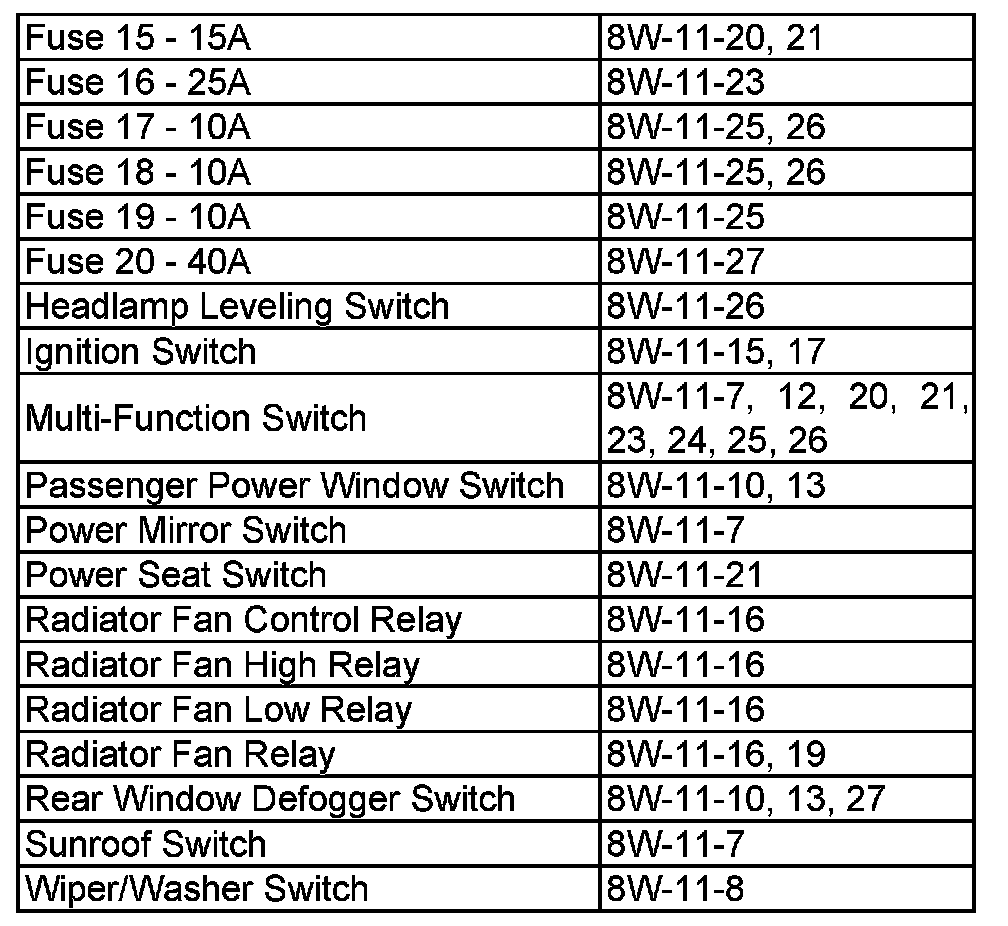

Fuse Block Circuits (Fuse 15 - Wiper/Washer Switch):
