Front Lighting

PLEASE NOTE: Some diagram sheets may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

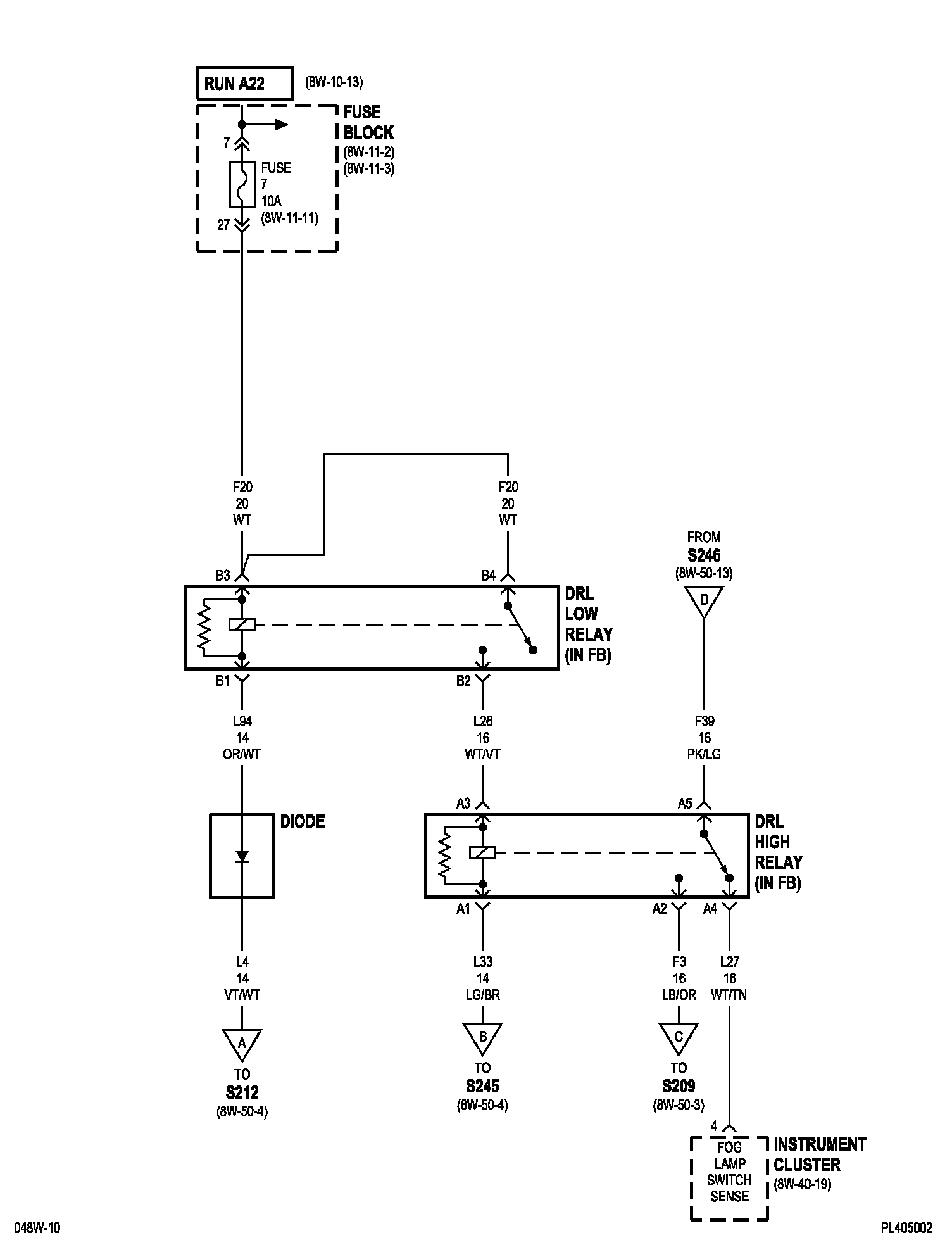

8w-50-2 (Daytime Running Lamps):

8w-50-3 (Except Export):

8w-50-4 (Except Export):

8w-50-5 (Except Export):

8w-50-6 (Export):

8w-50-7 (Export):

8w-50-8:

8w-50-9 (Except Export):

8w-50-10 (Export):

8w-50-11 (Export):

8w-50-12 (Except Export):

8w-50-13 (Except Export):

8w-50-14 (Except Export):

8w-50-15 (Export):

8w-50-16 (Export):

NOTE: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number
