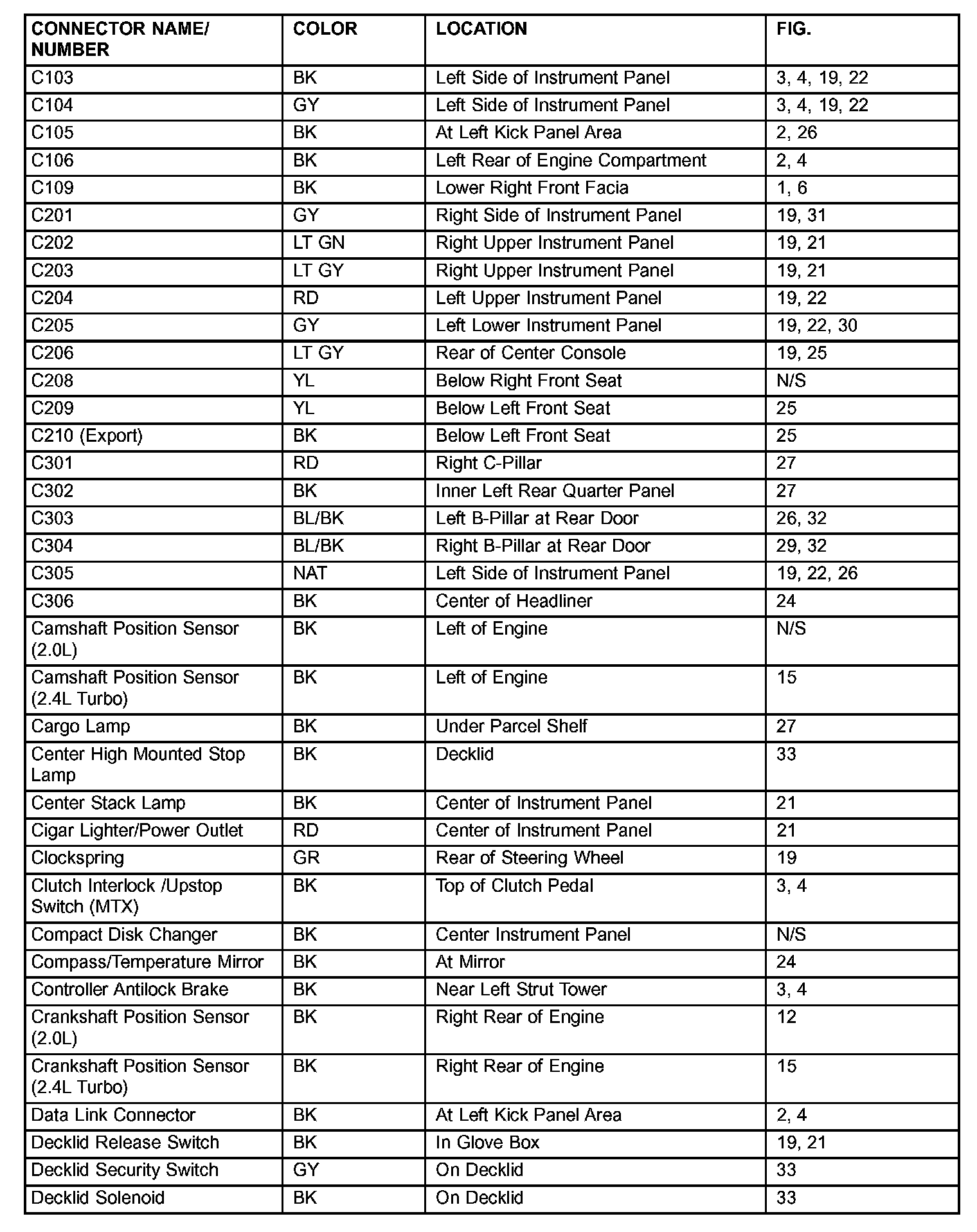

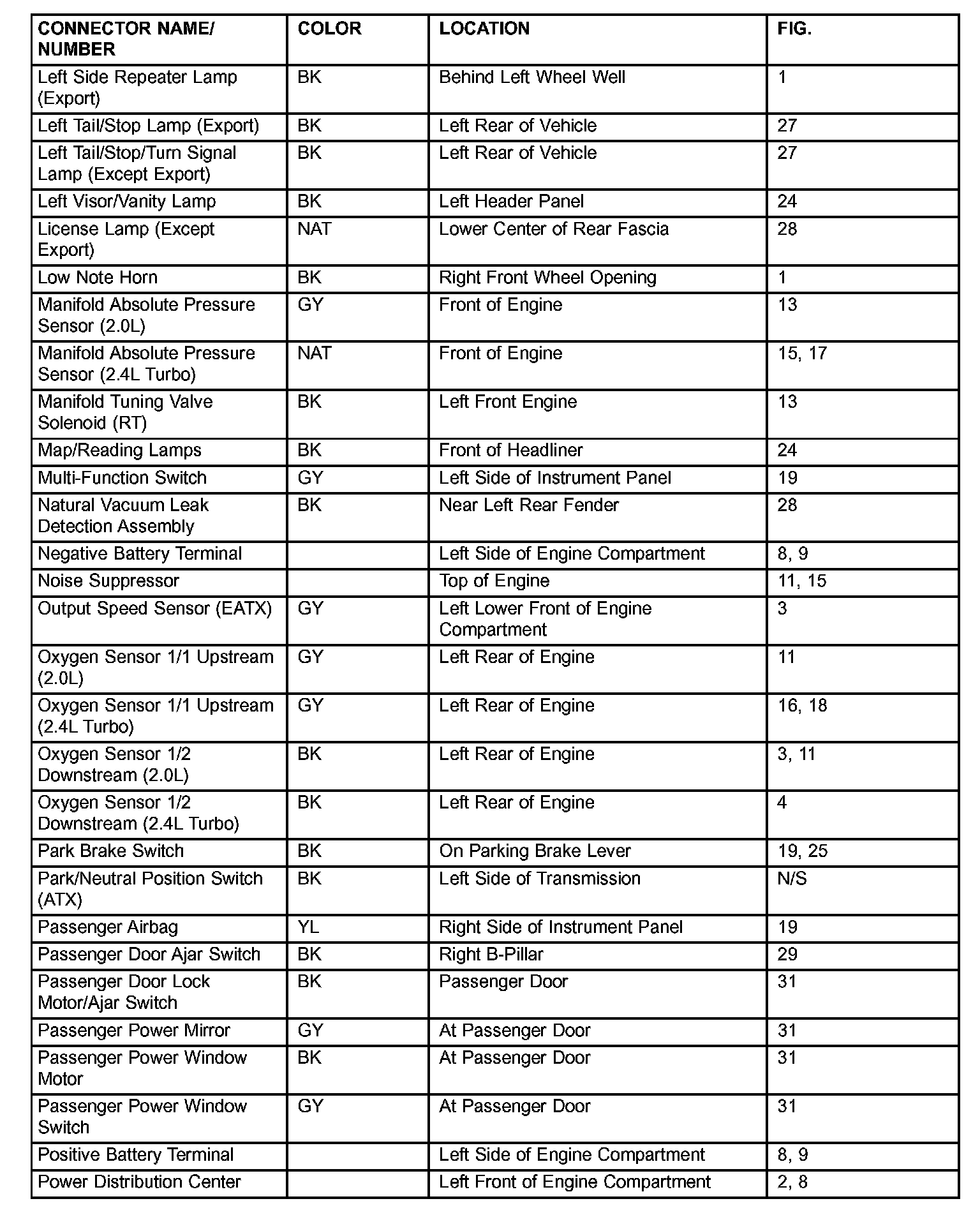

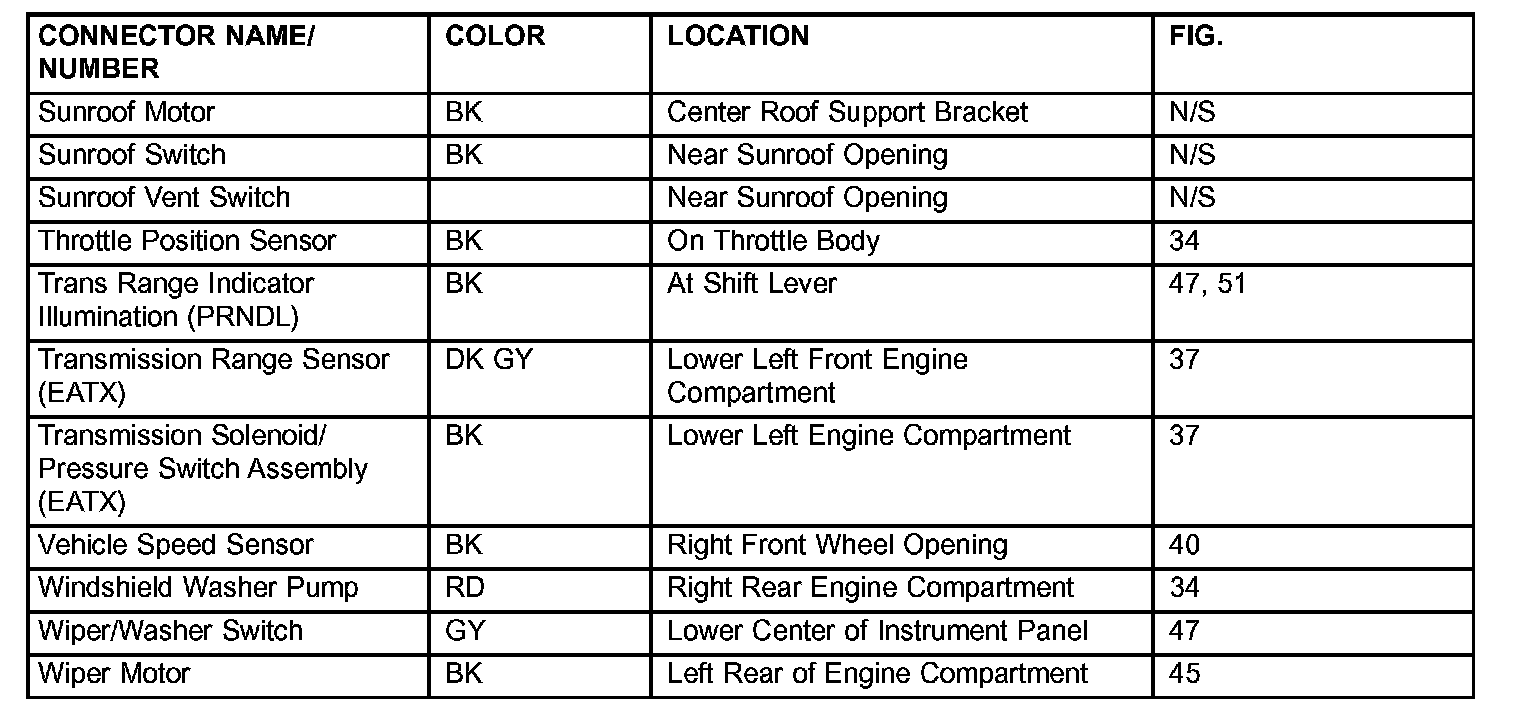

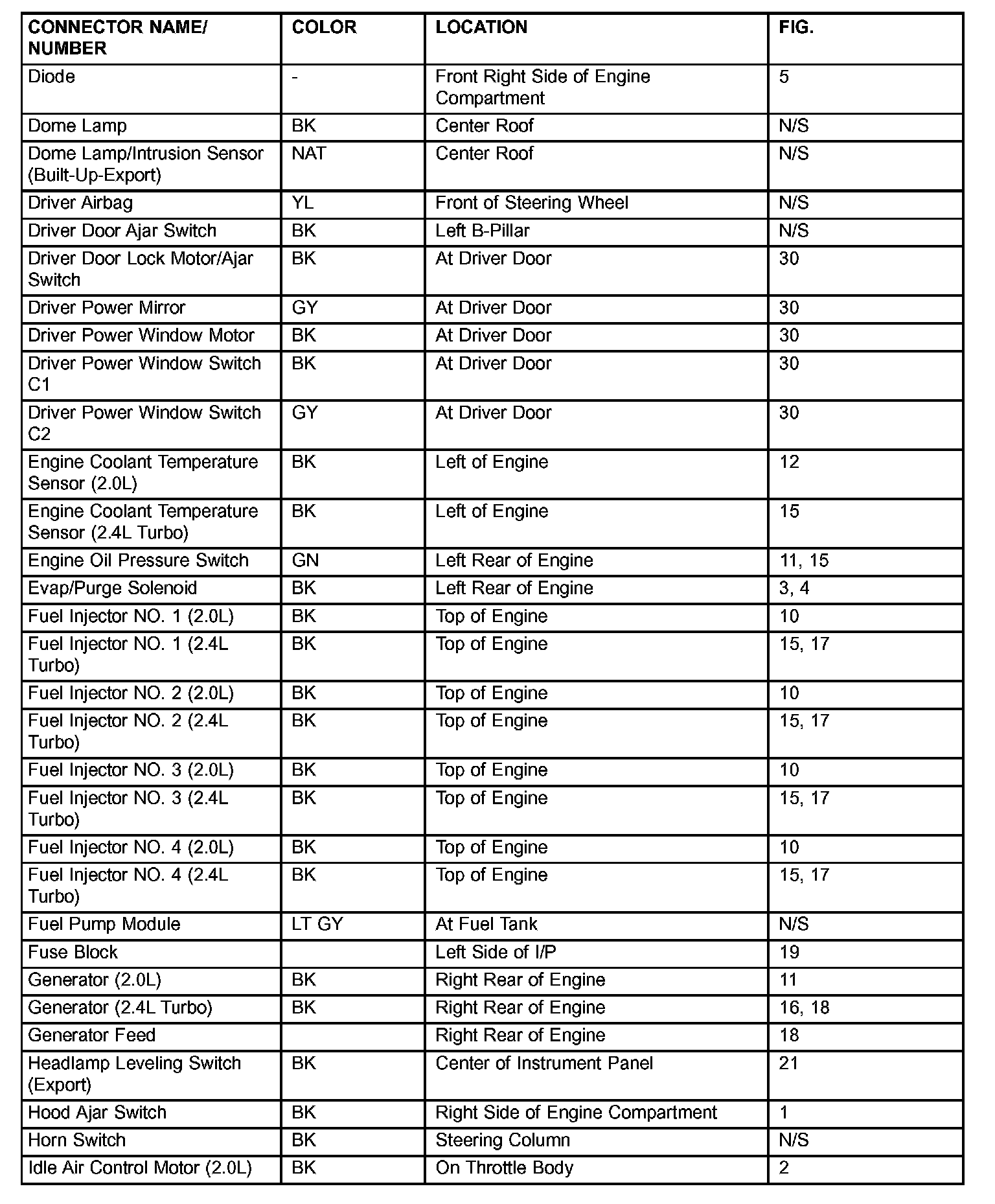

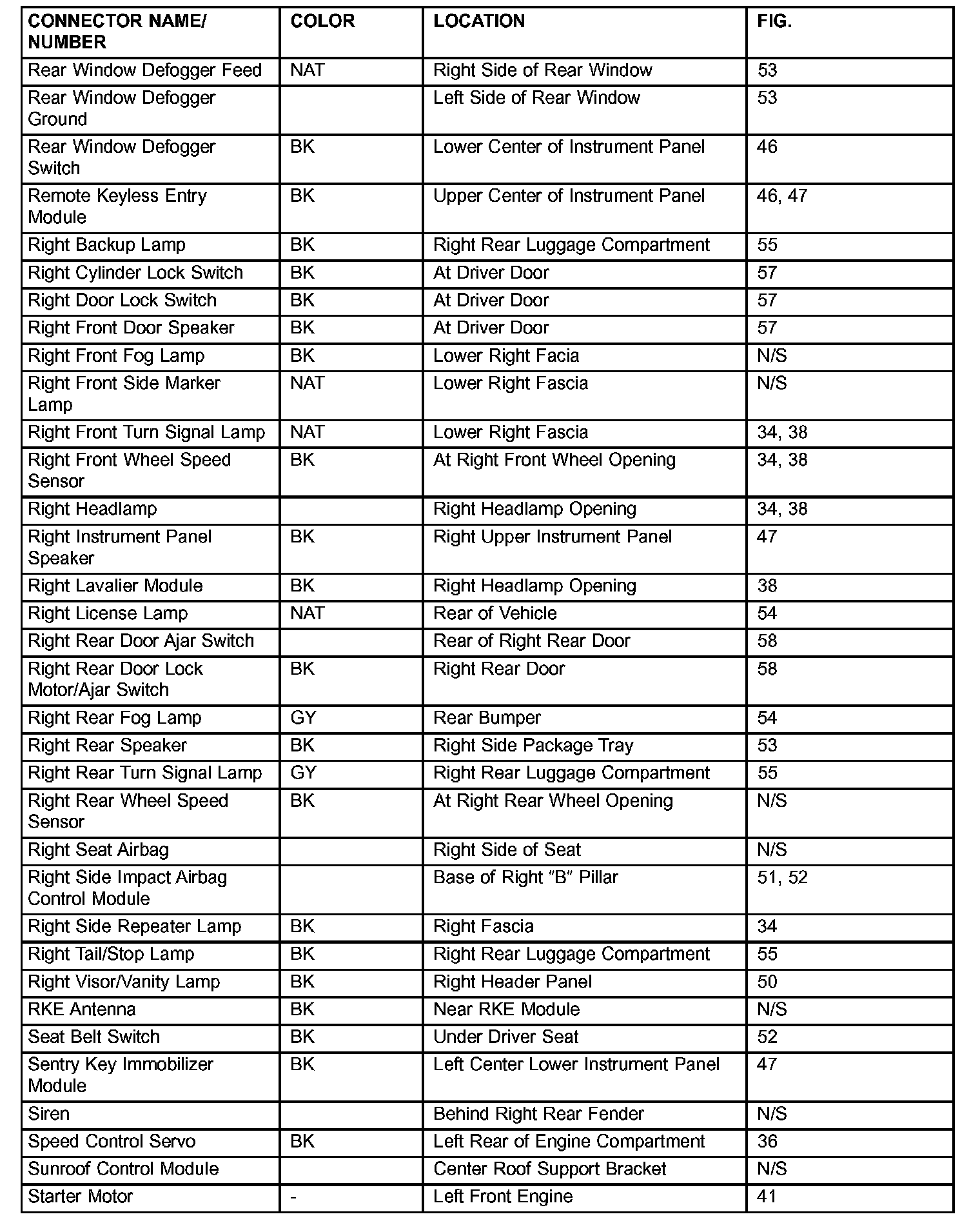

Connector Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

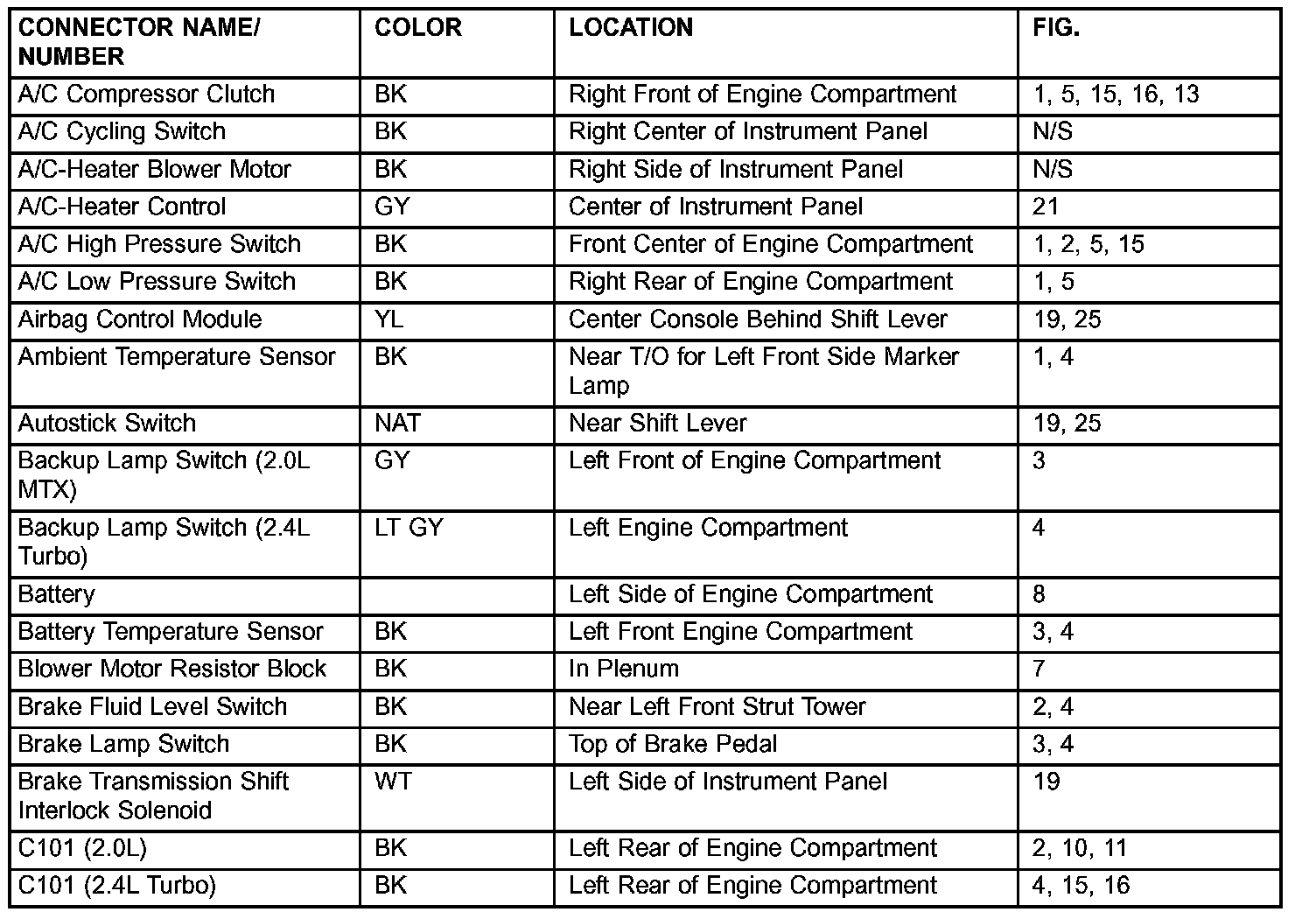

Connector LHD A/c Compressor-c101 (2.4L Turbo):

C103-Decklid Solenoid:

Diode-idle Air Control:

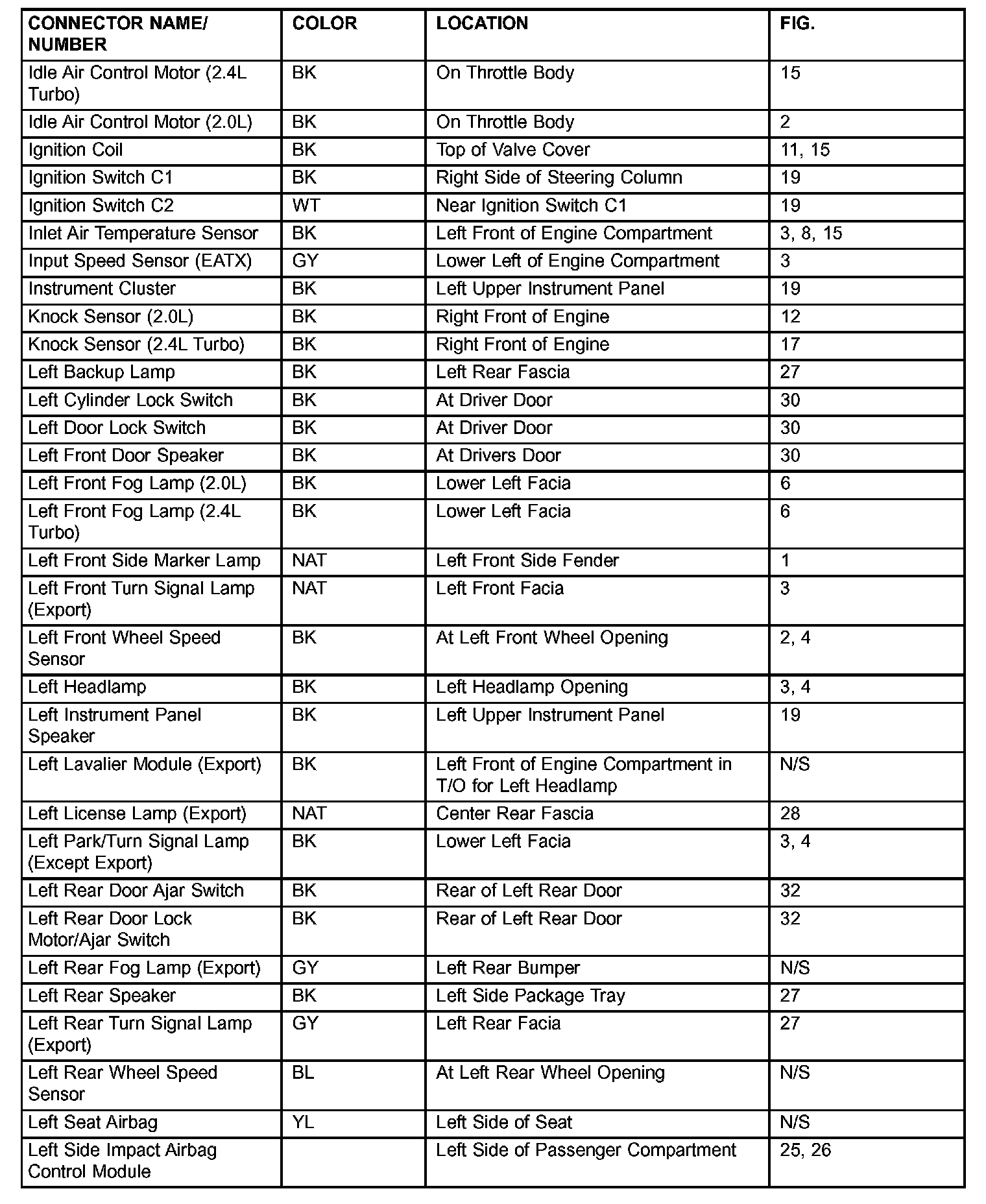

Id - Ls:

Ls - Pwc:

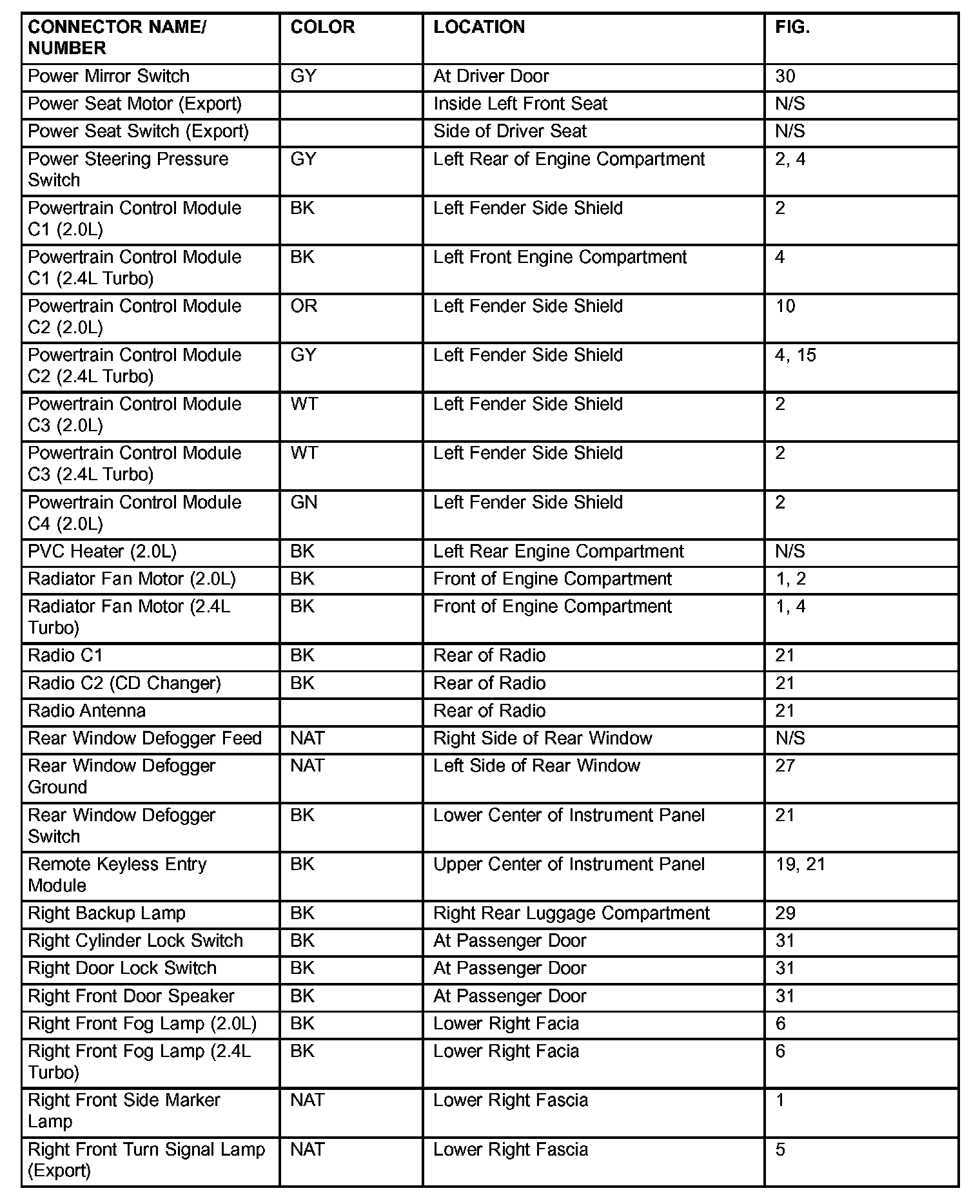

Pwc - Rf:

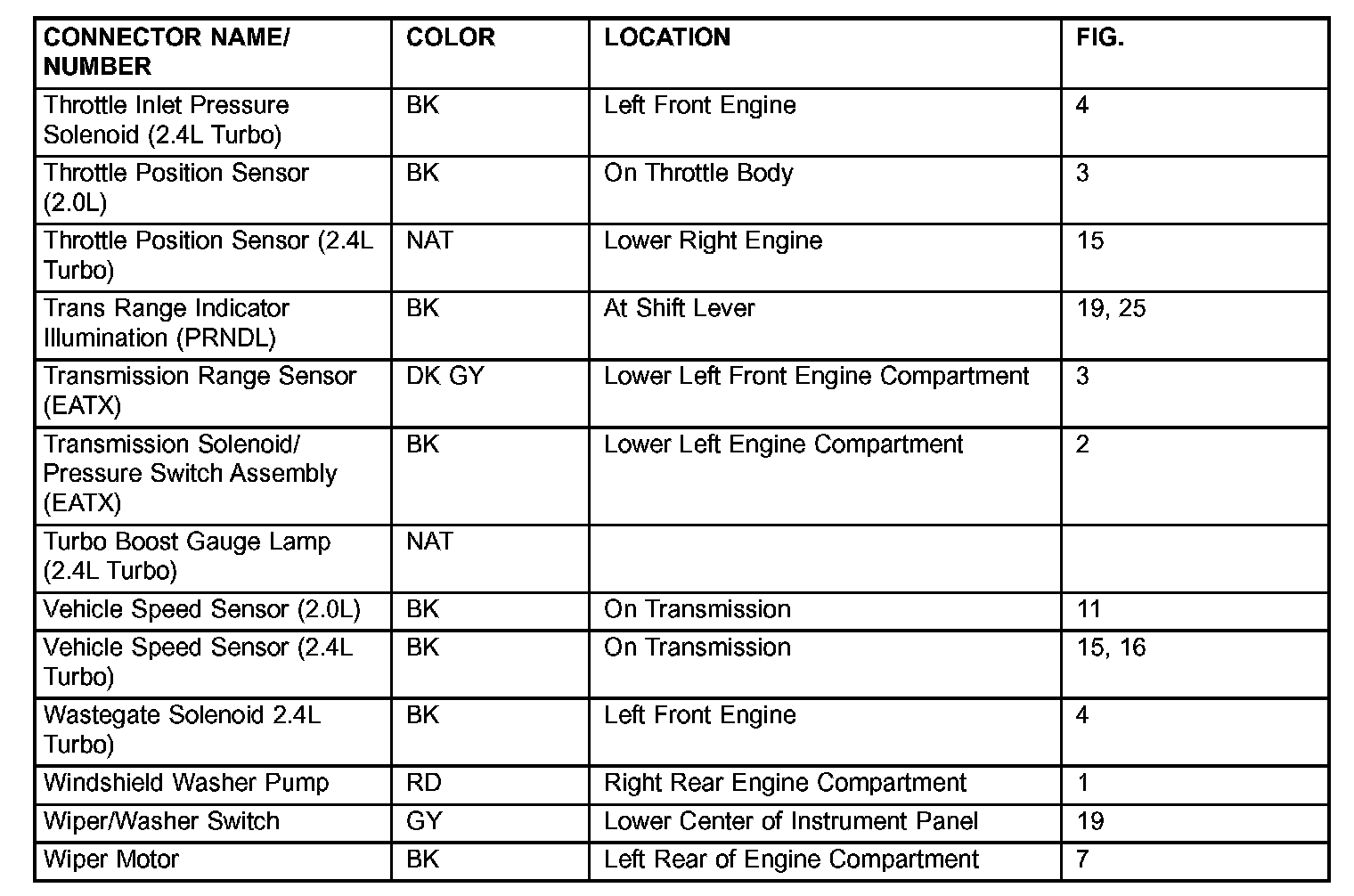

Rf - Th:

Ti - Wi:

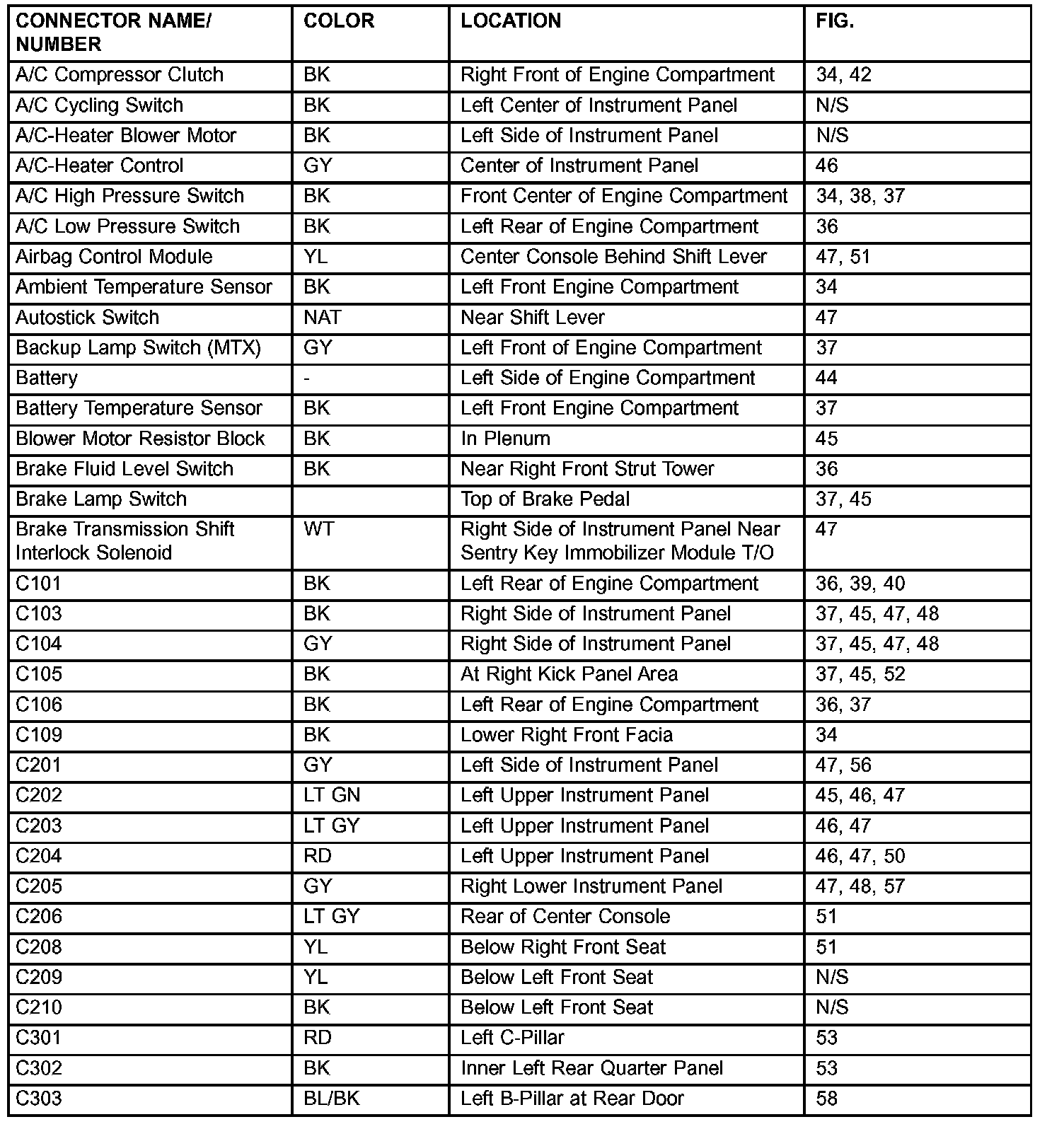

Connector RHD A/c - C303:

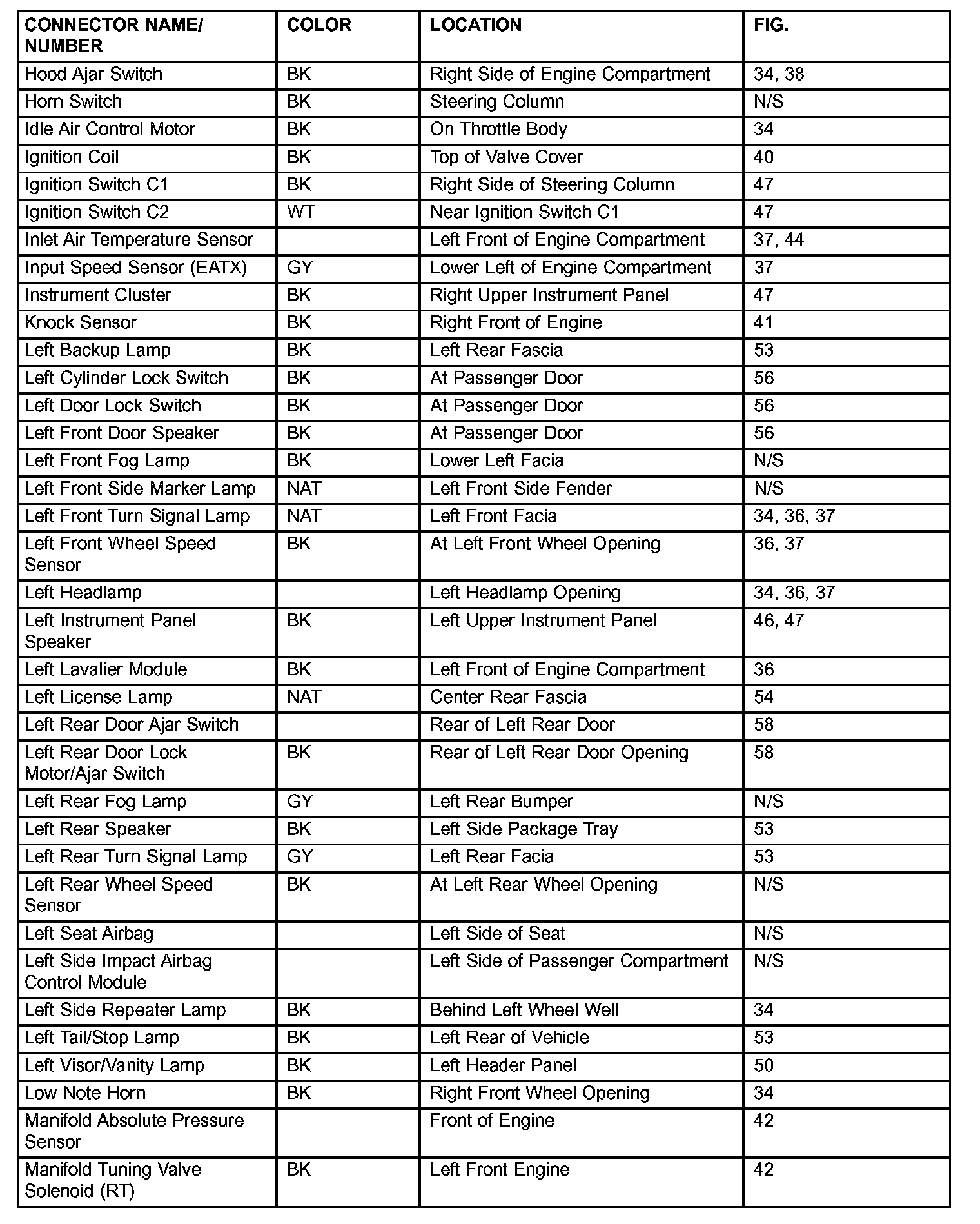

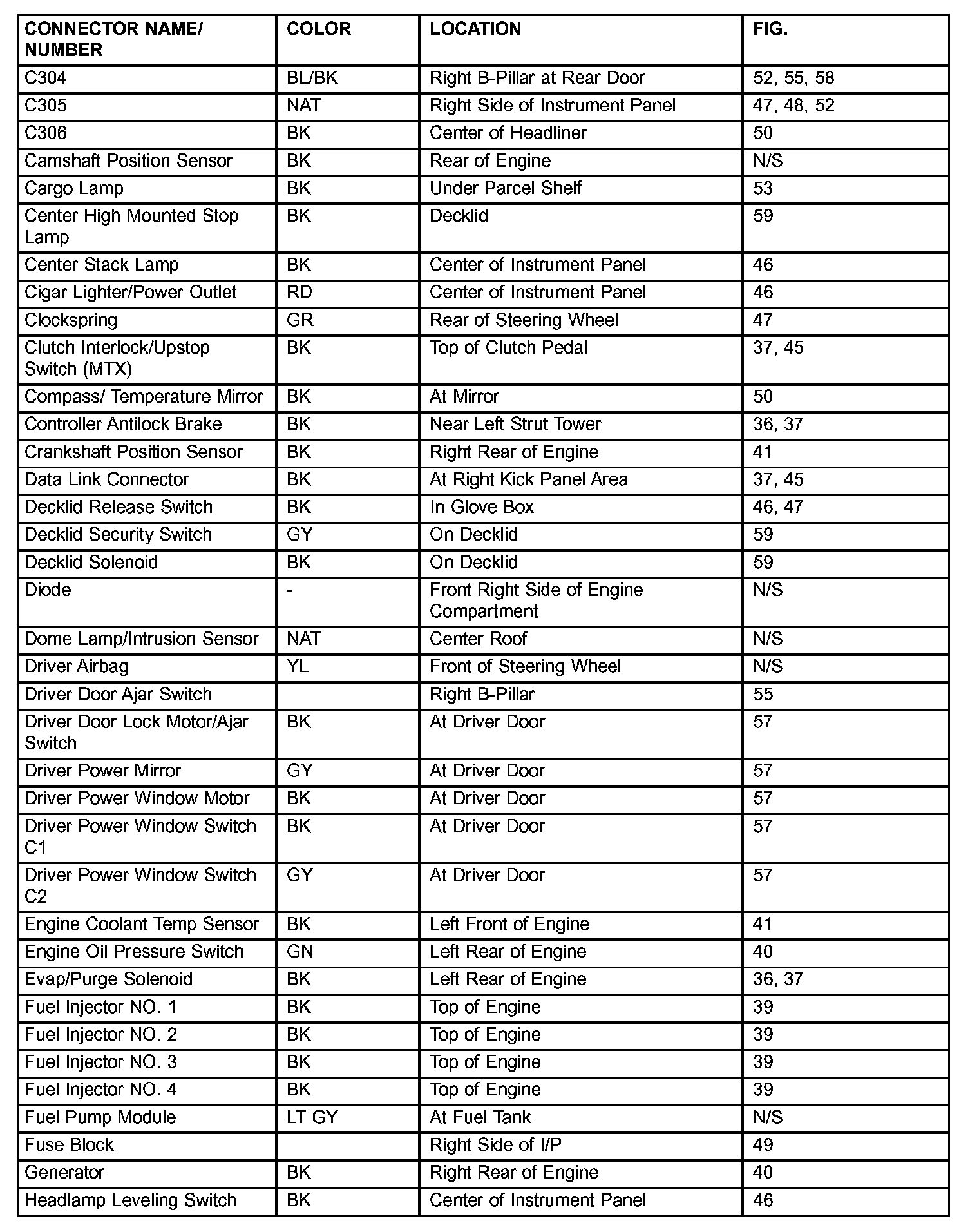

C304 - Hl:

Ha - Mt:

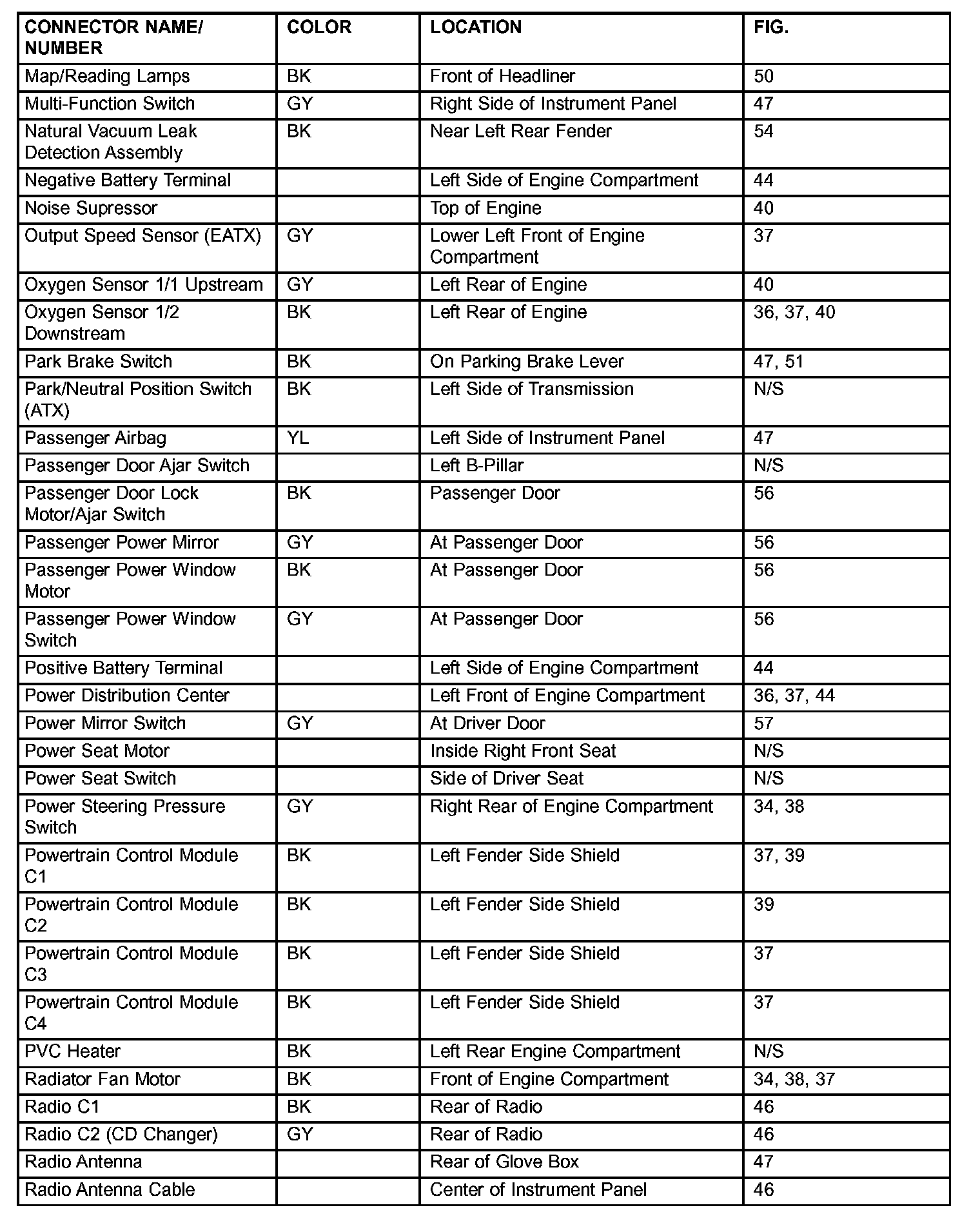

Mr - Ra:

Rw - Sm:

Sm - Wm:
